Trimble S, VX, SPS & RTS Service Manual6 - 140 P/N 57150002, Revision 5.0
F
4 Start tracker
transmitter adjustment
software.
Select Check & adjust
tracker transmitter / Laser
power test
from Tracker in
Maintenance & service.

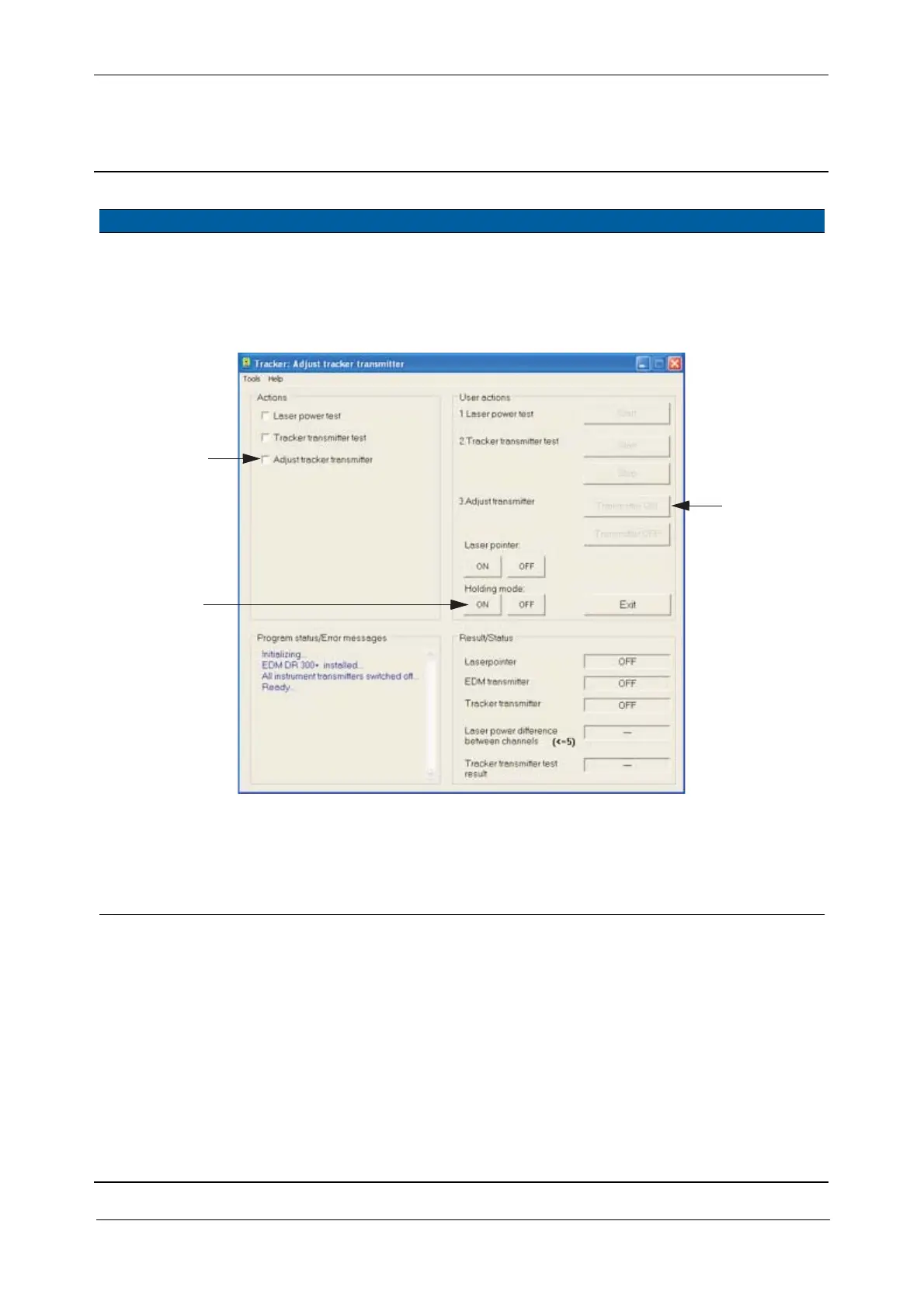

Fig. 6-151 Tracker transmitter adjustment
5 Check Laser pointer
alignment.
See page 6-51 (DR300+ /
DR PLUS) or page 6-90
(High Precision / DR
Standard / DR) for
instructions.
Align Laser
pointer if not
aligned.
Laser pointer is
aligned with tracker
transmitter.
Item Performance Description Result Notes
A
D
C
