Trimble S User Manual

Chapter 6
Adjustment and verification
P/N 57150002, Revision 5.0 6 - 141 Trimble S, VX, SPS & RTS Service Manual
F
6 Start tracker
transmitter
adjustment.
Check transmitter spot
size.
A. Select
Adjust tracker
transmitter
check box,
see Fig. 6-151 on page
6-140 .
B. Aim instrument cross-
hairs or using Laser
pointer to the centre
position of the
alignment target.
C. Click
Transmitter ON
button.
D. Click. Holding mode
ON.
The tracker transmitter spot will appear
on monitor screen, see Fig. 6-153 on
page 6-142 .
The size of the spot has to be e.g. at:
1,5 meter (4,9 ft):
52,4 x 52,4 mm ± 5,2 mm (2,09x2,09 in
± 0,2)
or at 1,2 meter (3,9 ft)
41,9 x 41,9 mm ± 4,2mm (1,65x1,65 in ±
0,17)
Specification: Beam difference is
(2 ± 0,2) deg

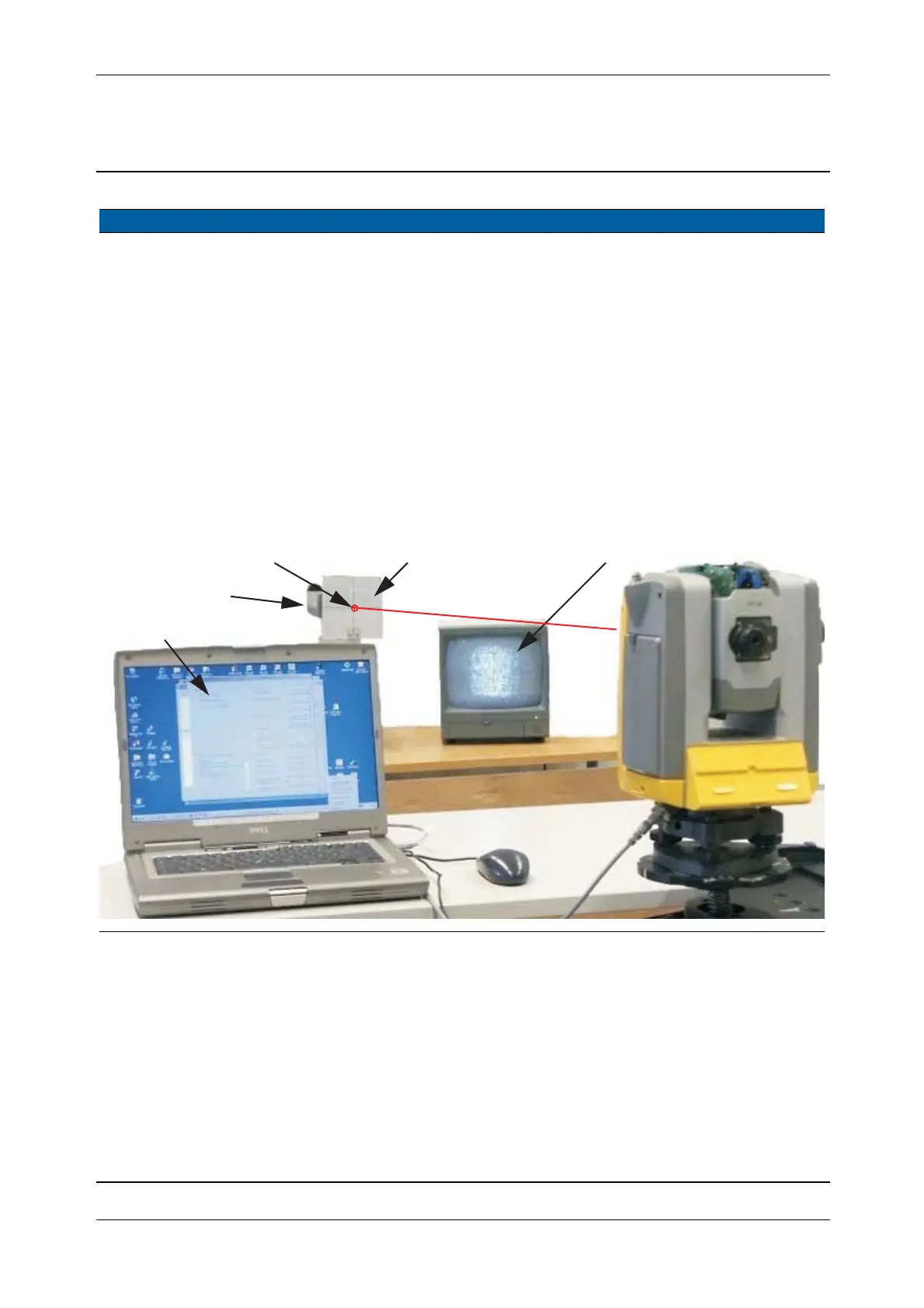

Fig. 6-152 Arrangements for Tracker transmitter adjustment (front view)
Item Performance Description Result Notes
Alignment target
TSS
Tracker transmitter spotLaser pointer spot
IR - Camera
