Chapter 6
Adjustment and verification
Trimble S, VX, SPS & RTS Service Manual6 - 146 P/N 57150002, Revision 5.0
F

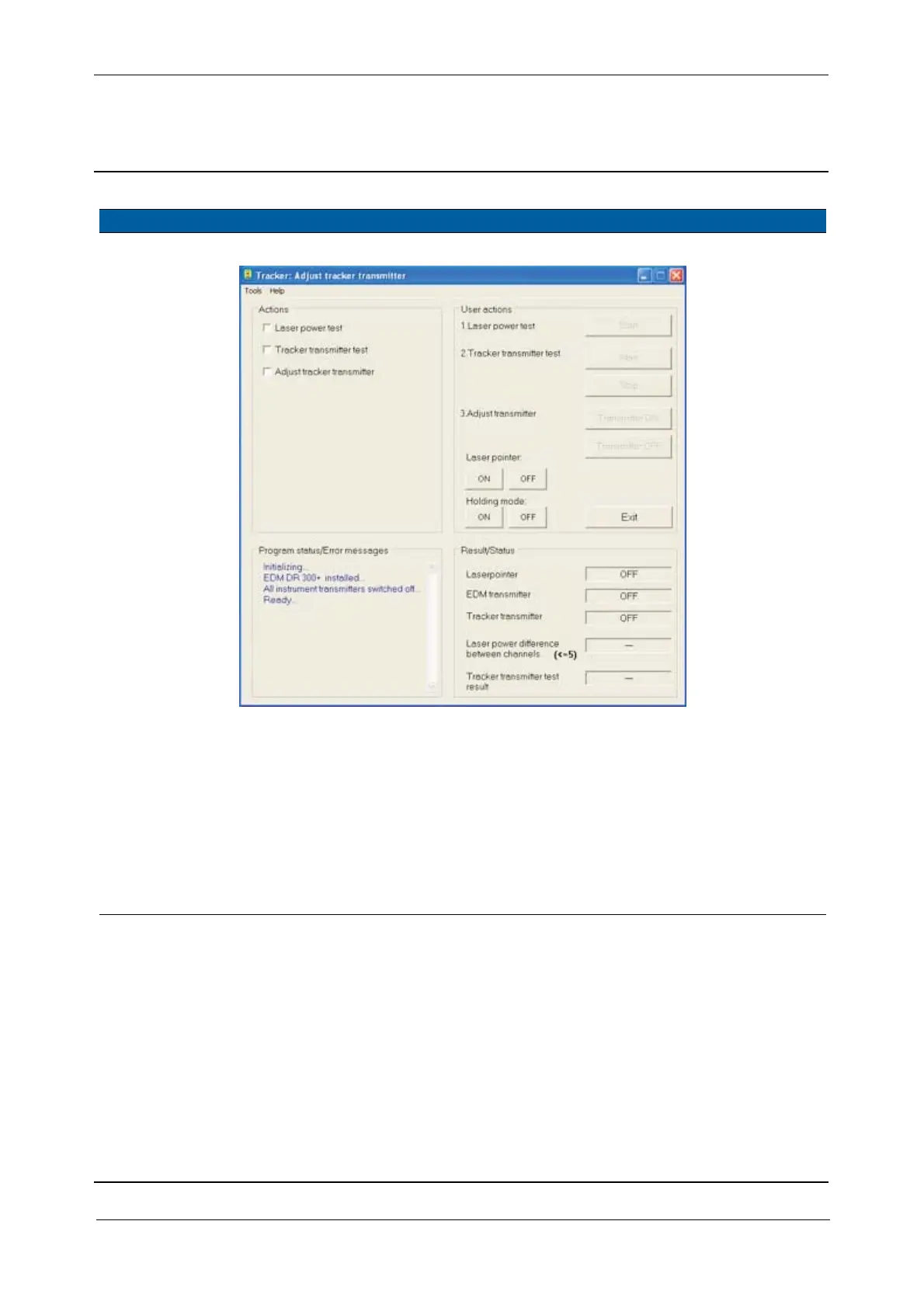

Fig. 6-157 Laser power test
3 Laser power test. A. Select
Laser power test
check box, see Fig. 6-
157 on page 6-146 .
B. Click
Start button.
C. Aim towards a prism at
4 m distance, the test
will run automatically.
D. The result is displayed,
see Fig. 6-158 on page
6-147 .
5
The test must be
successful
before
proceeding to
tracker
transmitter
alignment test.
This test checks the
energy differences
between the 8
transmitting tracker
channels. The
difference must be
lower than 5.
