Trimble S User Manual

Chapter 6
Adjustment and verification
Trimble S, VX, SPS & RTS Service Manual6 - 176 P/N 57150002, Revision 5.0
F

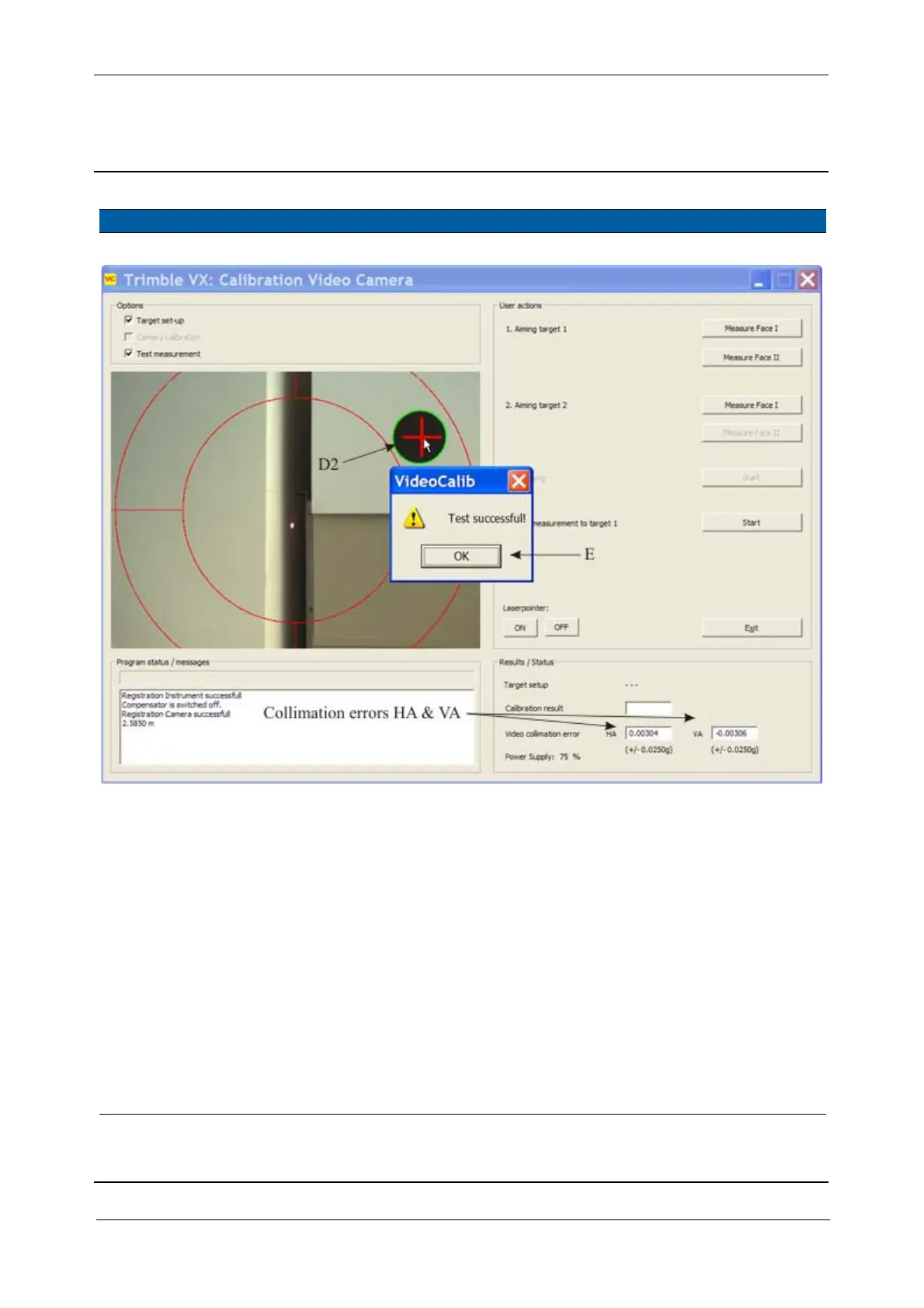

Fig. 6-181 Test measurement result
8 Troubleshooting video
collimation test.
Video collimation
errors not in
specification.
1) Check HA/
VA-collimation
error for the angle
system.
2) Check
focusing of
Video-camera.
3) Repeat Video-
camera
calibration and
check the point
detection in the
scanning process
and the
calibration result.
Point detection is
marked always with a
green circle around
the black dot, see Fig.
6-181 on page 6-176
item D2.
Item Performance Action Result Notes
