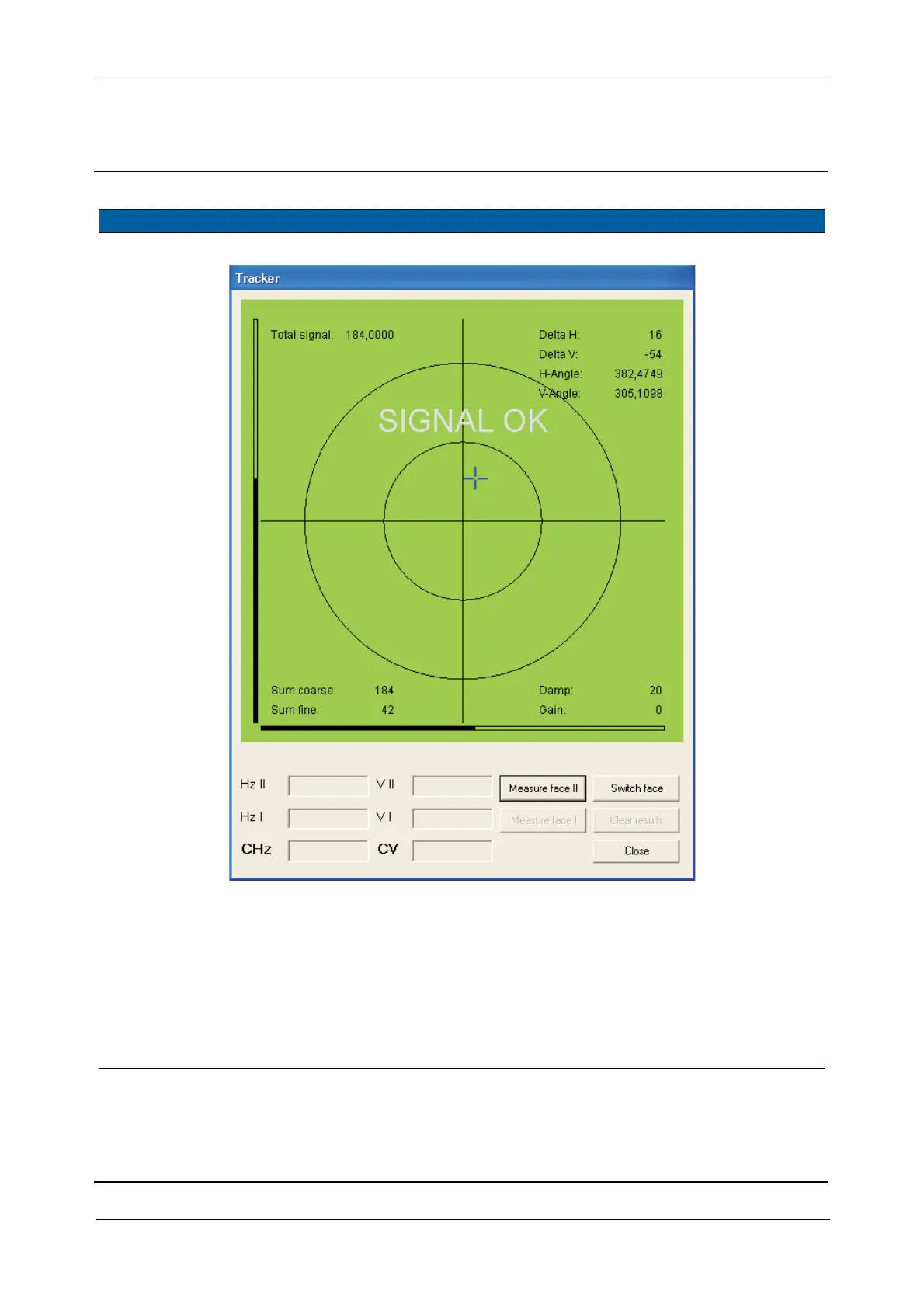

Fig. 6-193 Tracker test bench software
10 Tracker Long Range
alignment function
check.
Check:
1. EDM transmitter
alignment.
2. TRacker receiver
alignment.
See page 6-189 for
more information.
11 Exit software. Click
Close to close Test
bench software and click
Exit.
Item Performance Description Result Notes
