6. EM GUI orientation

6.45 Settings Menu > Web App area > Cont act us

General

Displays contact information for the Barco tech supp ort.

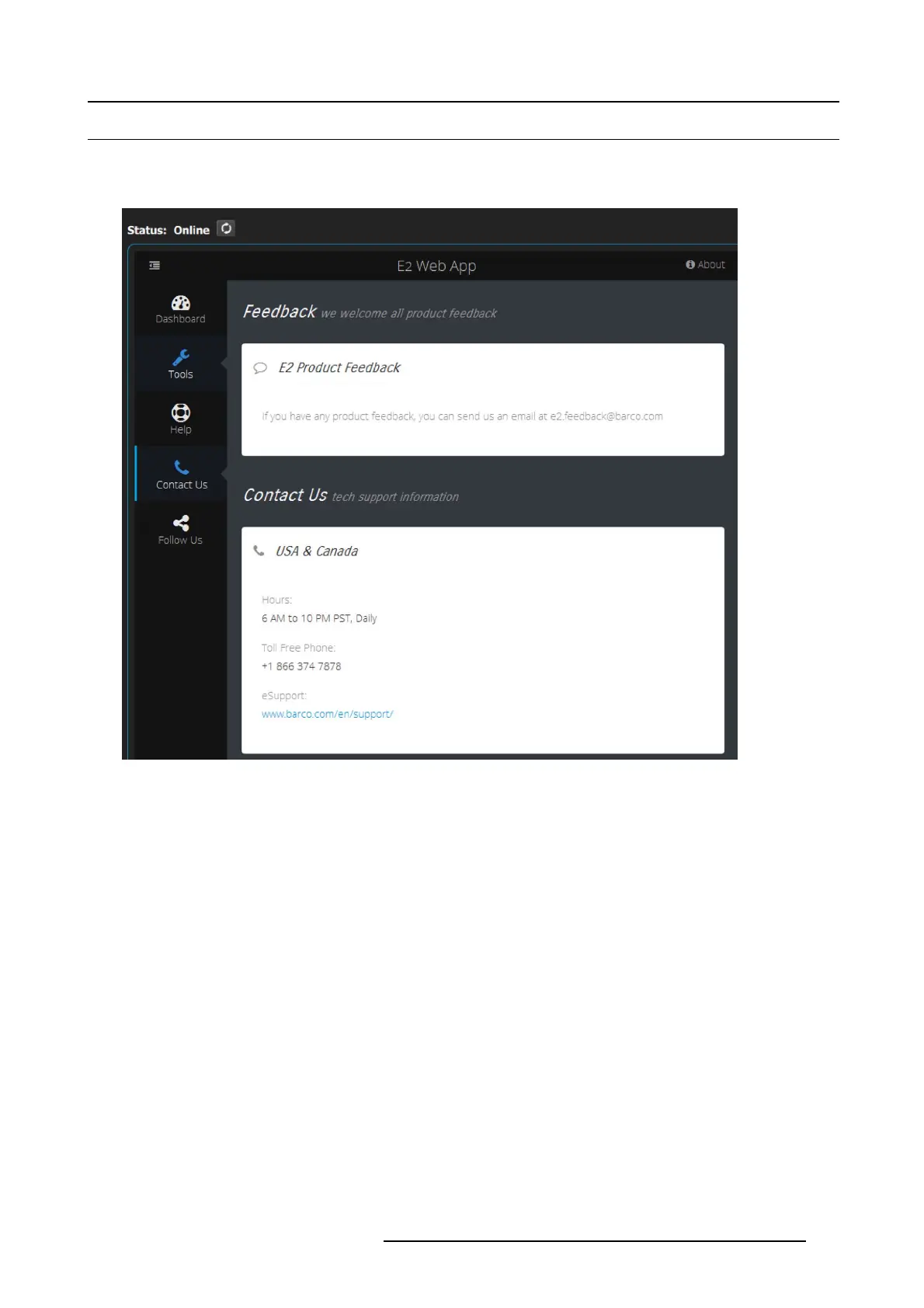

Image 6-105
