13. E2 Maintenance
13.24 USB Cable

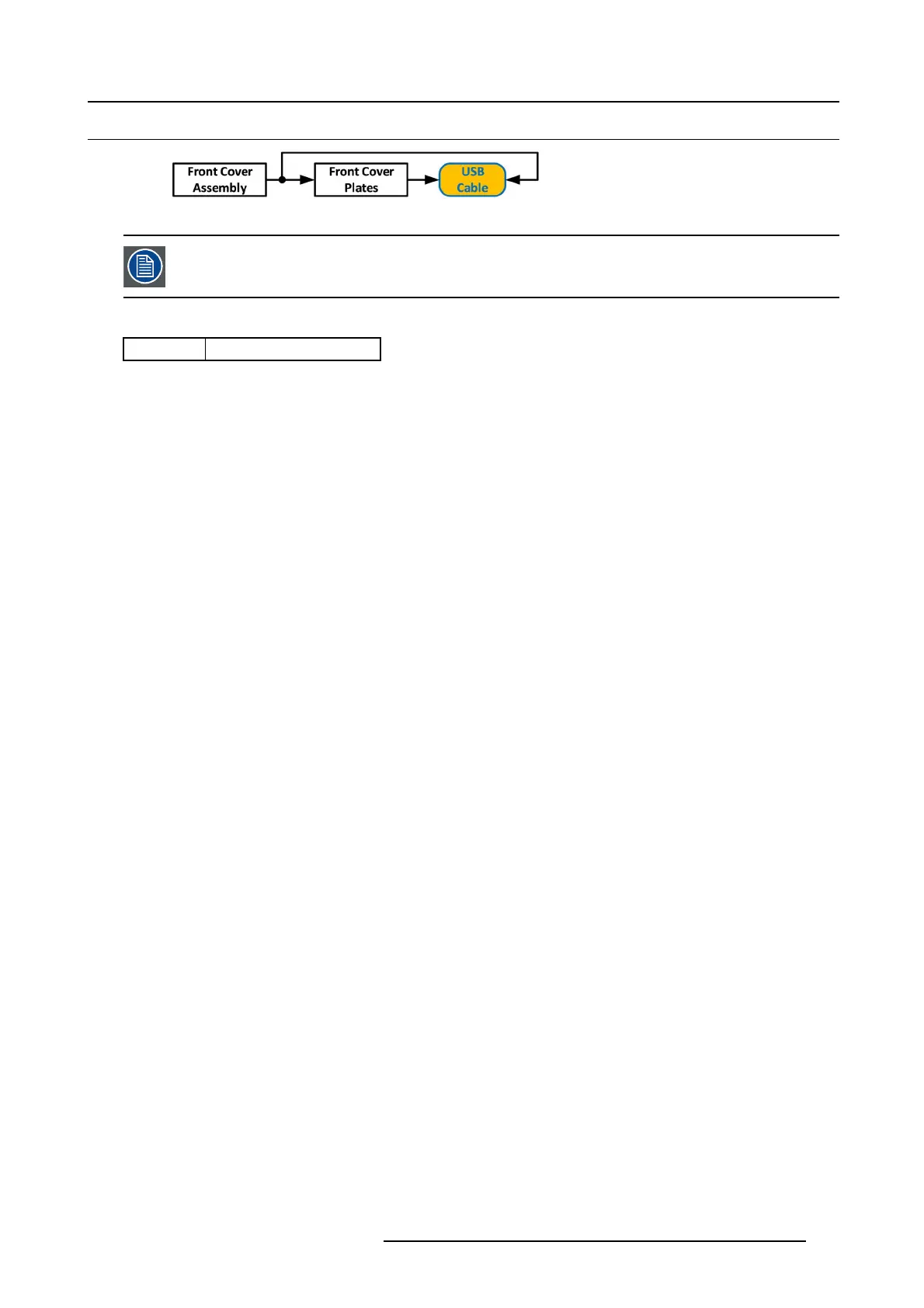

Image 13-60
The USB cable is connected to t he US B extension cable (the cable that is connected to the System -Power
board). This procedure provides instructions how to disconnect it from both sides of the cable.
Concerned parts
R767269K
Cable K it S et
Necessary tools
• 1 x Phillips Screw driver #2
• Hex Sc re w driver
• Nut socket.
How to remove the USB cable
1. Completely detach and pull the Front Cov er assembly away from the unit (refer to the related proc edure).
2. Disconnect the USB cable from the U SB Extension cable (the other side of the cable is conne cted to the System-Power board).
3. Disconnect the VFD and Front Ke yboard Panel cables from the VFD assembly and Front panel boards.
4. Place the Front panel enclosure face down on a flat area.
5. Use the n ut socket to rem ove the 16 nuts (6-32) that attach the first plate to the asse
mbly.
6. Remove and put aside the 16 spacers situated under the plate y ou just removed.
R5905948 EVENT MASTER DEVICES 17/07/2017
389
