Barco S3 User Manual

14. S3 Maintenance
14.32 3RU Fan Cable

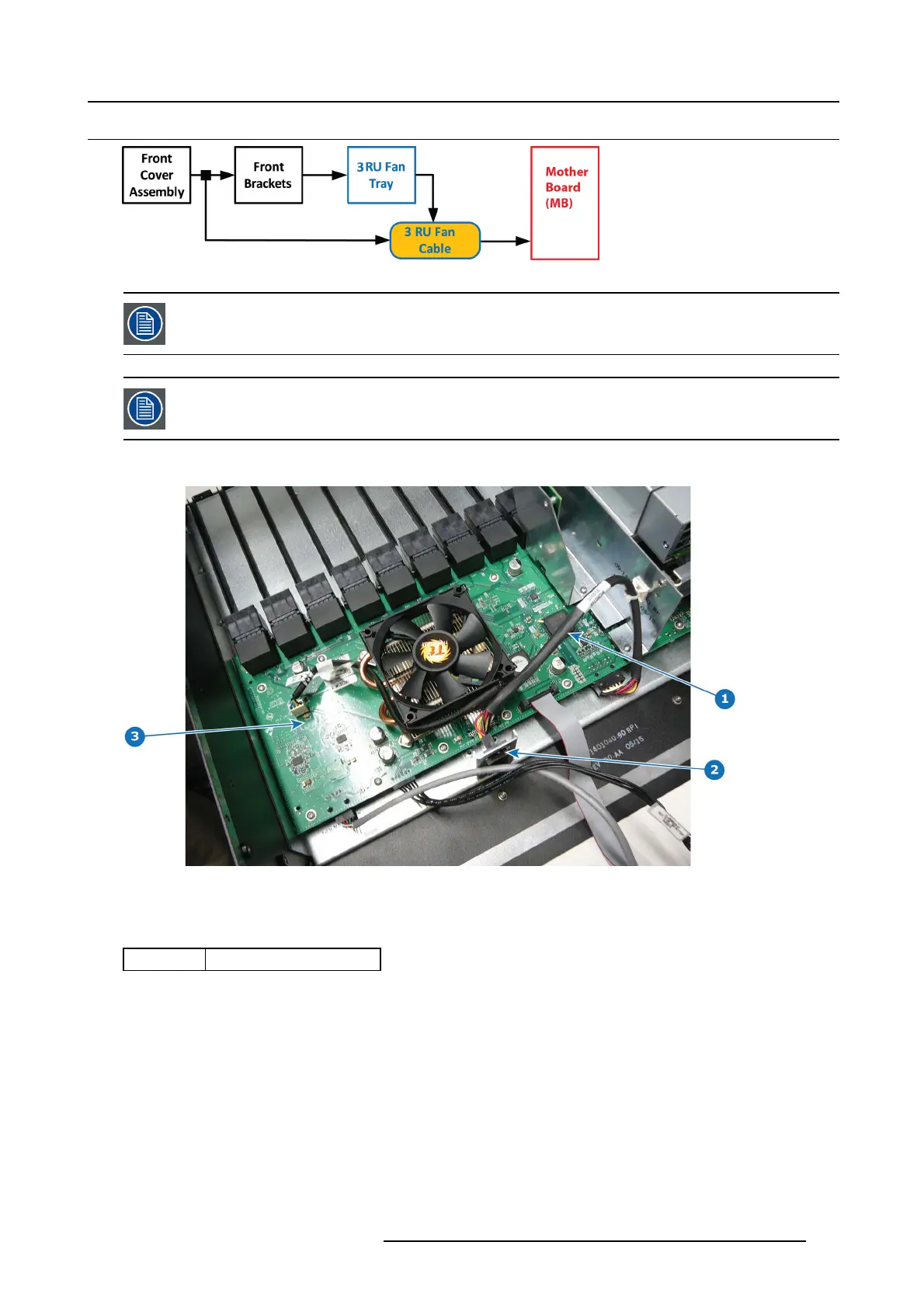

Image 14-86
The 3RU cable asse m bly provides power to the 3RU fans from the Mo therboard.
One side of the cable is attached to a metal bracket t hat is accessible after the 3RU fan tray is remov
ed. The
other side of the cable assem bly co nnects to t he Mo therbo ard.
Overview
Image 14-87
13RUFancable
2 3RU Fan connector
3 Motherboard
Concerned parts
R767283K S 3 C able Kit Set
Necessary tools
• 1 x Phillips Screw driver #2
• Hex Sc re w driver
How to remove the 3RU Fan cable
1. In order to access the motherboard, follow the steps detailed in the other procedures to remove the Front Cover Assembly, F ront
brackets and 3RU Fan Tray.
2. Locate the 3RU ca ble connector that is exposed afte r the 3RU fan tray is removed. The connector is attached on a metal bracket
that is vertically m ounted in the chassis.
R5905948 EVENT MASTER DEVICES 17/07/2017
469
