4. Hardware orientation
4.6 Quad Channel DisplayPort Out put Card
General
The qu ad channel DisplayPort output card has four 20-pin DisplayP ort c onnectors that can provide a DisplayPort signal.

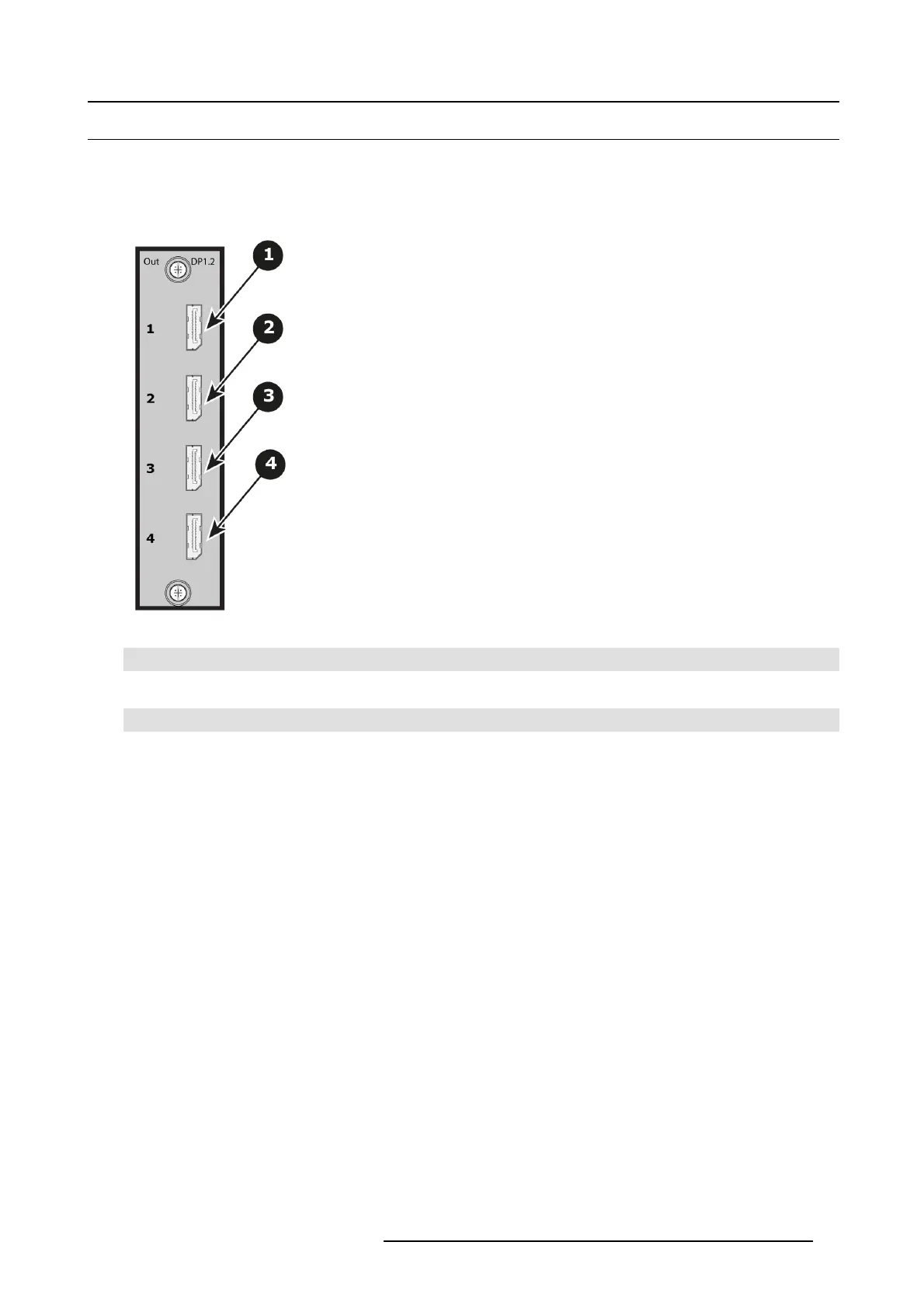

The figure below illustrates the DisplayPort output card’s rear panel connectors:
Image 4-11
Quad Channel DisplayPort Output Card Rear Panel
1 DP connector — DP 1
2 DP connector — DP 2
3 DP connector — DP 3
4 DP connector — DP 4
Features
• Four channels of D isplayPort video output, each on a full-size DisplayPort external connec tor
• Provides up to four (4) independent signals
