10. Controller orientation

10.2 EC-30 front panel overview

Overview

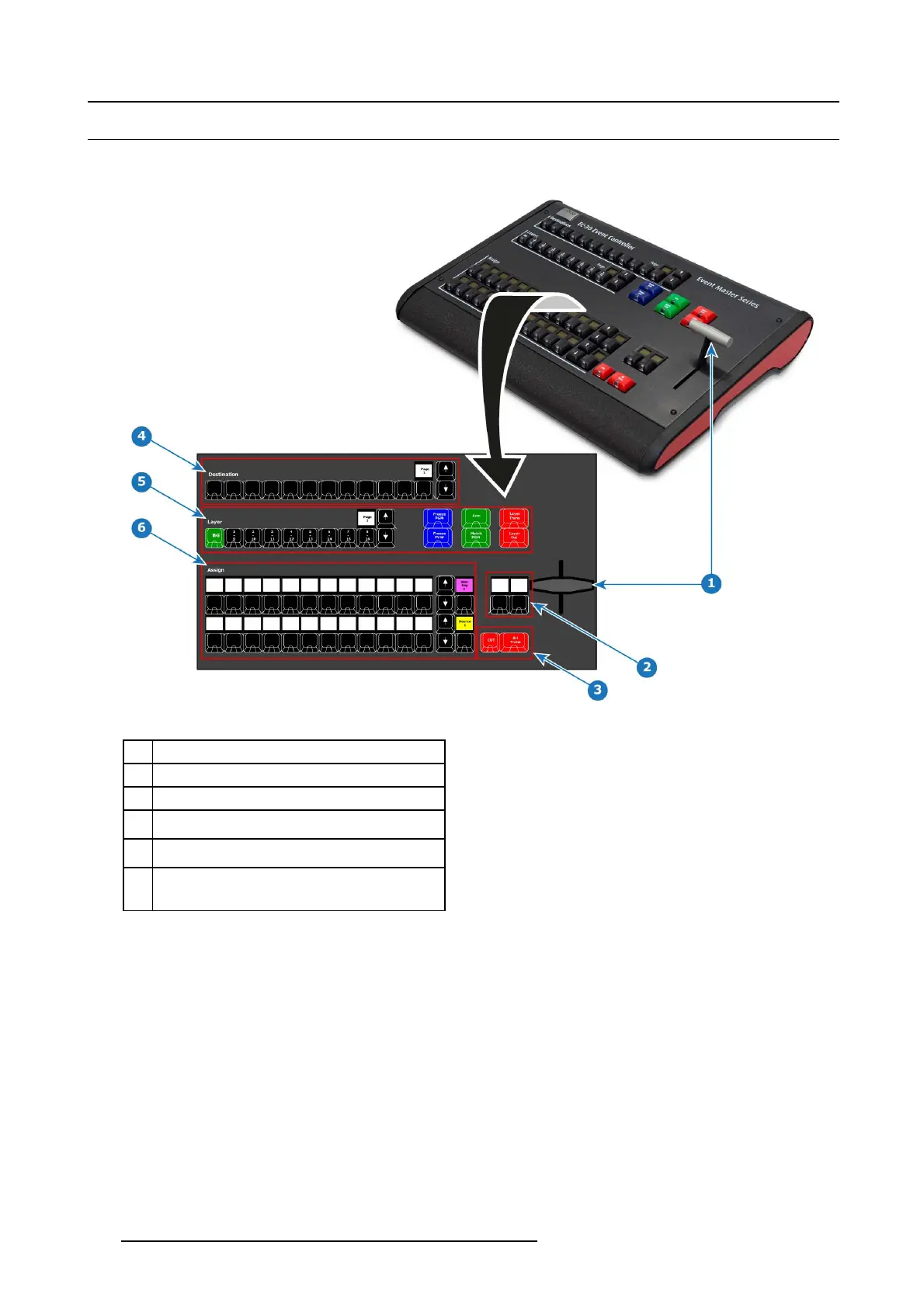

Image 10-2

EC-30 front panel overview

1 T-bar

2 Us er-assignable contextual display buttons

Cut and All Trans buttons

4 12 Destination buttons and a contextual display

showing page of Destinations

5 Lay er buttons and a contextual display s howing

page of Layers

6 A ssign buttons in two identical rows that c an hos t

multiple selections and a contextual display showing

page of the Assign button row

288 R5905948 EVENT MASTER DEVICES 17/07/2017
