Barco S3 - Rear Rack Ears

To Next Page

To Previous Page

14. S3 Maintenance

14.18 Rear Rack Ears

Concerned parts

R767282K

Rear Connector protector

Necessary tools

1 x Phillips Screwdriver #2

How to remove Rear Rack-Ears

1. Remove the eight pan head screws (8-32x.31), four from eac h side, to detach the rear rack ears and connector protectors from

the unit.

Note: You don’t need to remove the rear rack ears to access any other part of the unit.

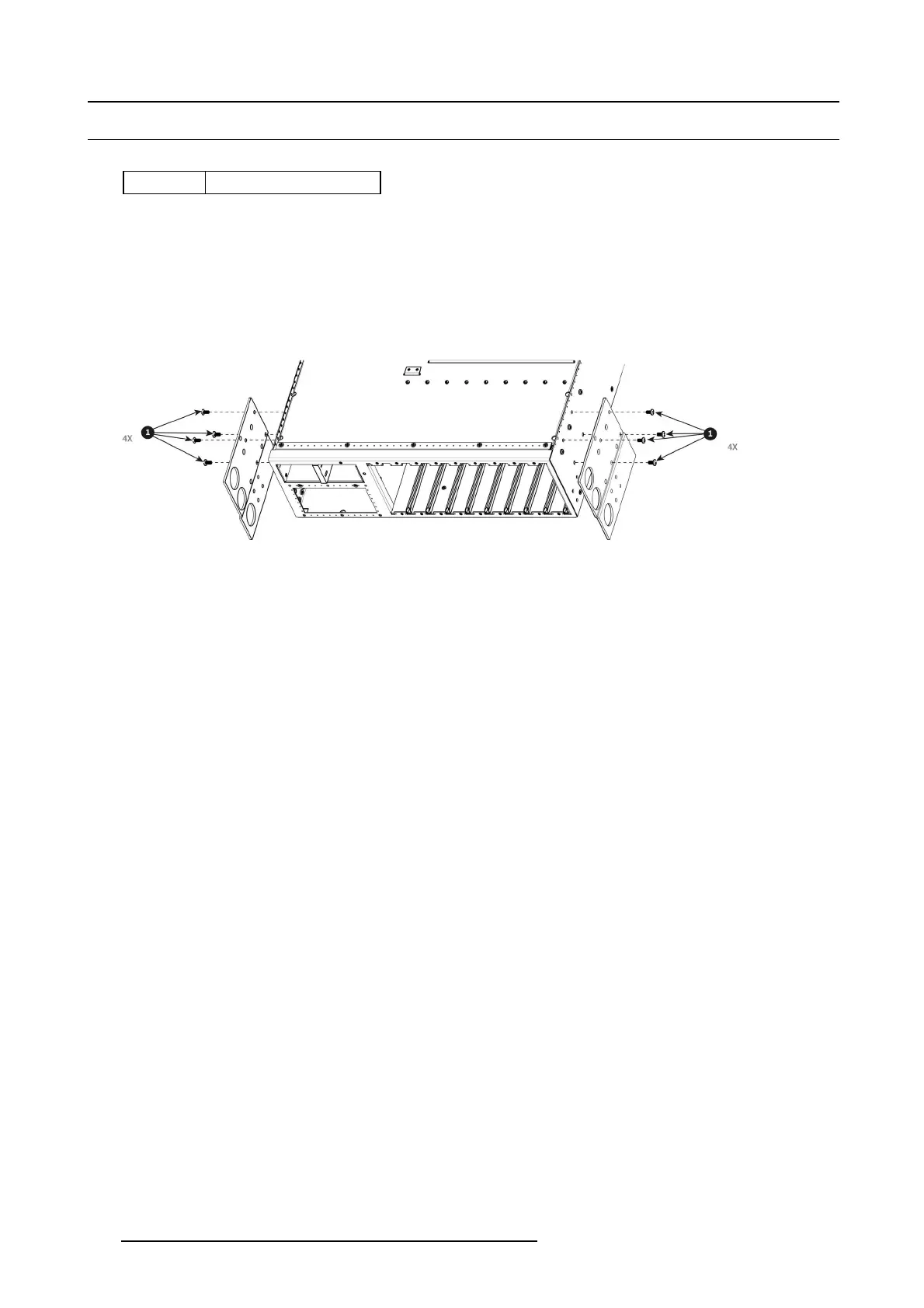

Image 14-44

How to install Rear Rack-Ears

To install the Rear Rack-Ears follow the sam e procedure in the reverse order.
