Barco S3 - VFD Display Filter

14. S3 Maintenance
14.13 VFD Display Filter

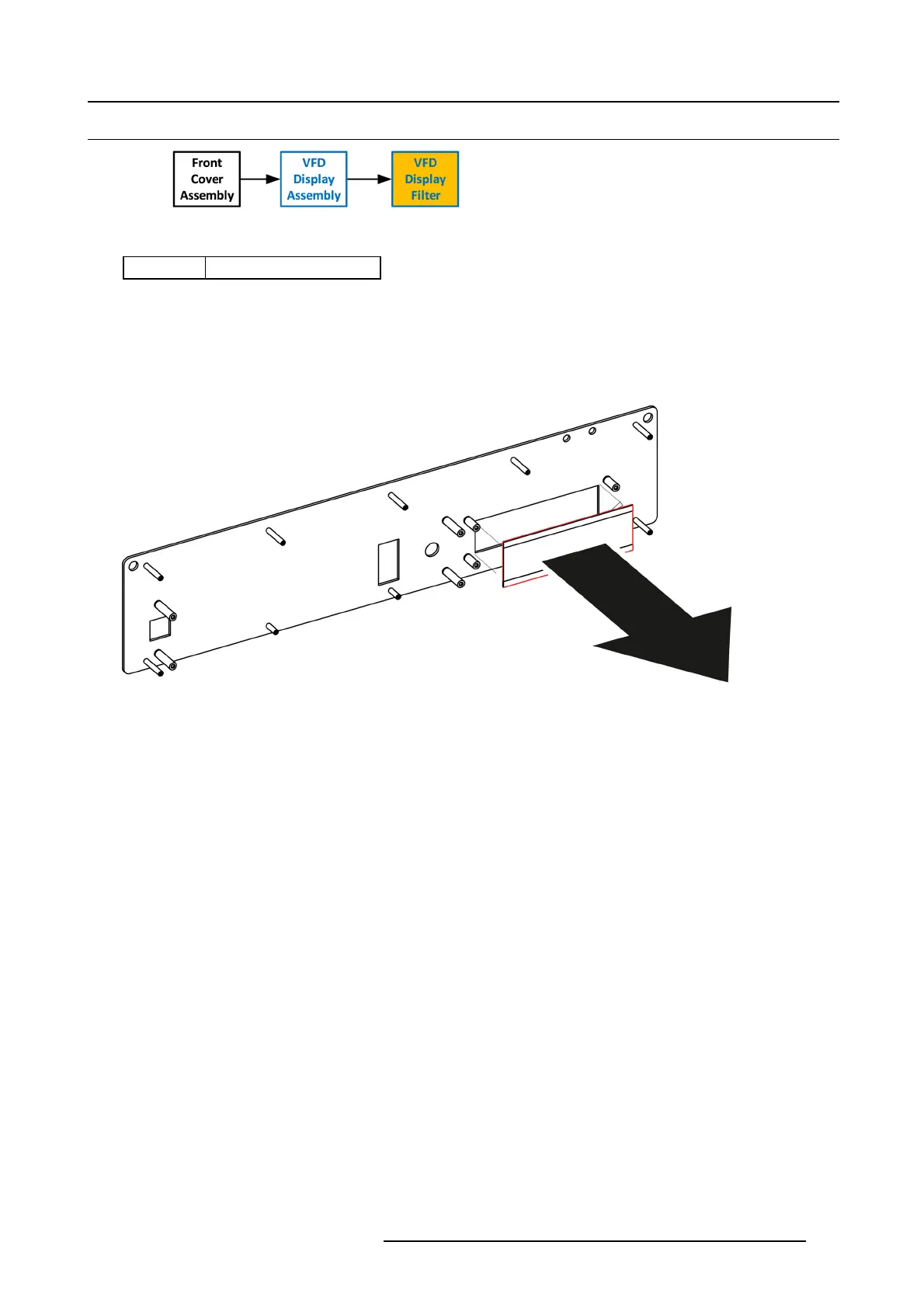

Image 14-29
Concerned parts
R767246K V FD Display Filter
Necessary tools
None.
How to remove the VFD Display Filter
1. From the front of the unit push hard on the filter until it detaches from the unit.
Image 14-30
2. Use alcohol to clean the adhesive residue that held the filter to the metal plate.
How to install the VFD Display Fil ter
1. Remove the protective film from the front of the filter and releas e the liner from the tape.
2. Press firmly the filter into the metal plate.
