Barco S3 User Manual

13. E2 Maintenance
13.15 VFD D isplay Assembly
Image 13-36
Before you proceed removing the VFD Display m ount you need to rem ove the Front Cover Assemb ly as o ut-
lined in the related procedure
Concerned parts
R767241K V FD Display Assembly
Necessary tools
1 x Phillips Screwdriver #2
How to r emove the VFD Display Ass embly
1. Turn the Front Cover over and remove the four screws (4-40X.25) that sec ure the VFD display assembly to the front panel mount.

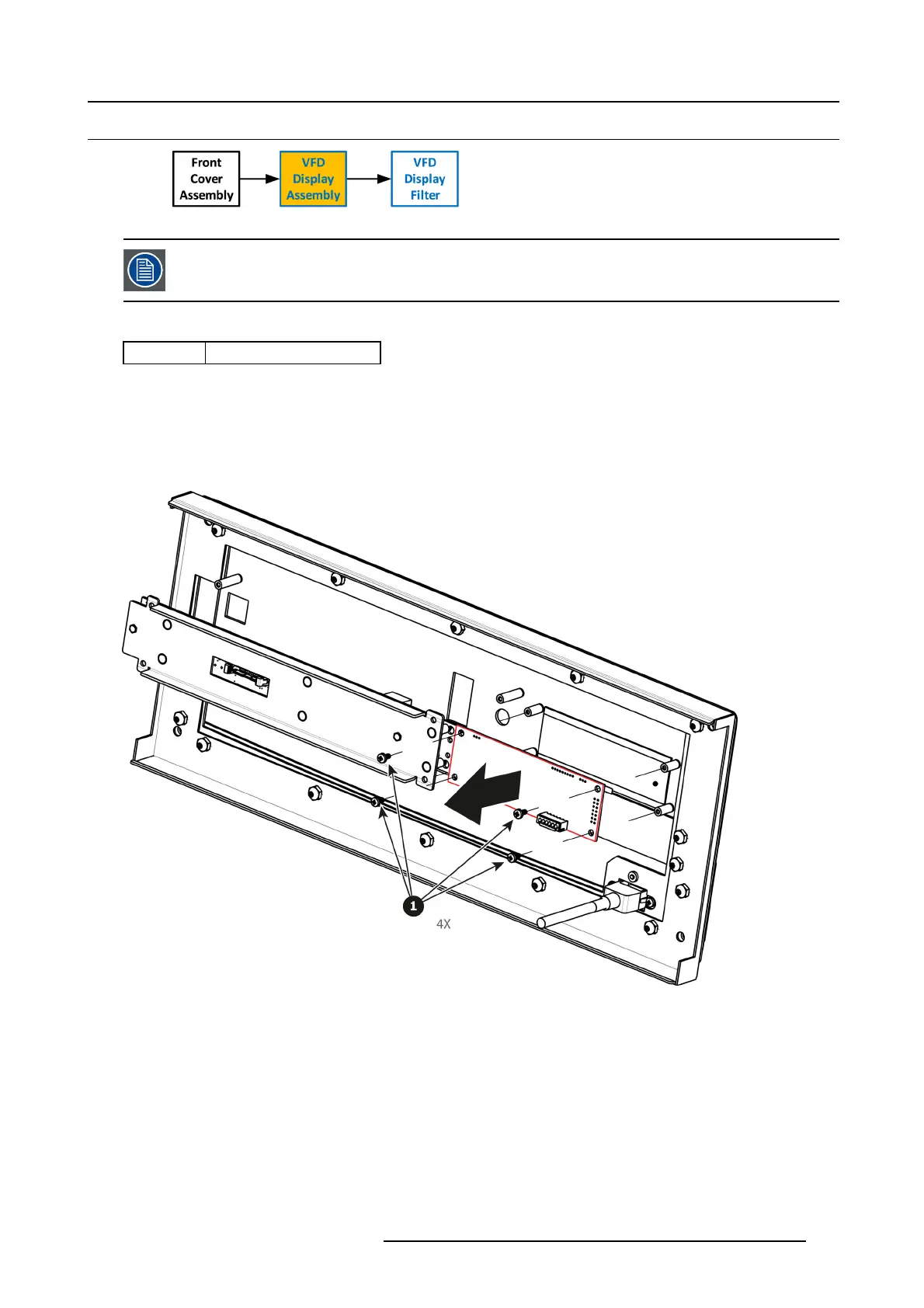

Image 13-37
How to ins tall the VFD Display Assembly
To install the VFD Display As sem bly follow the same procedure in the reverse order.
R5905948 EVENT MASTER DEVICES 17/07/2017 371
