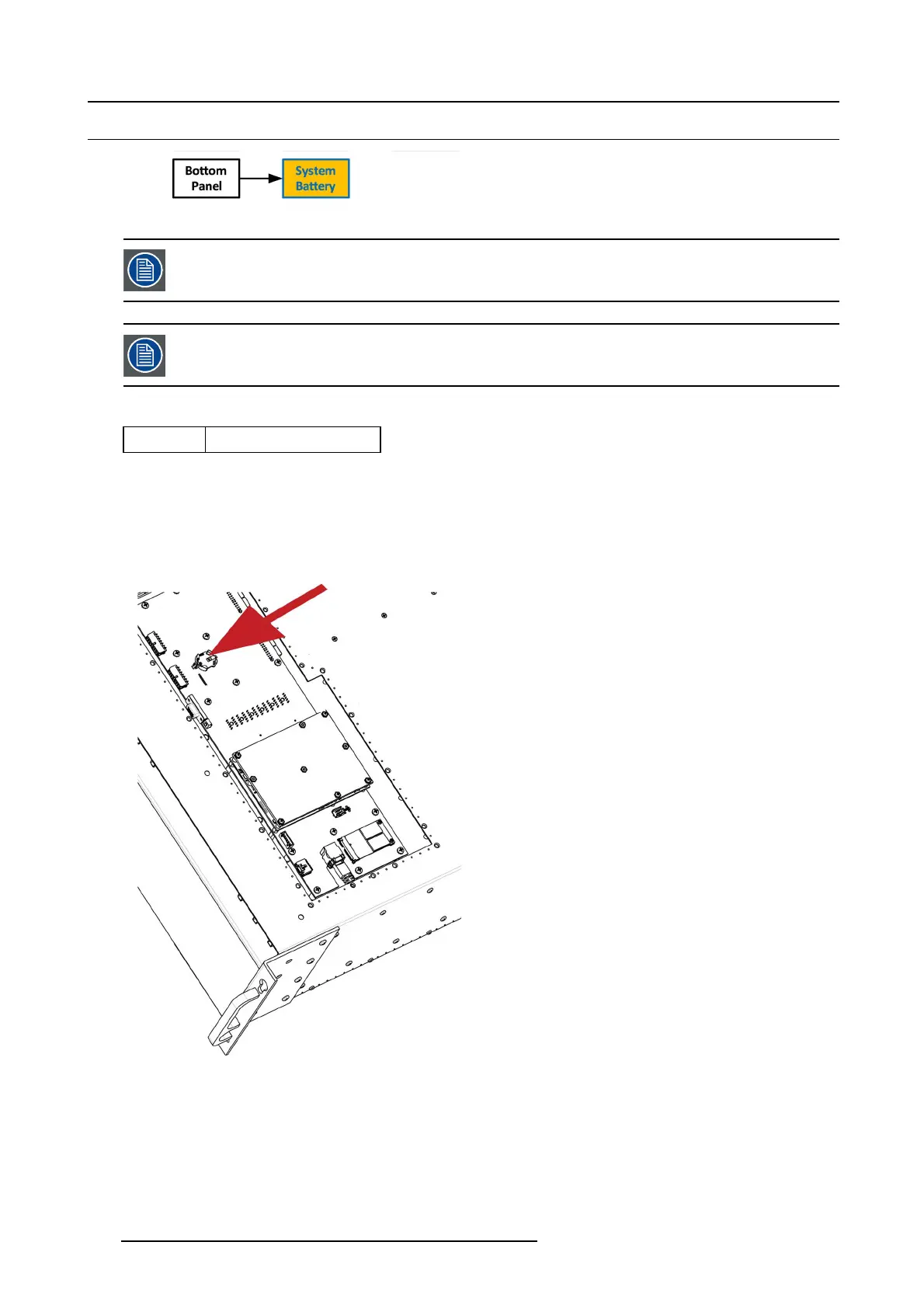

13. E2 Maintenance
13.19 System Battery
Image 13-44
Before you p rocee d remo ving the System Battery you need to rem ove t he Bottom Panel as outlined in the
related procedure.
The S ystem Battery can also be replaced a fter the System Power board is remo ved from the un it.
Concerned parts
V327007 Battery
Necessary tools
None.
How to remove the System battery
1. Carefully rem ove the battery from its socket.
Image 13-45
How to install the System battery
To install the System battery follow the same proce dure in the reverse order.
