14. S3 Maintenance

14.17 Genlock Assembly

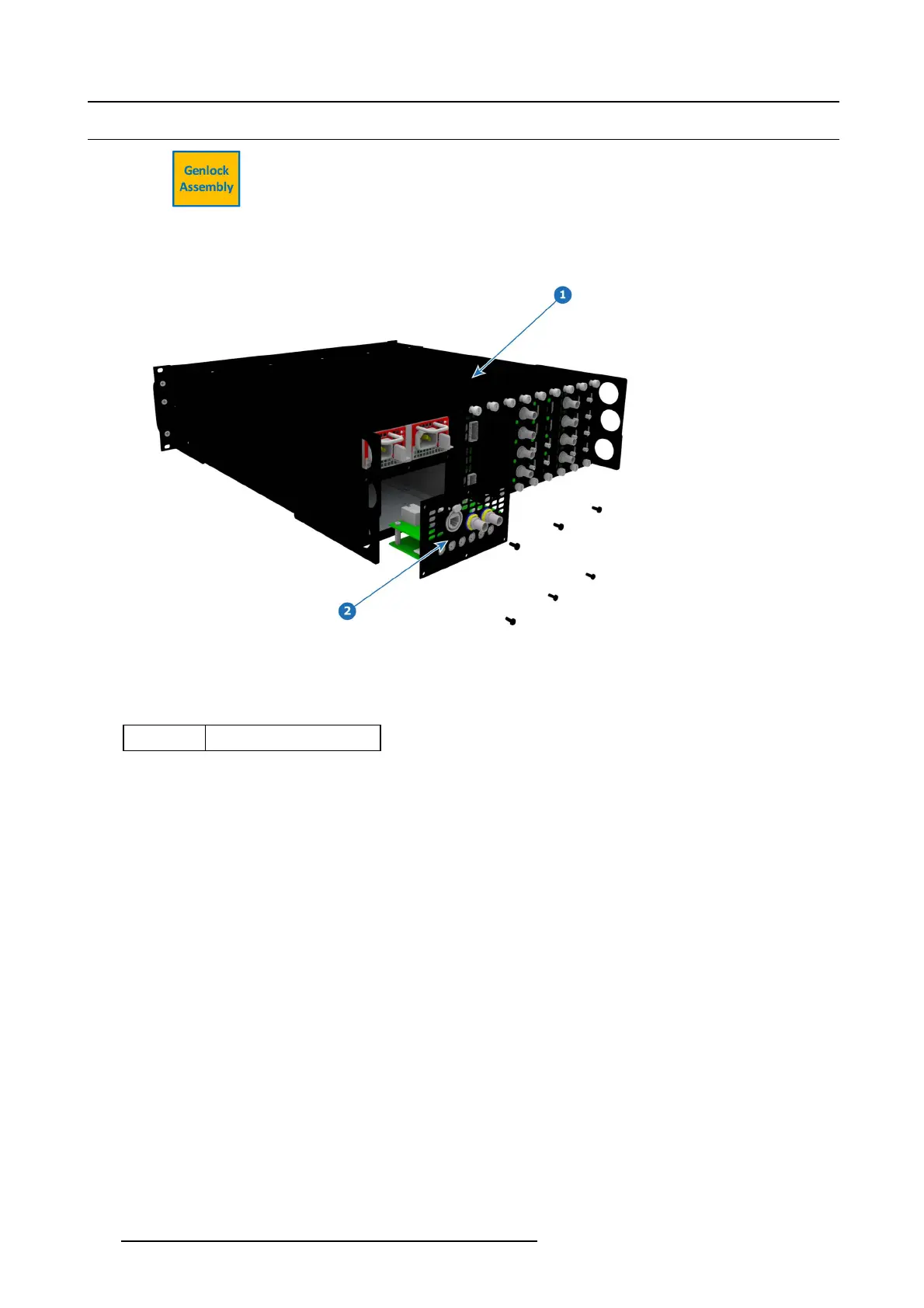

Image 14-40

Overview

Image 14-41

1 Chassis

2 Genlock Assembly

Concerned parts

R9004760

GENLOCK/S3D S3

Necessary tools

1 x Phillips Screwdriver #2

How to remove the Genlock Assembly
