Barco S3 User Manual

13. E2 Maintenance
13.20 CPU Module
Image 13-47
Before you proceed removing the CP U module you need to remove the Bottom Panel as outlined in the related
procedure.
Overview

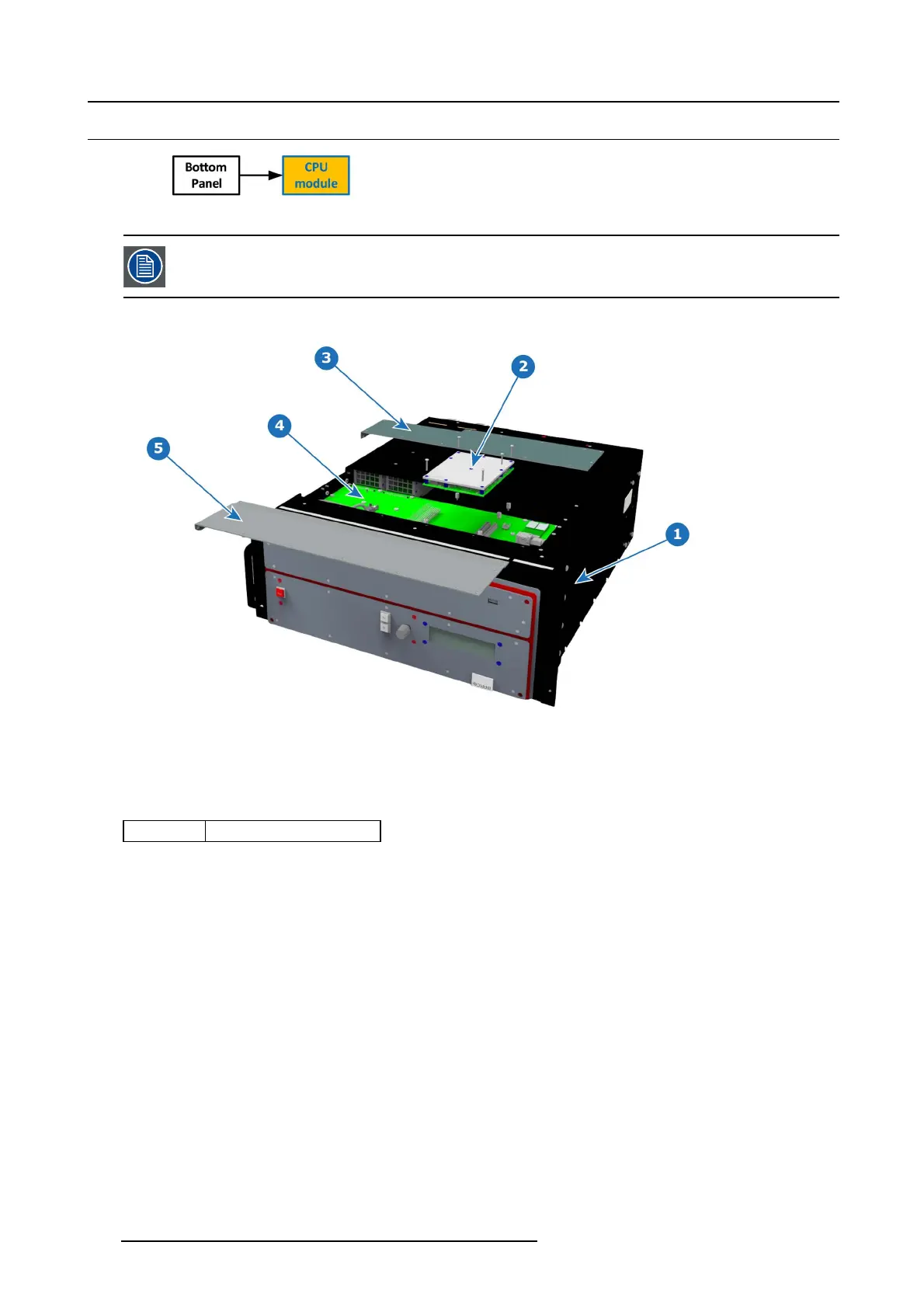

Image 13-48
1 Chassis
2 CPU Module
3 Bottom Panel P art 1
4 System Card.
5 Bottom Panel P art 2
Concerned parts
R767264K
CPU module
Necessary tools
1 x Phillips Screwdriver #2
How to remove the CPU module
1. Remove the five screws that attach CP U module to the system ca rd.
2. Carefully remove the CPU module by lifting it up.
378
R5905948 EVENT MASTER DEVICES 17/07/2017
