14. S3 Maintenance

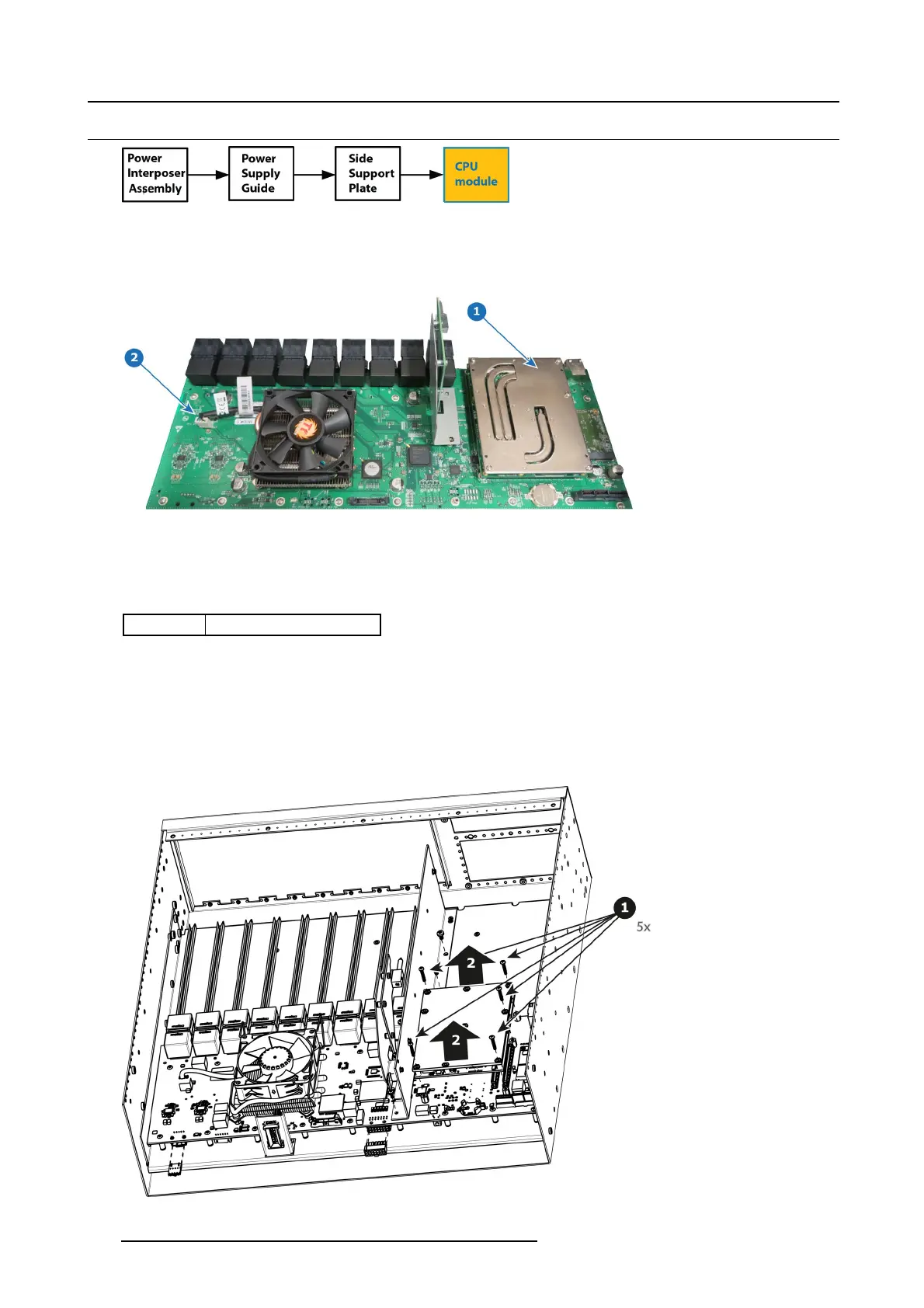

14.27 CPU Module

Image 14-68

Overview

Image 14-69

1 CPU module

2 Motherboard

Concerned parts

R767264K

CPU module

Necessary tools

1 x Phillips Screwdriver #2

How to remove CPU Module

1. Remove the ﬁve screws that attach CP U module to the system ca rd.

2. Carefully remove the CPU module by lifting it u

Image 14-70

458 R5905948 EVENT MASTER DEVICES 17/07/2017
