Barco S3 User Manual

13. E2 Maintenance
13.16 VFD Display Filter
Image 13-38
Concerned parts
R767246K V FD Display Filter
Necessary tools
None.

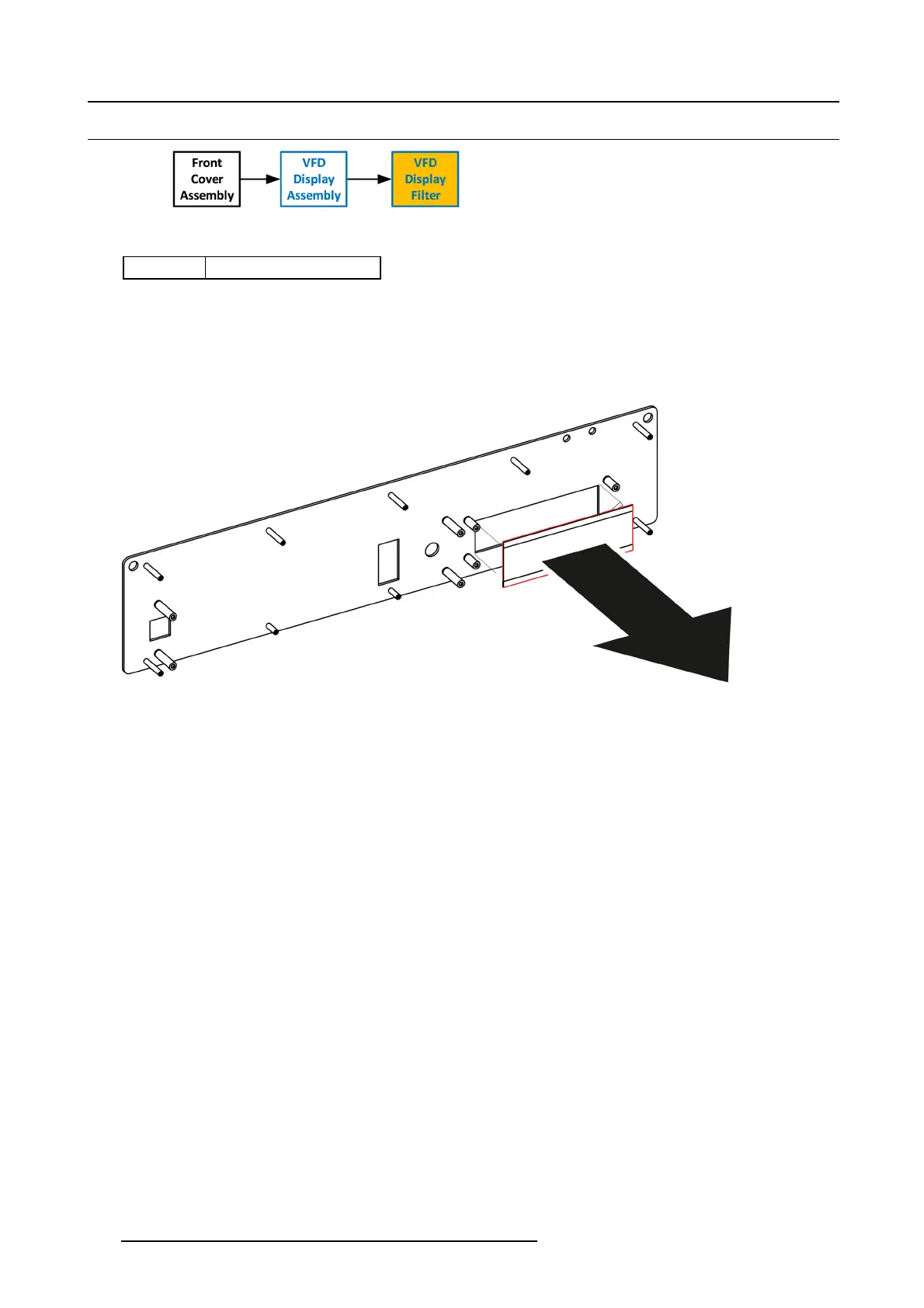

How to remove the VFD Display Filter
1. From the front of the unit push hard on the filter until it detaches from the unit.
Image 13-39
2. Use alcohol to clean the adhesive residue that held the filter to the metal plate.
How to install the VFD Display Fil ter
1. Remove the protective film from the front of the filter and releas e the liner from the tape.
2. Press firmly the filter into the metal plate.
372
R5905948 EVENT MASTER DEVICES 17/07/2017
