Barco S3 User Manual

14. S3 Maintenance
14.33 Ethernet Cable

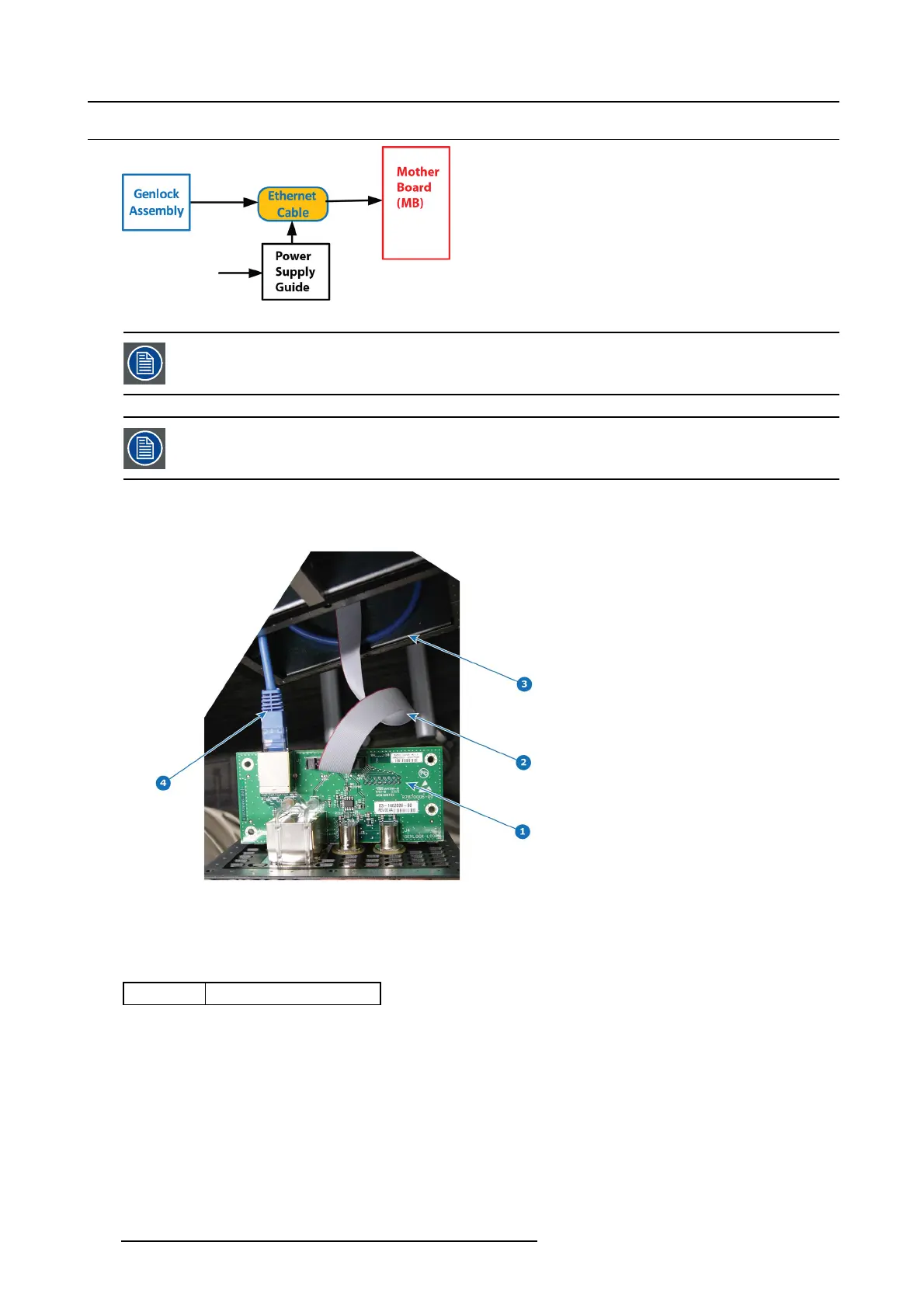

Image 14-93
The E thernet cable connects the Genlock board to the Motherboa rd. T his procedure provides instructions on
how to remove the cable from both sides.
This procedure requires to remove the Power supply Guide to unplug the cable from the motherboard.
Overview
Image 14-94
1 Genlock card
2 Genlock cable
3 Chassis
4 Ethernet cable
Concerned parts
R767283K S 3 C able Kit Set
Necessary tools
1 x Phillips Screwdriver #2
How to remove the Ethernet cable
1. Remove the Genlock assembly and pull it away to expose the cables behind it (refer to the related p rocedure).
2. Locate the Ethernet conne
ctor on the Genlock assembly and push the locking clip on the Ethernet cable so it can be released
from the socket.
472
R5905948 EVENT MASTER DEVICES 17/07/2017
