14. S3 Maintenance
14.34 Genlock Cable

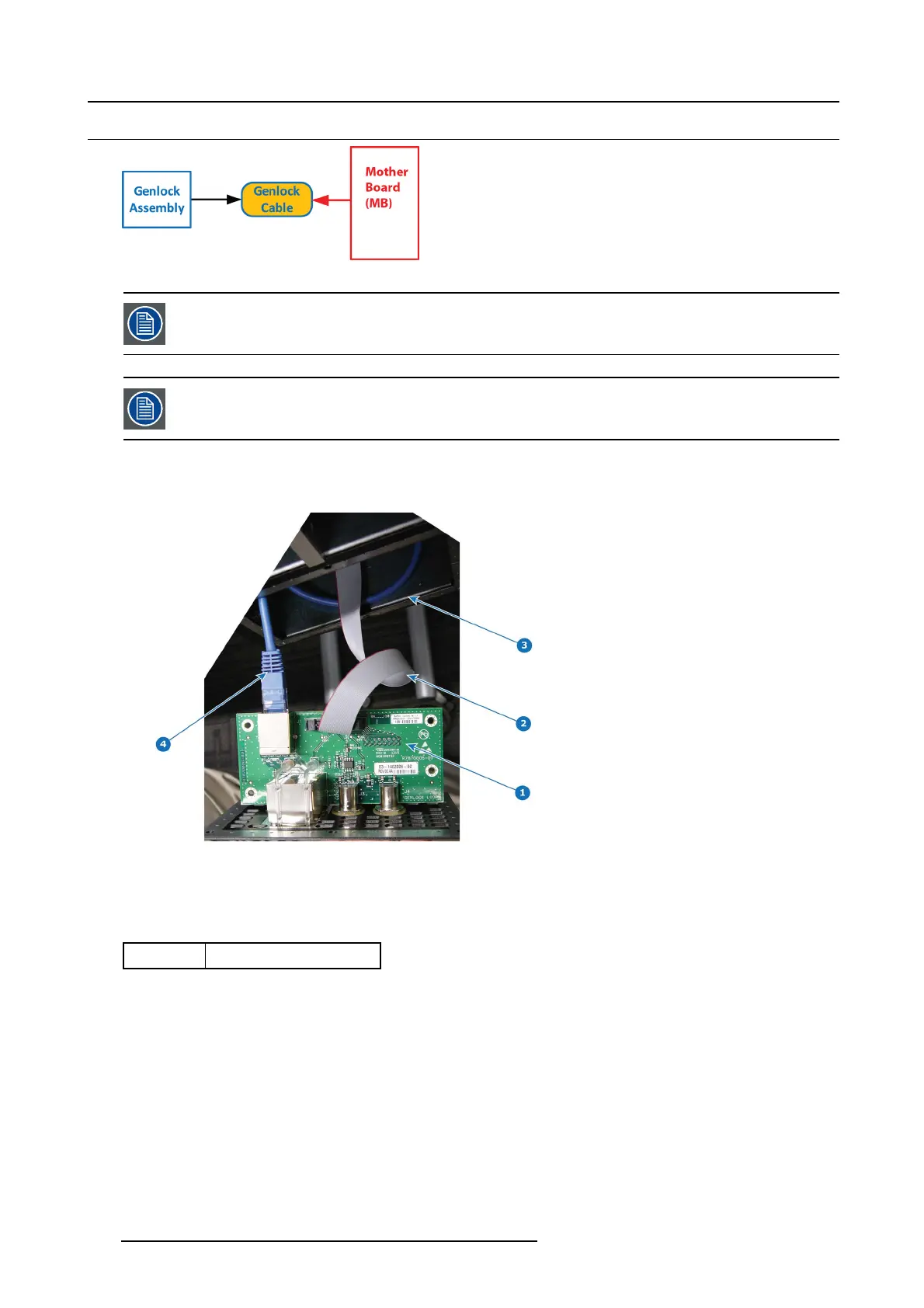

Image 14-97
The Genlock cable connects the Genlock board to the Motherboard. This procedure provides instructions on
how to remove the cable from both sides.
One end of the Genlock cab le is clamped between the Motherboard and the M otherboard mount. Remove t
his
cable requires to separate these parts.
Overview
Image 14-98
1 Genlock card
2 Genlock cable
3 Chassis
4 Ethernet cable
Concerned parts
R767283K
S3 C able Kit Set
Necessary tools
1 x Phillips Screwdriver #2
How to remove the Ethernet cable
1. Remove the Genlock assemb
ly and pull it away to expose the cables behind it (refer to the related procedure).
2. Locate the G enlock connector on the Genlock as sem bly and unlatch the ribbon cable from the connector and pull it up and away
from the Genlock board.
474
R5905948 EVENT MASTER DEVICES 17/07/2017
