9. General operation example
9.6 Multiviewer (MVR) Menu
Make sure that you have assigned connectors to MVR outputs as outlined in section C7 before you proceed .
Overview
Click on the Multiviewer icon on the left hand side of the screen to reach the Multiviewer Menu , the module used to setup the
Multiviewer outputs to the M RV m onitors. You sh ould see two screens since two Multiviewer outputs were dec lared.
We will setup the top window to display a ll the inputs and the bottom window to display the Program and preview screens.
Setup the “Sources” window
1. Click on the top tab that is labeled “MVROut1”.
2. Click on the Auto Layout Input button that is located at the bottom of the display area . All of the sources will appear lined up at
the top of the window.
3. Click on the Backg round tab and the top of the r ight hand side.
4. Drag the PC-B ackground into the Window area.

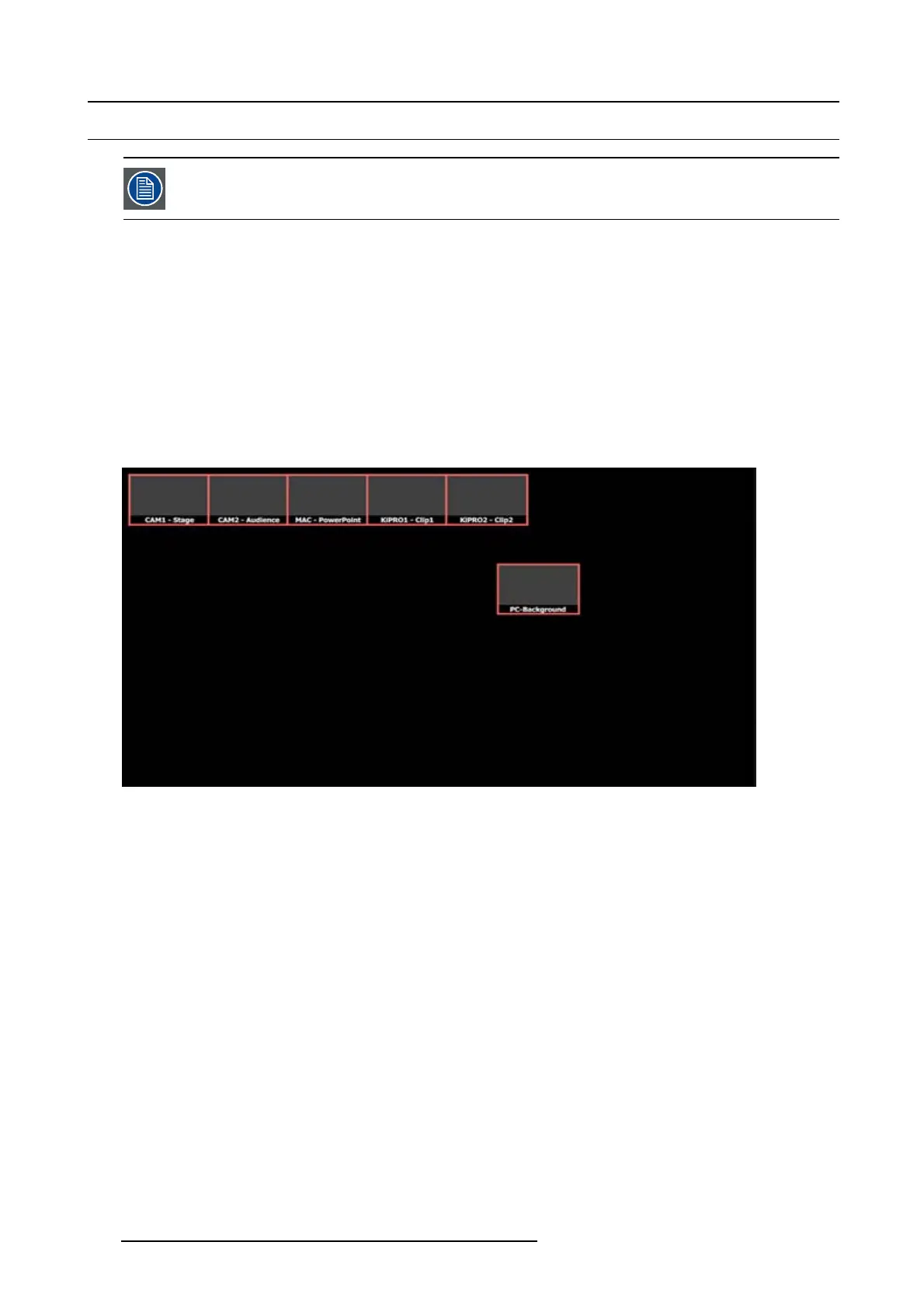

Image 9-26
5. Resize and ar range the PIPs to fill the screen.
282
R5905948 EVENT MASTER DEVICES 17/07/2017
