9. General operation example

Image 9-27

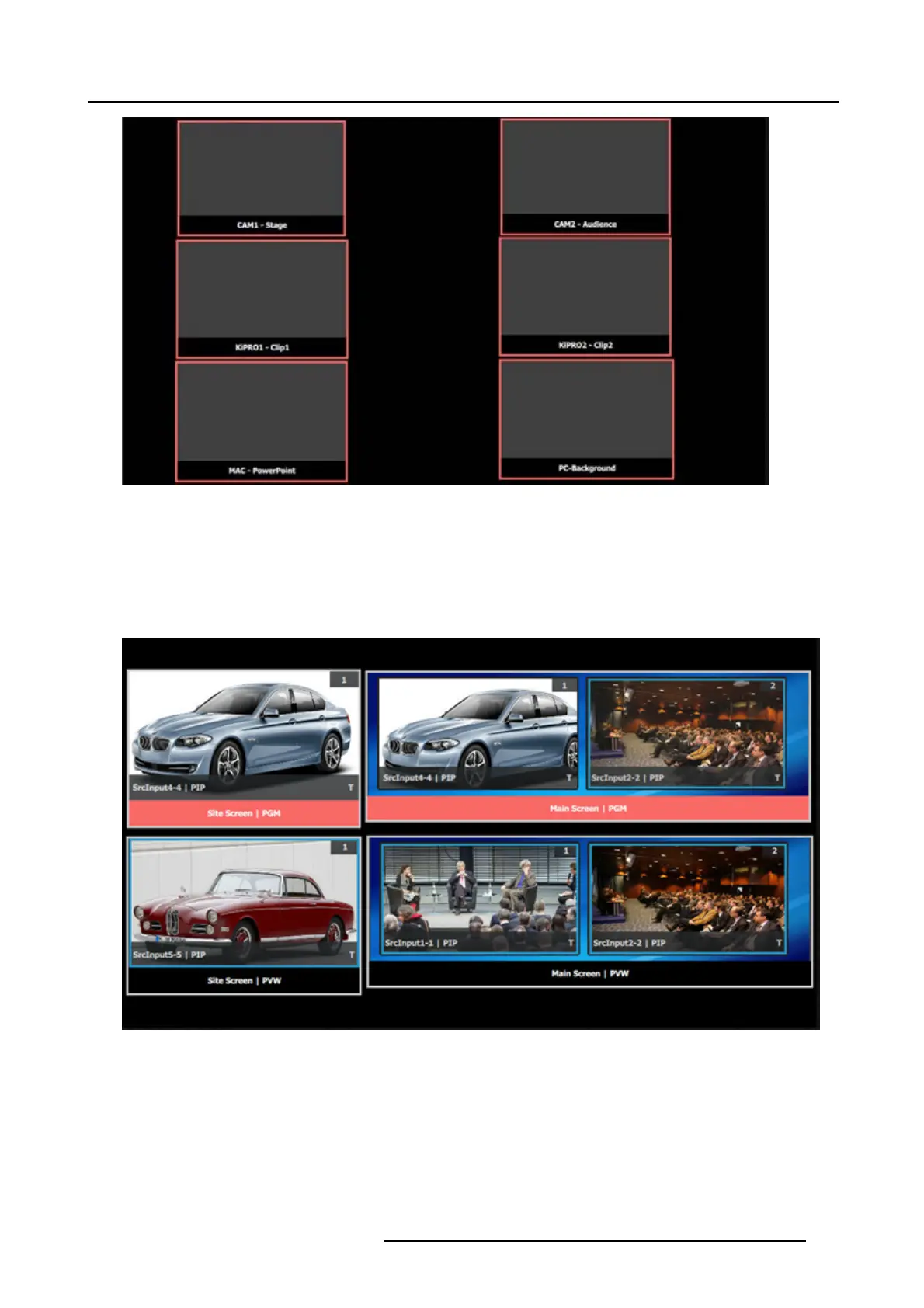

Setup the “Program/Preview” window

1. Click on the top tab that is labeled “MVROut2”.

2. Click on the Dest ination tab and the top of the right hand side.

3. Drag th e Program and Previews under the Site and Main Screens into the window area.

4. Resize and arrange the PIPs so they appear as follows:

Image 9-28

R5905948 EVENT MASTER DEVICES 17/07/2017 283
