4. Hardware orientation
4.2 Rear panel
About rear panel
See image 4-5 for an illustration of the rear panels of the Event Master E2 and S 3–4K s eries processors. See imag e 4 -6 for an
illustration of the rear panels of the Event Master E 2 J r. and S3–4K Jr. series processors. See image 4-7 for an illustration of the
rear panel of the Event Master EX processor.

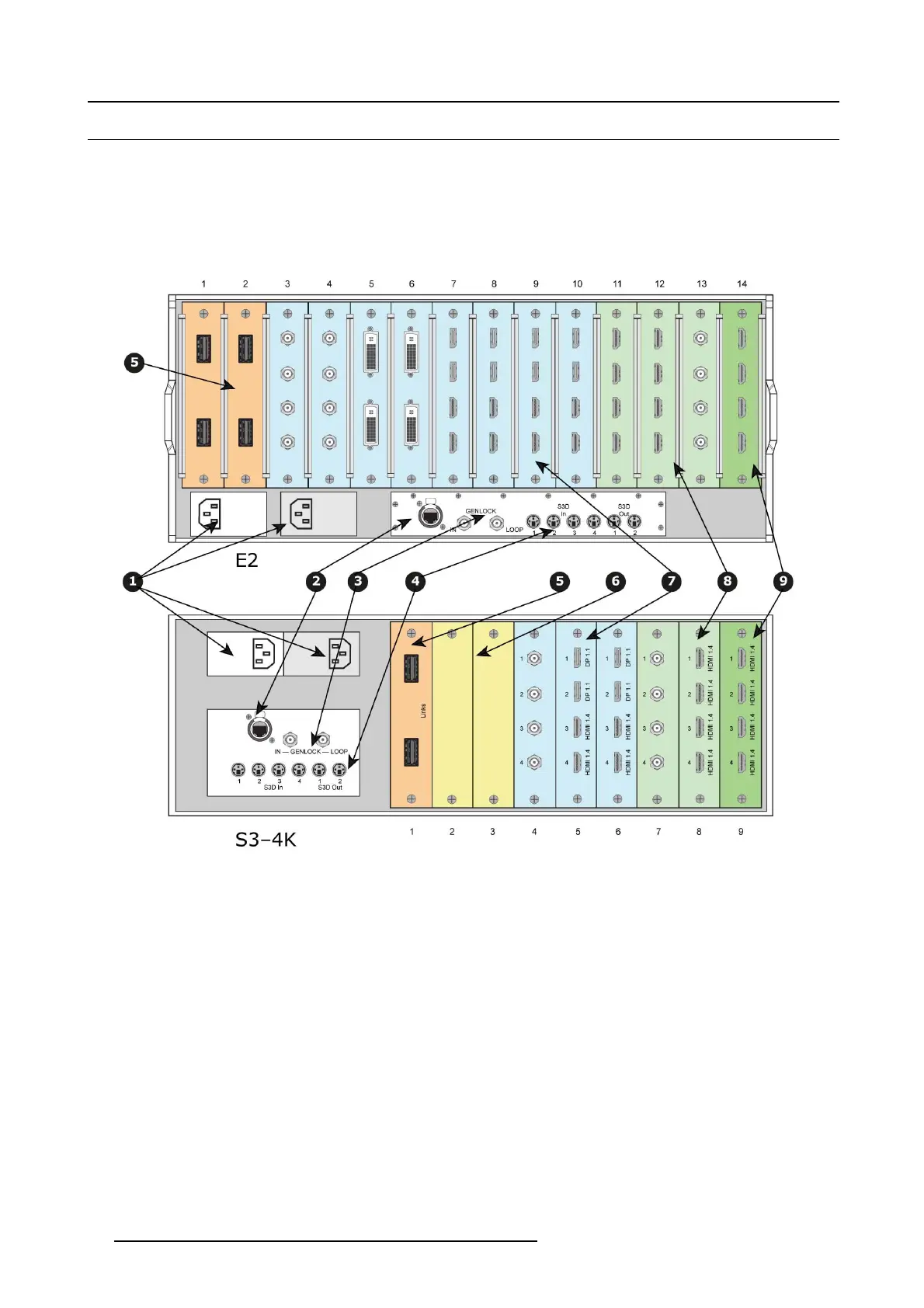

Image 4-5
E2 and S3–4K series rear panels
1 AC connectors
2 RJ-45 connector for 10/100 Bas
eT Ethernet communications
3 Genlock Input BNC with passive Loop-through
4 S3D In and S3D Out
5 Expansion Link cards
6VPUcards
7 Input cards (HDM I/DP, SDI, DVI)
8 Outputs cards (DVI
,SDI)
9 Multiviewer card (HDMI)
44 R5905948 EVENT MASTER DEVICES 17/07/2017
