4. Hardware orientation
4.8 S DI Output C ard
General
The SDI O utput Card has 4 BNC connectors that can support Single Link, Dual Link and Q uad Link signals, in S D, HD, 3G-SDI and
6G-SDI Ultra HD (UHD) formats.
This card currently supports up to 3G-SDI formats. 6G-SDI formats may be supported in a future software
release.

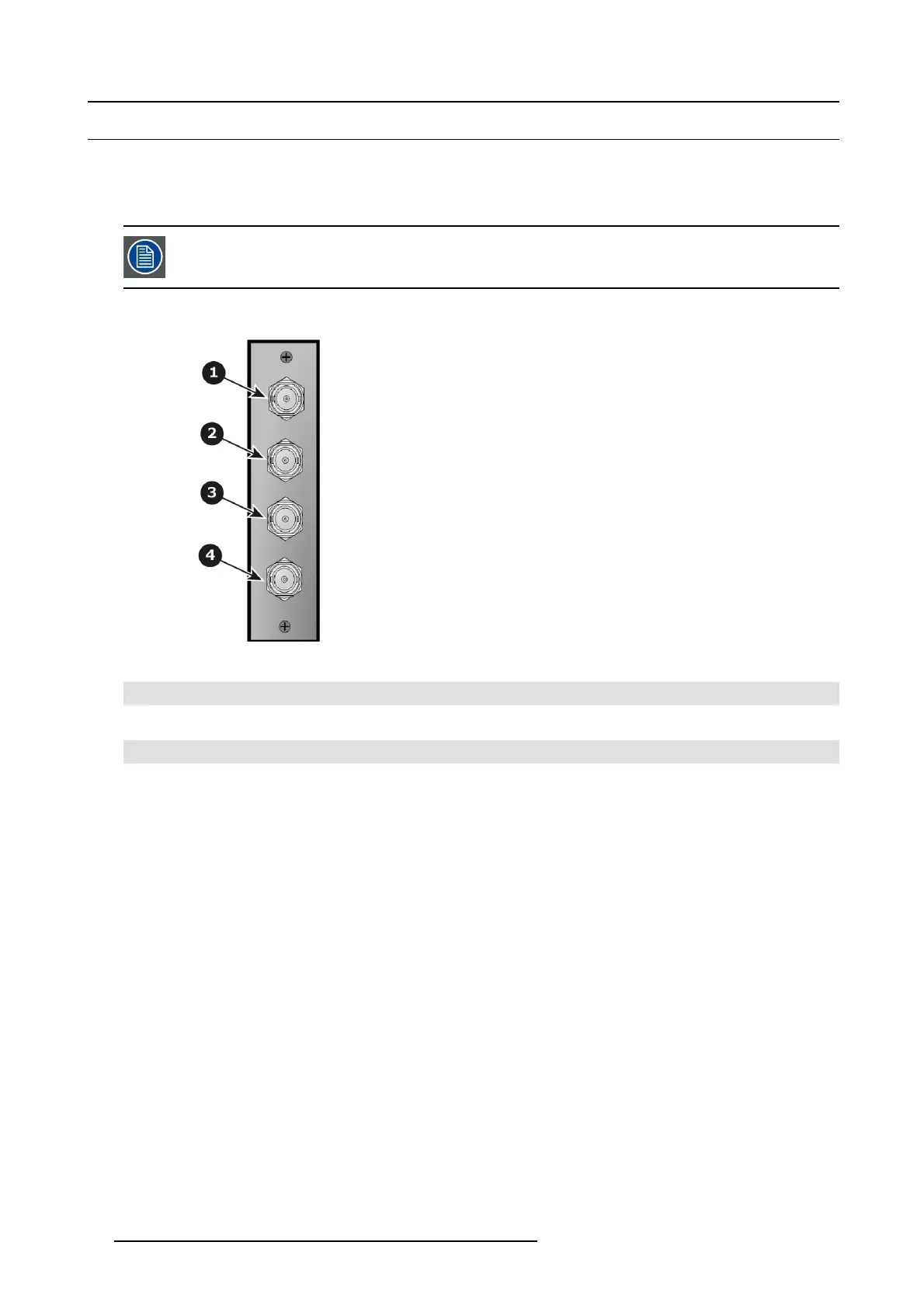

The figure below illustrates the SDI Output Card’s rear panel connectors:
Image 4-13
SDI output Card Rear Panel
1
BNC connector — SDI 1
2
BNC connector — SDI 2
3
BNC connector — SDI 3
4
BNC connector — SDI 4
Features
• Provides up to 4 signals independently
• Automatic SD , HD, 3G and 6G * Switching
• Quad Link HD-SDI Output
• Dual Link 3G-SDI Output
• Single Link 6G -SD I Output
Note: 6G-SDI may be supported in a future softw
are release.
58
R5905948 EVENT MASTER DEVICES 17/07/2017
