10. Controller orientation
10.1 General description
General
Event Master controllers are dedic ated hardware consoles specifically designed to support the Eve nt Master series pr ocessors,
devices, and systems created from several o f them. They run the E vent Master Toolset Software (EMTS) and the EC-200 on an
industrial operating system with optimized h ardware. They include tactile operation style with buttons and touch screen displays,
allowing for eas y and direc t control of the Event Master series processors..
There are three models of Event Master controller:
• EC-30 (compact controller).
• EC-50 (small con troller).
• EC-200 (large controller).
The E C-30 is the most c ompac t version of the EC-series E vent Master c ontrollers. As an extension of the EMTS, the EC-30 provides
essential selections for sources, presets, layers, and destinations. The EC-30 connects as a U S B peri
pheral to an ex isting Event
Master control computer.
The EC-50 is a wing concept, or an accessory to the EC-200, and it needs either a host comp uter running the EMTS or an EC-200
controller for full function. The button layout of the EC-50 is identical to the layout found on the left-hand side of the EC-200, and
the buttons have the same functions as the buttons on an EC-200.
The Event Master EC-200 controller is a dedicated hardware console specifically designed to support Event Master series proces-
sors and devices. It runs the EMTS. It can stand alone, or it can support additional external Event Master compatible devices ov er
network and USB.
Main components overview

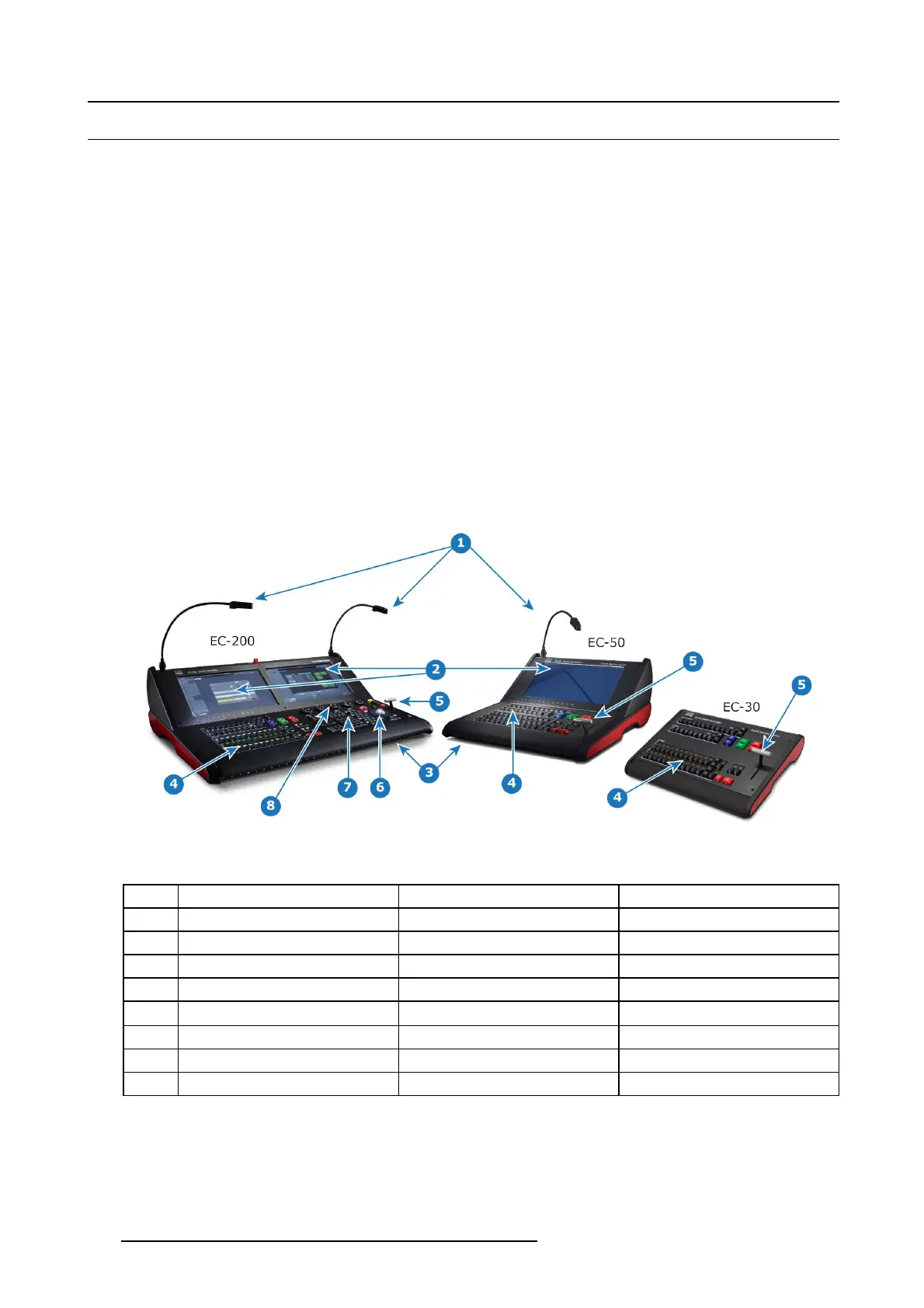

Image 10-1
Controller main components overview
EC-200 large controller EC-50 small controller EC-30 com pac t controller
1 2xworklights(flex ible support) 1x work light (flexible support) NA
2 2x Touc h screens 1x Tou ch screen NA
3 Back light on front face Bac k light on front face NA
4 User as signable presentation buttons User as signable presentation buttons User assignable p resentation buttons
5
T-bar T-bar T-bar
6 Trackball and ring NA NA
7 Function buttons and numpad NA NA
8
Wheel (rotary encoders) layout
NA NA
EC-200 General description
The Event Master E C-200 controller is dedicated c omputing hardware. Its front has a keyboard area and two touchscreens, a nd the
back has connectors. It runs its software, the Event Master Toolset, on an industrial Linux operating system.
Tactile operation with buttons and touch screen displays allow for easy and direct control of the Event Master series proc essors.
286
R5905948 EVENT MASTER DEVICES 17/07/2017
