Barco S3 User Manual

12. Controller Operation

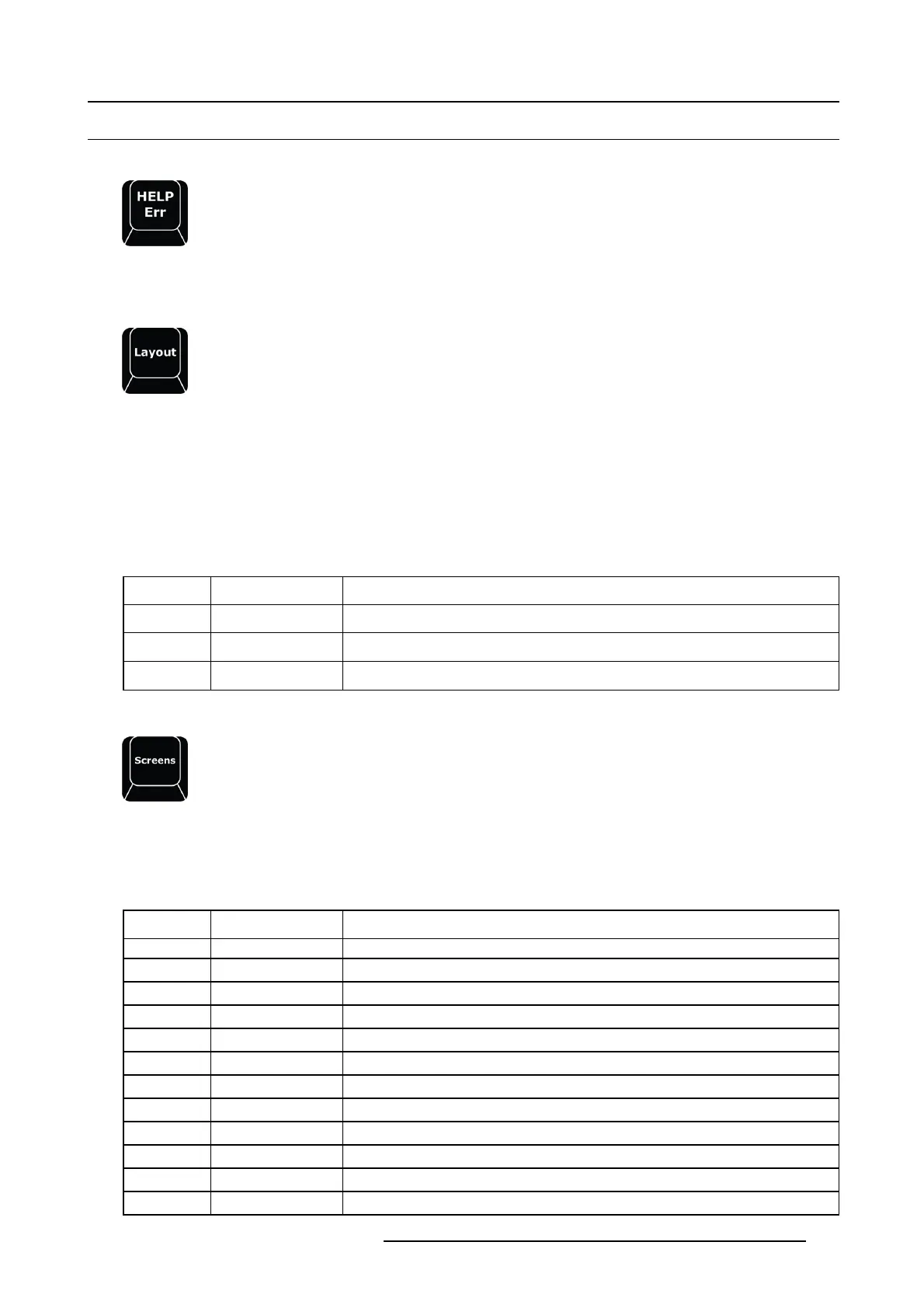

12.15 Additional direct access and functionality
HELP Err
Image 12-16
The HELP / Err b utton is not functional at this point. Once functional it will open FAQ and such functionality.
Layout
Image 12-17
The Layout function button allows for selection and recall of layouts where applicable.
Multi-viewer, A ssign Buttons and Programmer screen & Preset screens are currently implemented.
To select a Layout use syntax like:
• LAYOUT 1 ENTER will recall Layout 1.
The sam e number of layouts is available as in the GUI. Layout changes also act as t hey do in the GUI.
When a layout is selected changes are stored for that layout in real time, automatically.
Pressing Layout bu tton will populate the Smart Dis plays with:
Contextual
Button
Display Description
CD1
MVR LAYOUT MVR (CD1) 1 or 2 or 3 or 4 ENTER willrecallLayout1–4respectively
into the Multi-viewer
CD2
Programing LAYOUT Programmer (CD 2) 1 or 2 or 3 or 4 ENTER will recall L a yout 1 – 4
respectively into the Programming W indow
CD3 Assign Buttons LAYOUT Assign (CD 3) 1 or 2 or 3 or 4 ENTER will Recall Layout 1 – 4
respectively into the Assign Buttons.
Screens
Image 12-18
The Screens button is used to select the windows of t
he GUI currently in the displays of the controller. T here is 2 internal standard
and 2 external possible.
Screens are named1–4,1totheleftand2totherightwiththeoutput3and4intheback.
When the Screens button is pressed, the contextual displays will be populated with:
Contextual
Button
Display Description
CD1 Config 1 Applies the Config Page to the left screen of the c onsole
CD2
Program 1
Applies the p rogramming page to the right screen of the console
CD3
MVR 1
Applies the MVR Setup page to the L eft screen of the console
CD4 Config 2 Applies the Config Page to the right screen of the c onsole
CD5
Program 2
Applies the p rogramming page to the right screen of the console
CD6
MVR 2
Applies the MVR Setup page to the L eft screen of the console
CD7 Console 1 Applies the Console Setup page to the Left screen of the console
CD8 Web 1 Applies the Web preset page to the Left screen of the cons ole
CD9 Blank
CD10 Console 2 Applies the Console Setup pa ge to the Left screen of the console
CD11 Web 2 Applies the Web pr eset page to the Left screen of the console
CD12 Dest Show/Hide Reveals or hides the Destination banner in the Left screen
R5905948 EVENT MASTER DEVICES 17/07/2017 343
