11. Controller Configuration
11.6 Lights

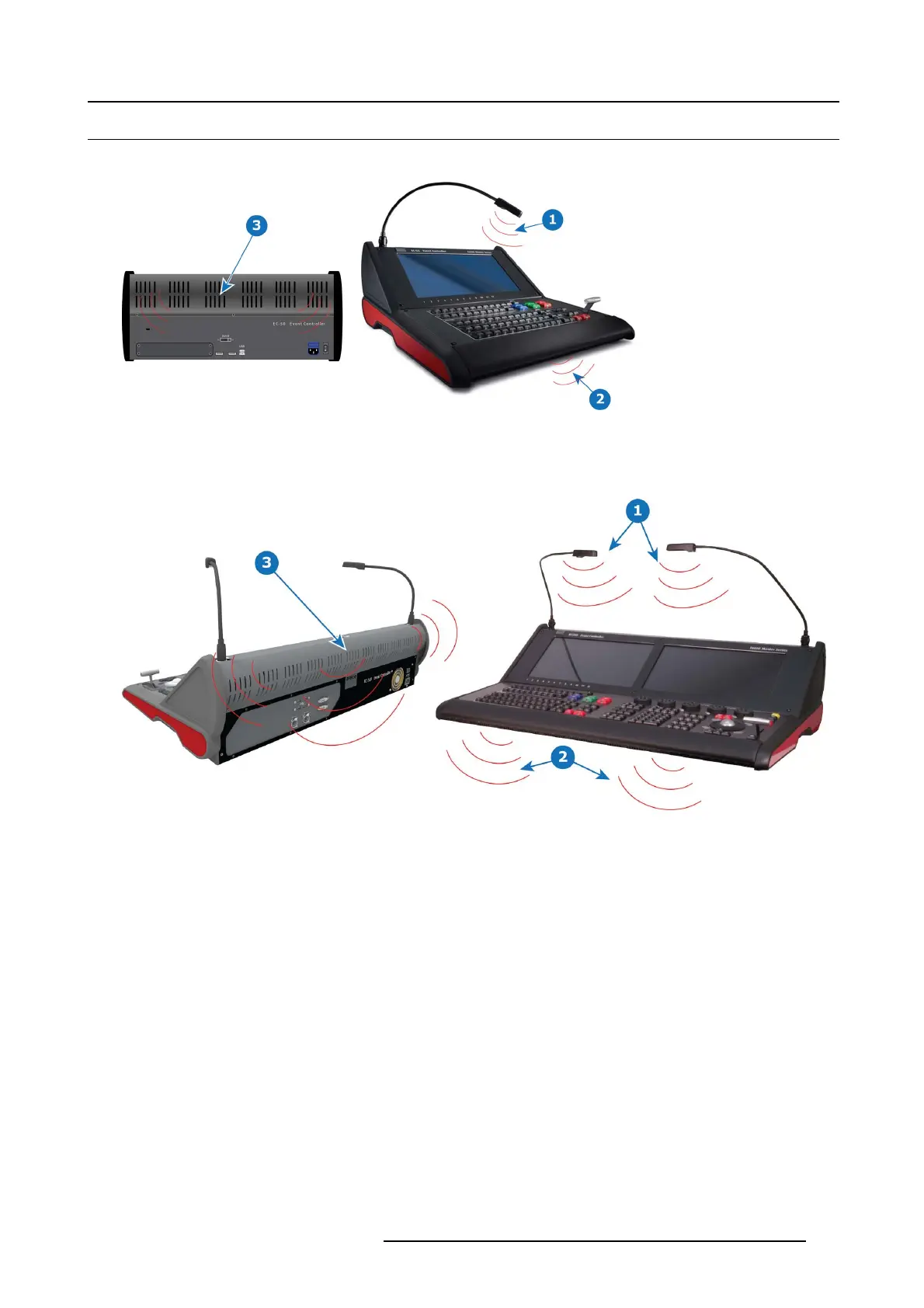

EC-50 Overview
Image 11-5
1 Work Light
2 White Light
3 Red Backlight
EC-200 Overview
Image 11-6
1 2xWorkLight
2 White Light
3 Red Backlight
Description
Work Light
EC-50 and EC-200 con trollers are respectively supp lied with one and two flexible sc riptlight connections equ ipped with LED light.
Light can be adjusted for br ightness in the Events M aster Toolset Settings menu page in the tab User Prefs, only available w hen
hardware is connected.
White light
White light under the hand rest is for reading show scripts. Light can be turned on and off in the Events Master Toolset Settings
menu page in the tab
User Prefs, only available when hardware is connected.
Red backlight
The Red back light indicate that the power is on an is a design elem ent. Light can b e turned o n and off in the Events Mas ter Toolset
Settings menu page in the tab User Prefs, only available when hardware is connected.
R5905948 EVENT MASTER DEVICES 17/07/2017
319
