14. S3 Maintenance
14.25 Side support plate
Image 14-63

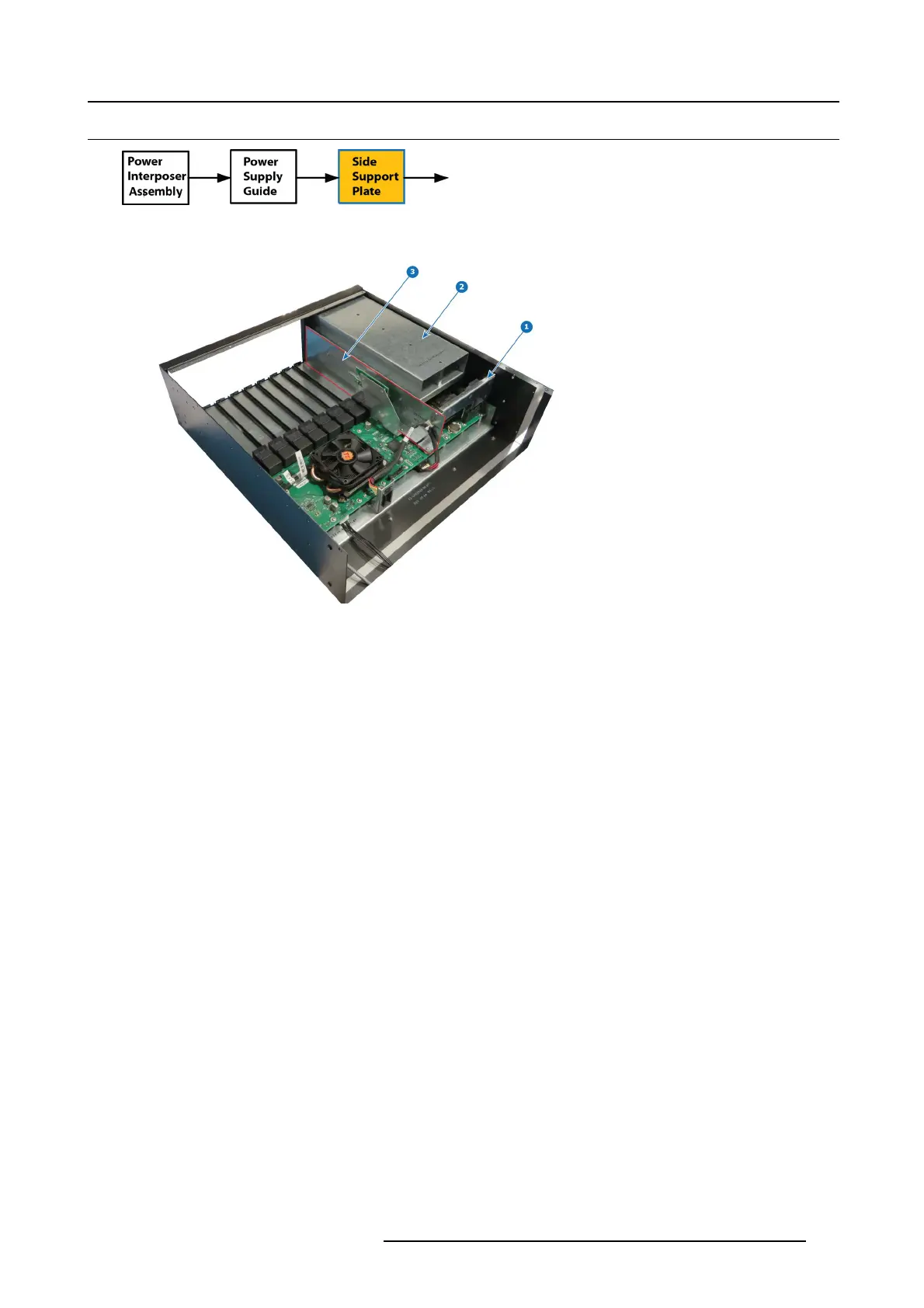

Overview
Image 14-64
1 Power Interposer
2 Power supply guide
3 Side S upport Plate
Necessary tools
1 x Phillips Screwdriver #2
How to remove Side Support Plate
1. Remove the two pan head SE MS screws (6-32x0.25 — Stainless steel) that attach the Side Support Plate to the Motherboard
Mount.
2. Remove the three pan head SEM S screws (4
-40x0.25 — Stainless s teel) that attach the Side Support Plate to the Motherboard
Mount.
3. Move forwar d the S ide Suppo rt Plate (this item is align with the Motherboard Mount via key holes), and gently pull the Side
Support Plate away from the unit.
R5905948 EVENT MASTER DEVICES 17/07/2017
455
