4. Hardware orientation
4.4 Dual Link D VI Input C ard
General
The dua l link DVI input card includes two DVI-I dual-link connectors that c an support a single or dual-link DVI video signal.
Although the D VI-I connectors includes pins that support analog signals, the DVI card doesn’t support analog
signals. If you need to connect an analog signal to t he unit, yo u need to employ an external A/D converter.
The figure below illustrates the dual link DVI input card’s rear panel c onnectors:

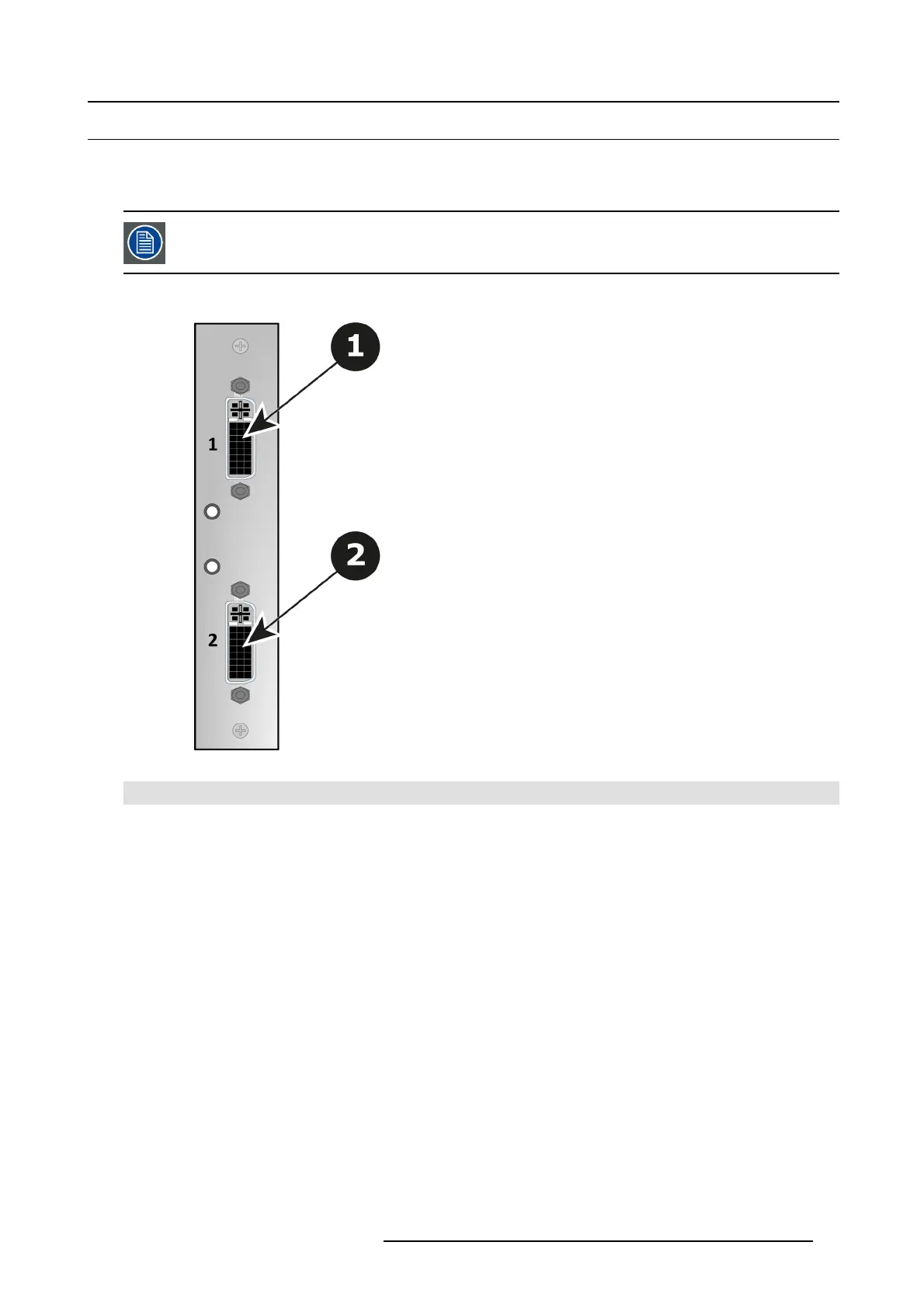

Image 4-9
Dual Link DVI Input Card Rear Panel
1 DVI-I dual-link connector — DVI 1 with an LED
that turns on green when a valid s ync has been detected
2 DVI-I dual-link connector — DVI 2 with an L
ED that turns on green when a valid s ync has been detected
Features
• Process u p to 2 signals independently
• 2x D VI-I dual-link connector
• Support for single or dual-link DVI video s ignal
• Each input c hannel includes an LED that turns green when a valid sync is detected.
R5905948 EVENT MASTER DEVICES 17/07/2017
51
