14. S3 Maintenance
14.21 Top Card Guide
Image 14-49
Necessary tools
1 x Phillips Screwdriver #2
How to remove Top Card Guide

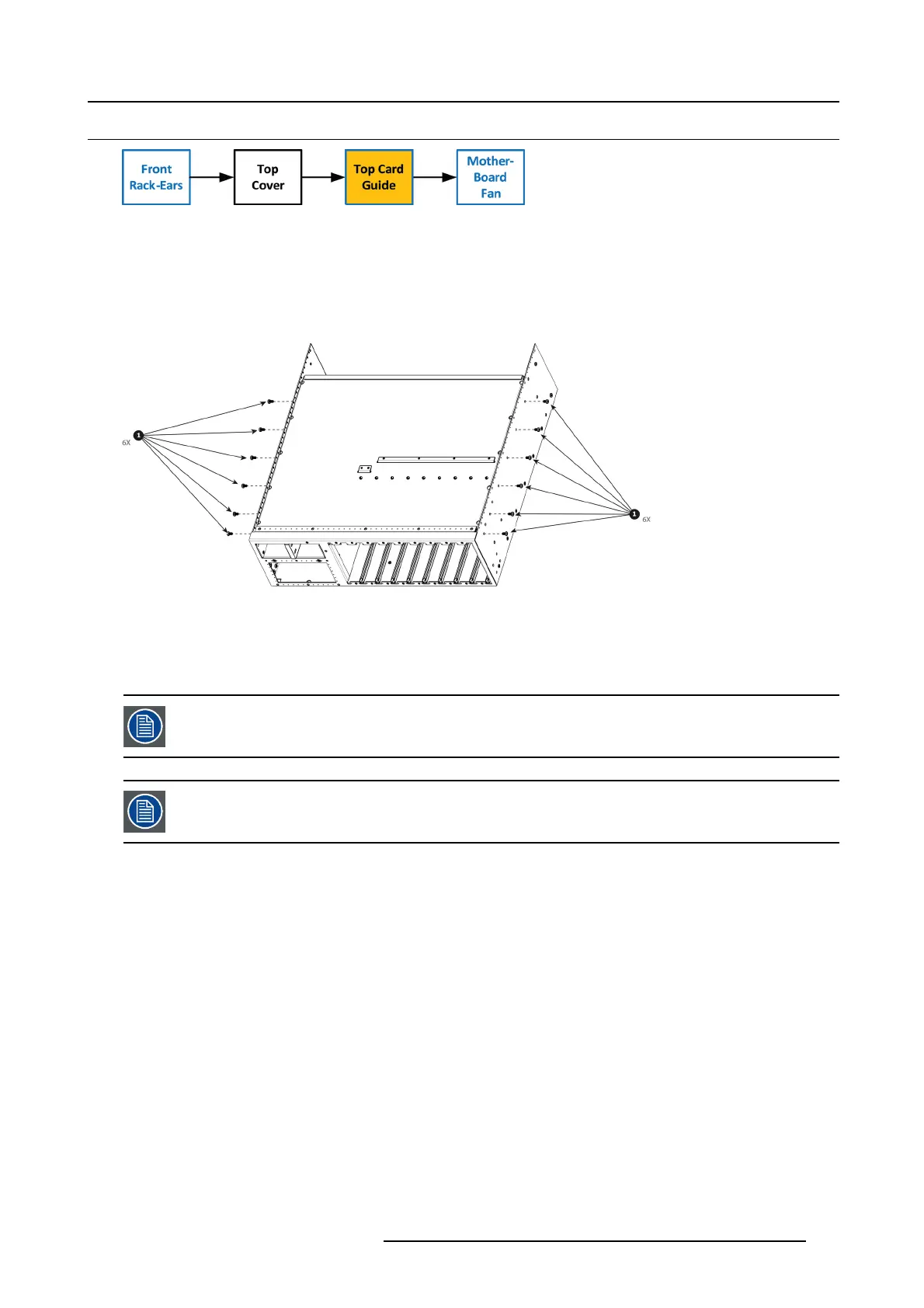

1. Remove the 12 s crews from the two sides (6 in each side, 6-32x0.25) that ar e located towards the bottom of the unit.
Image 14-50
2. Remove the card guide cover by gently pulling it away from the unit.
How to install Top Card Guide
To install the Top Ca rd Guide follow the s ame procedure in the reverse order.
When installing the guide mak e sure you have 2 cards from the rear installed b efore tightening the screws.
Use Loc tit e 242 to the scre w s before instal li ng.
R5905948 EVENT MASTER DEVICES 17/07/2017 447
