12. Controller Operation

12.1 General Overview

Overview

The layout of the keyboard of the EC-30, the EC-50, and the left-hand side of the EC-200 is designed to give direct access to

memories and selections in a live situation.

Programming, P layback, and Edit of any given event is greatly sped up, enhanc ing the a bilities of a n operator to react quickly to any

given situation.

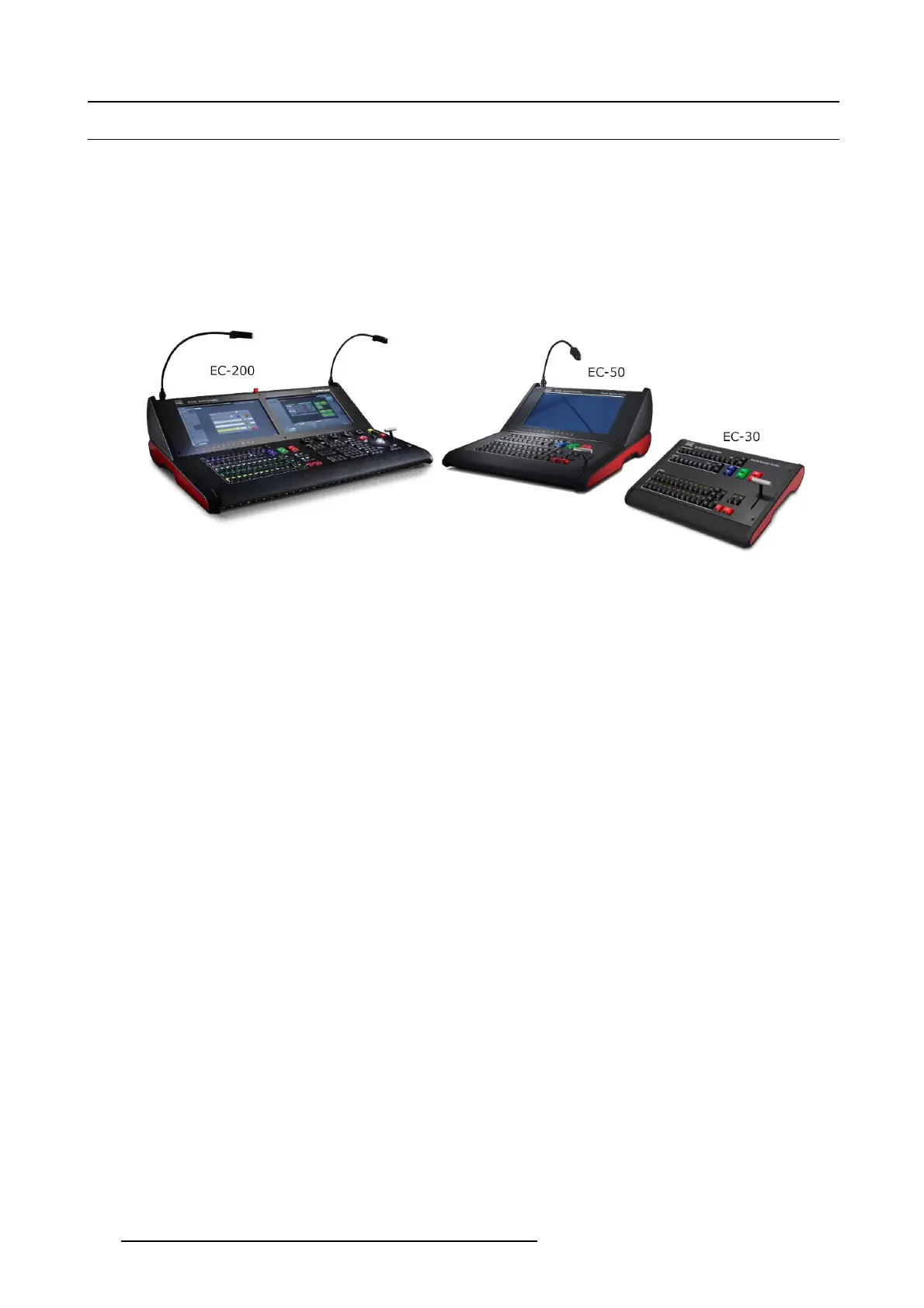

Image 12-1

Event M aster controllers

324 R5905948 EVENT MASTER DEVICES 17/07/2017
