13. E2 Maintenance
13.10 1RU Fan Tray

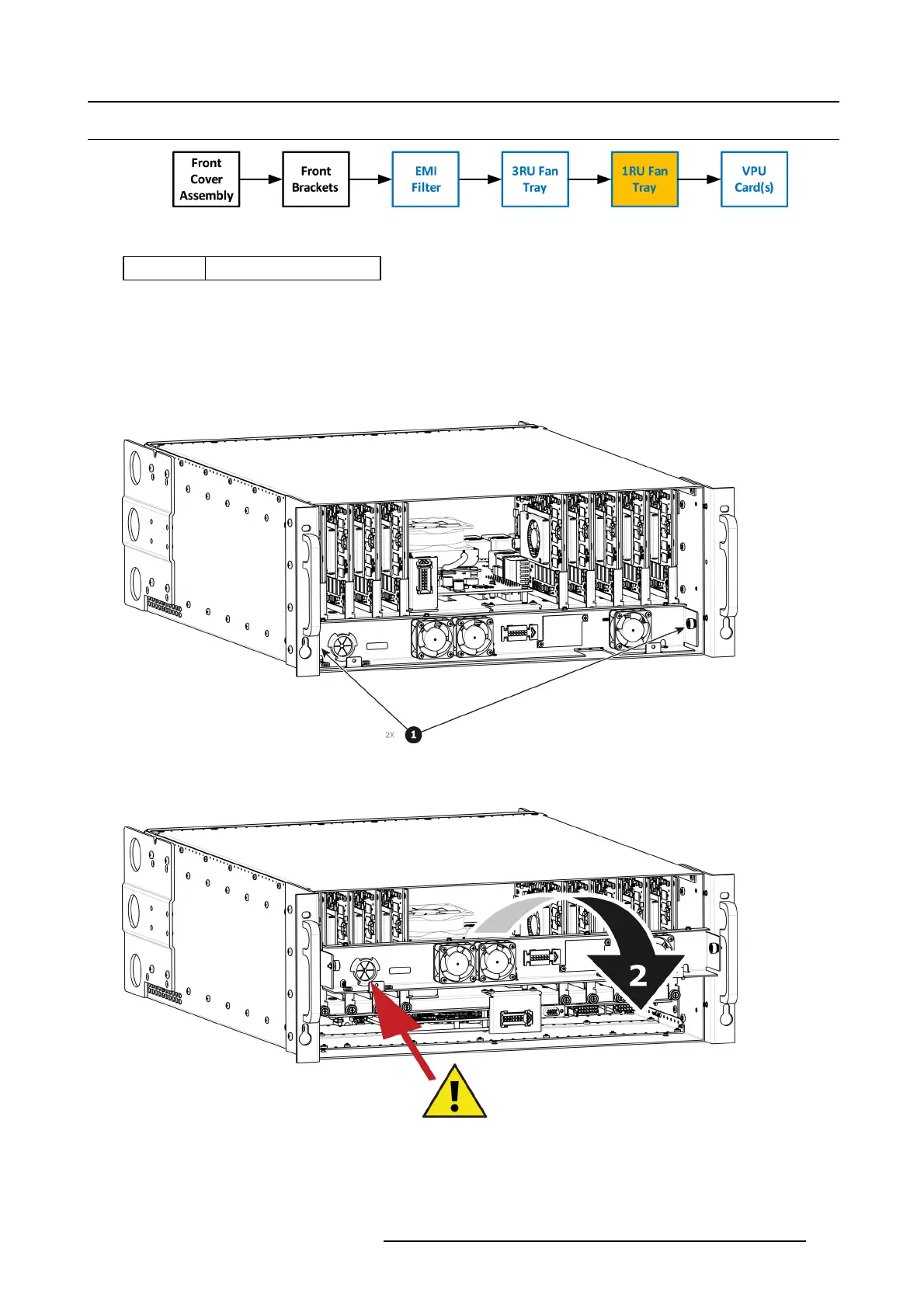

Image 13-20
Concerned parts
R767270K 1R U Fan Tray
Necessary tools
1 x Phillips Screwdriver #2 ( optional).
How to remove the 1RU Fan Tray
1. Loosen an d unsc rew the 2 thumbscrews holding the 1RU fan tray to the chassis.
Note: You may need a screwdriver if the thumbscrews are ver y tight.
Image 13-21
2. Pull the tray out.
Note: You might need to tilt the tray and maneuver it to go around the dimp les located on the side of the chassis.
Image 13-22
Caution: B efore you completely r emov e it from the unit c arefully push t he USB and Front panel cables through the grommet
located on the left hand side.
R5905948 EVENT MASTER DEVICES 17/07/2017
363
