13. E2 Maintenance
13.29 Ethernet Cable

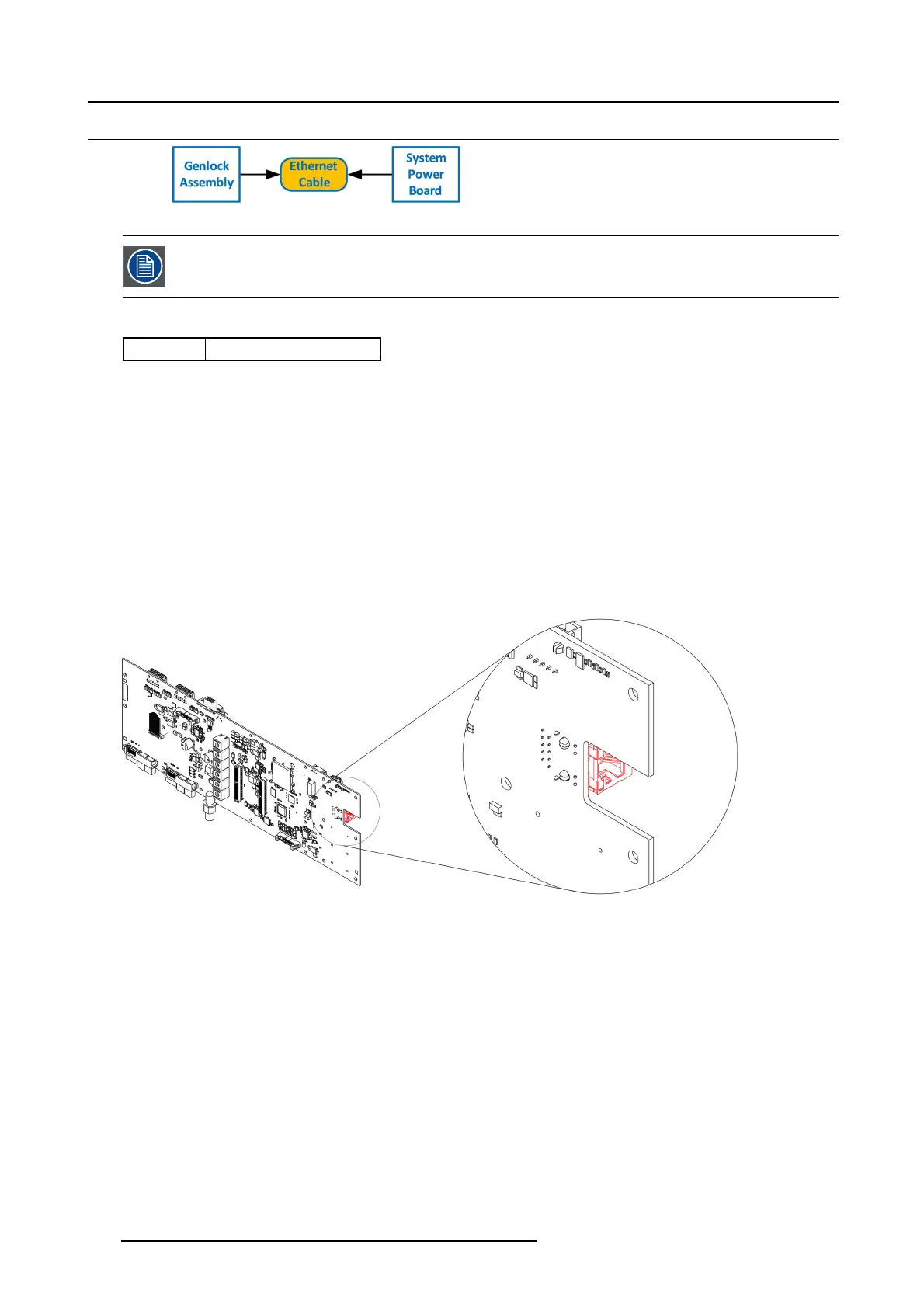

Image 13-74
The Ethernet cable connects the Genlock board to the System Power board. This procedure provides instruc-
tions on how to remove the cable from both sides.
Concerned parts
R767269K
Cable K it S et
Necessary tools
1 x Phillips Screwdriver #2
How to remove the Ethernet cable
1. Follow the steps detailed in other procedures to remo ve Ethernet cable from the Genlock assembly.
2. Turn the unit upside down and follow the steps detailed in other procedures to remove the B ottom P anel and the CPU module
from the System-Power board.
3. Remove t he USB, VFD, 3RU and 1RU cables that are co nnected to the S ystem-Power board.
4. Remove the screws that attach the System-Power Board to the standoffs.
5. Lift the System Power B oard from the standoffs and flip it over, but don’t extend it too much.
6. Locate the E thernet con nector and push the locking clip on the Ethernet cable so it can be released from the socket.
Image 13-75
7. Carefully remove the cable f rom the unit.
How to install the Ethernet Cable
To install the Ethernet Cable follow the same procedure in the reverse o rder.
400
R5905948 EVENT MASTER DEVICES 17/07/2017
