9. General operation example
9.3 Control S oft ware O peration
Overview
In this section we will use the control software (Event M a ster Toolse t Software) to setup the E2 and create presets and us er keys to
be used during the eve nt. We w ill follow the steps sequentially outlined in d iagram bellow.

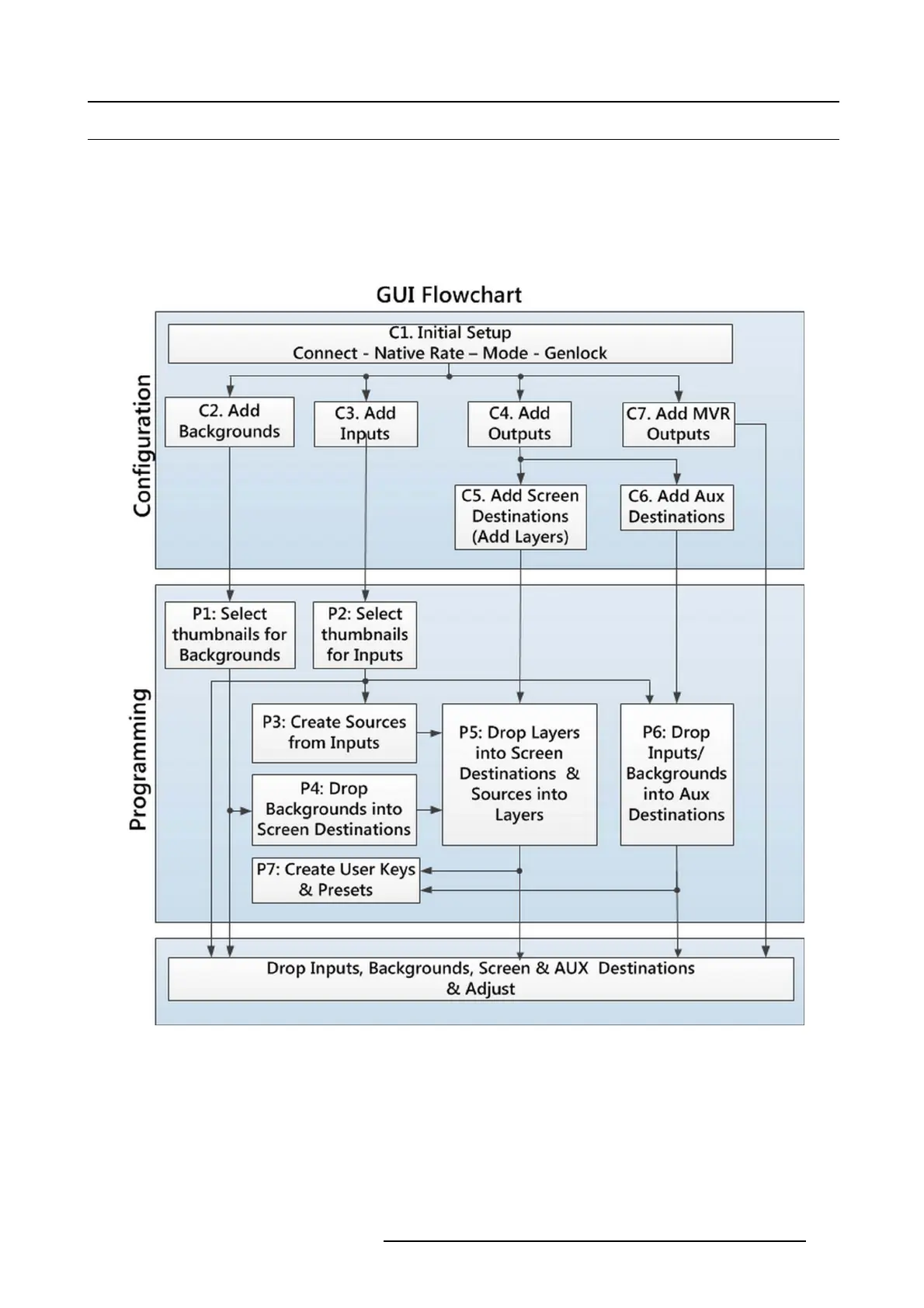

Workflow Diagram
This diagram sho ws all the steps necessary to se tup the system.
Image 9-4
Set up from A to Z
As outlined in the previous chapter the control software is divided in 3 parts:
1. Configuration Menu. In this section users define the system componen ts like inputs, backg rounds, outputs and destinations.
See the detailed procedure in s ection"Configuration Menu", page 266.
2. Programming Menu. In this page users create sources from inputs, drop layers and backgrounds into s creens and create User
keys and presets. See the detailed procedure in section "Programming M enu", page 271.
3. Multiviewer (MVR) M
enu is the module use d to s etup the Multiviewer outputs (on one or two monitors). See the detailed proc e-
dure in section "Multiviewer (MVR) Menu", page 282.
