10. Controller orientation
10.7 EC-200 backside overview
Overview

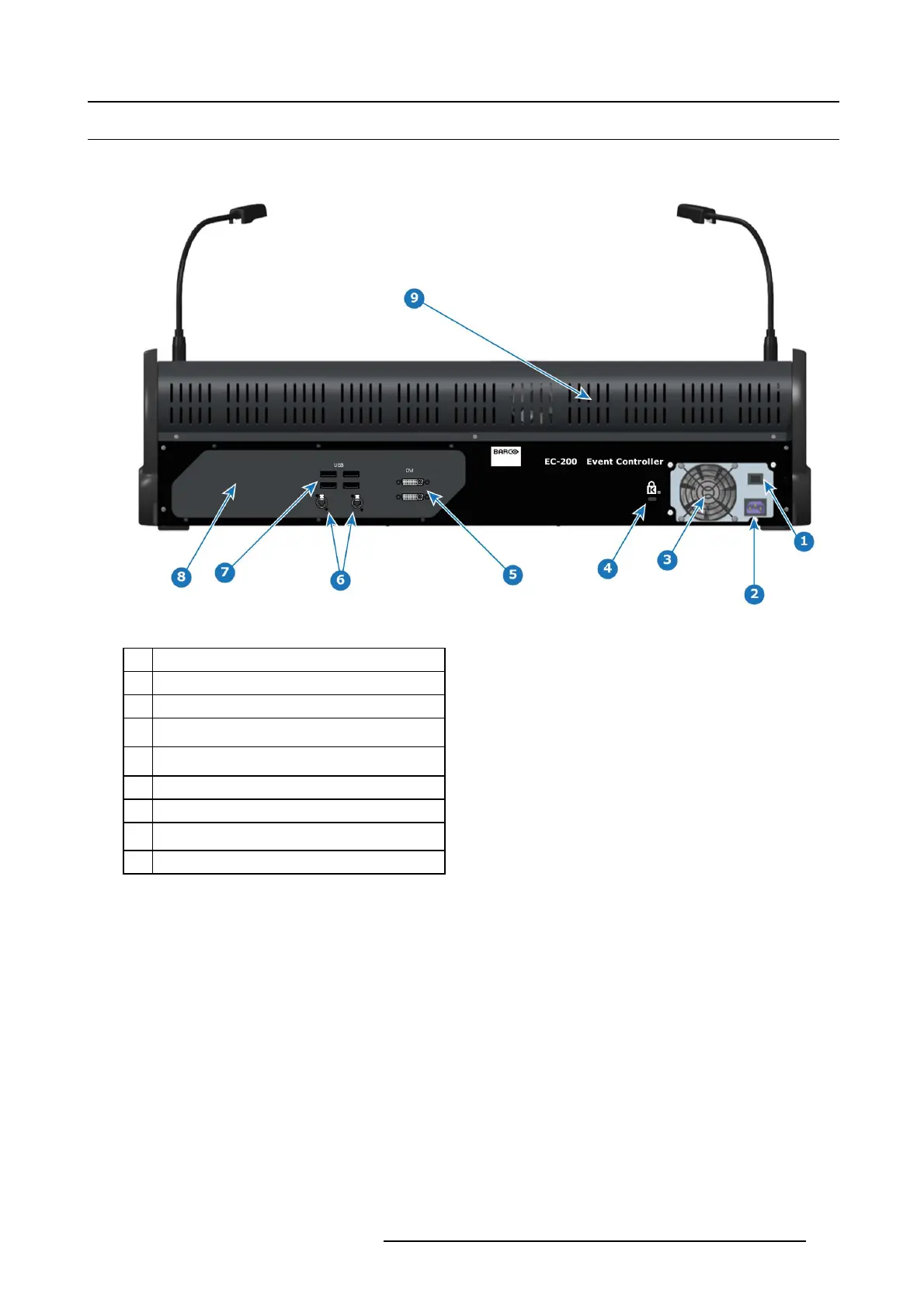

Image 10-7
EC-200 backside overview
1 P ower switch
2 P ower c onnector
3
PSU fan outlet, not to be blocked.
4
2x DVI Output connector for a standard HD DVI
signal
5
4x USB A c onnectors for U SB peripherals, such as
mouse and keyboard
6 2x Ethernet RJ45 network c onnectors
7
Optional accessory location for future expansions
8 K ensington Lock attachment point
9
Red effects light (located behind rear vent holes)
