14. S3 Maintenance
14.12 VFD D isplay Assembly
Image 14-27
Before you proceed removing the VFD Display m ount you need to rem ove the Front Cover Assemb ly as o ut-
lined in the related procedure
Concerned parts
R767241K V FD Display Assembly
Necessary tools
1 x Phillips Screwdriver #2
How to r emove the VFD Display Ass embly
1. Turn the Front Cover over and remove the four screws (4-40X.25) that sec ure the VFD display assembly to the front panel mount.

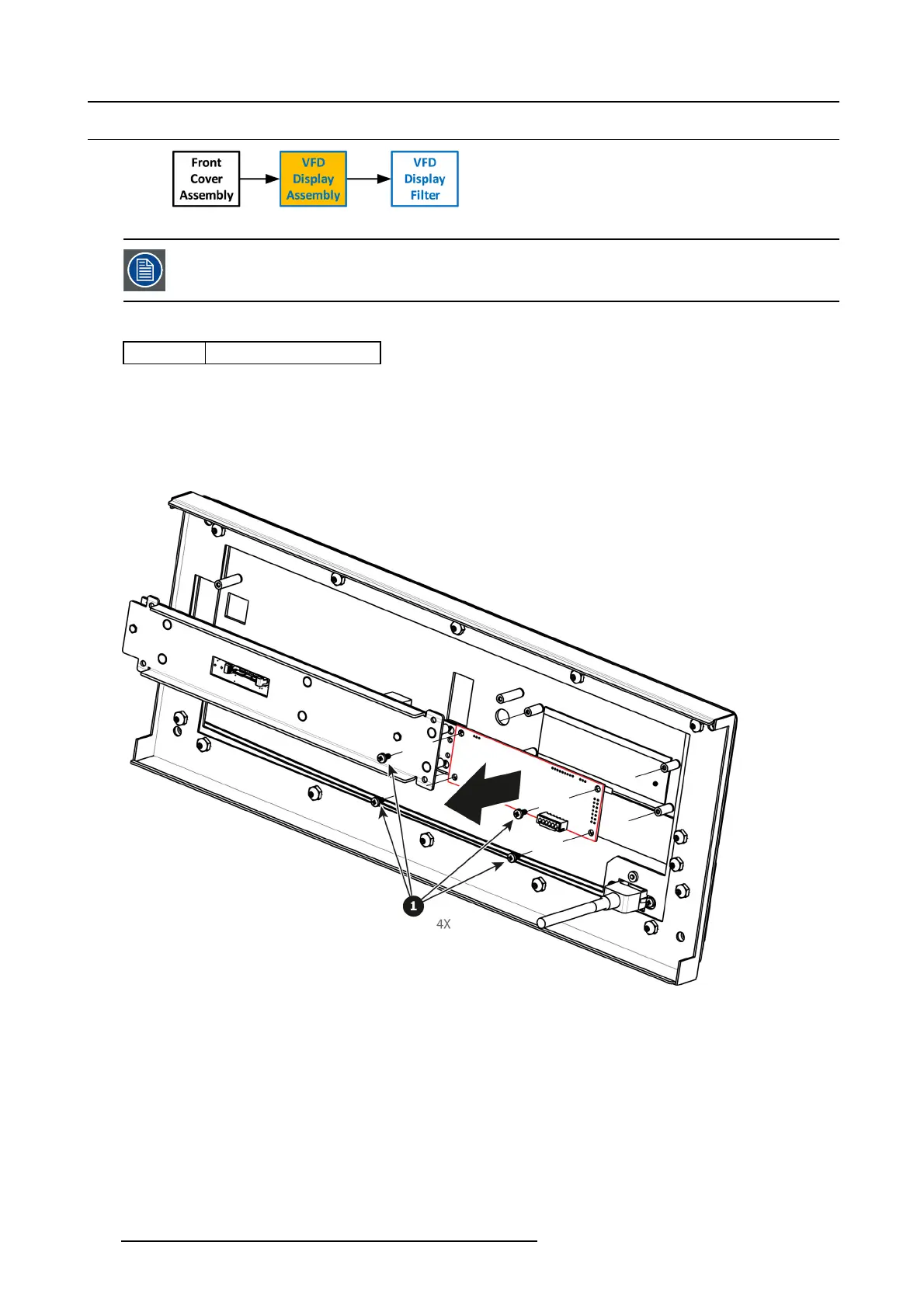

Image 14-28
How to ins tall the VFD Display Assembly
To install the VFD Display As sem bly follow the same procedure in the reverse order.
