13. E2 Maintenance
How to install the 1RU Fan Tray
Follow the same procedure in the reverse order and in addition per form the following:
1. Pass the U SB and VFD cable through the grommet.

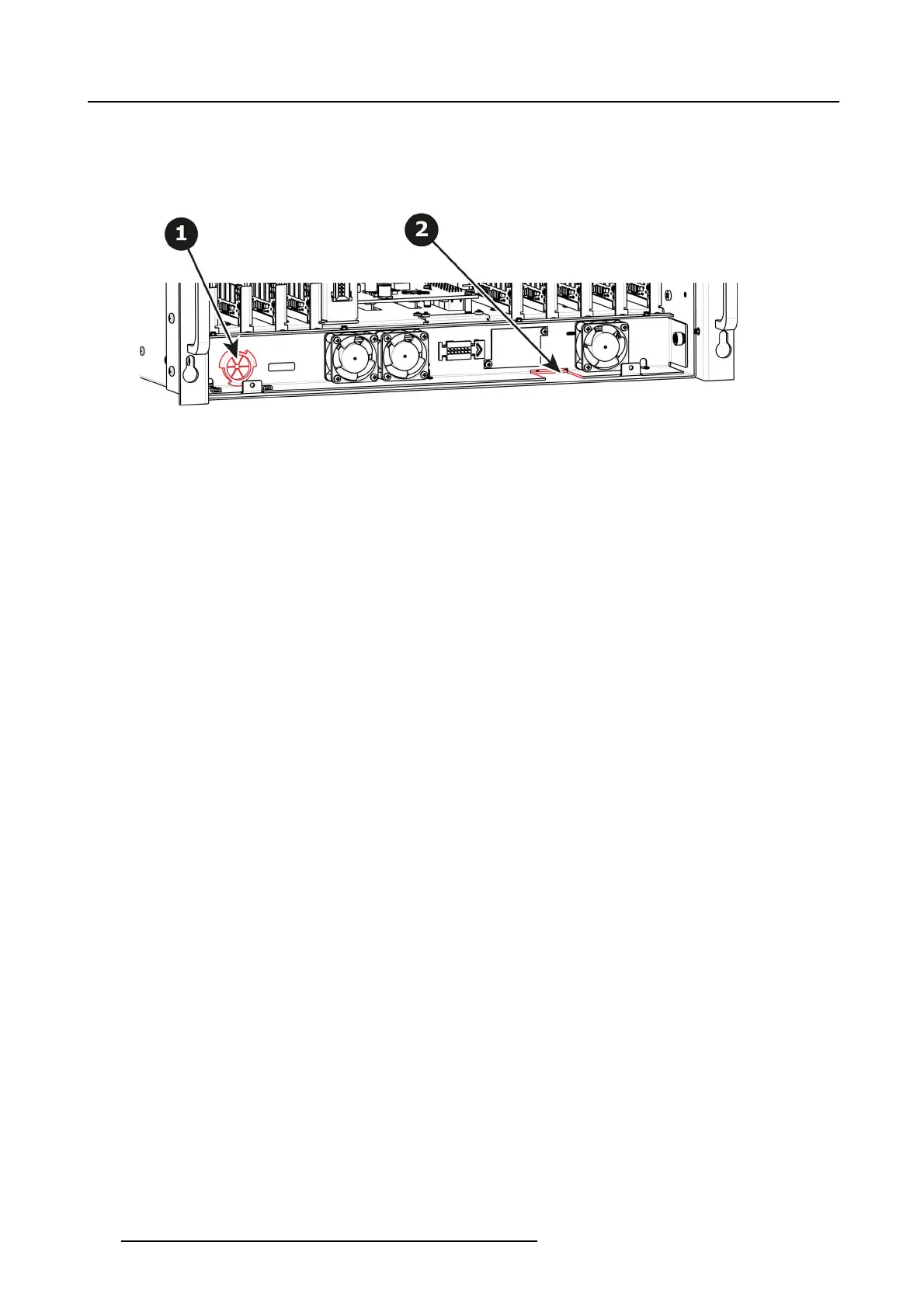

Image 13-23
2. Make s ure that the front panel flat cable goes through the slot located on the right hand side.
3. Line up the connector behind the fan tray and the c onnector on the bracket behind it and push so the two connectors mate.
364 R5905948 EVENT MASTER DEVICES 17/07/2017
