12. Controller Operation

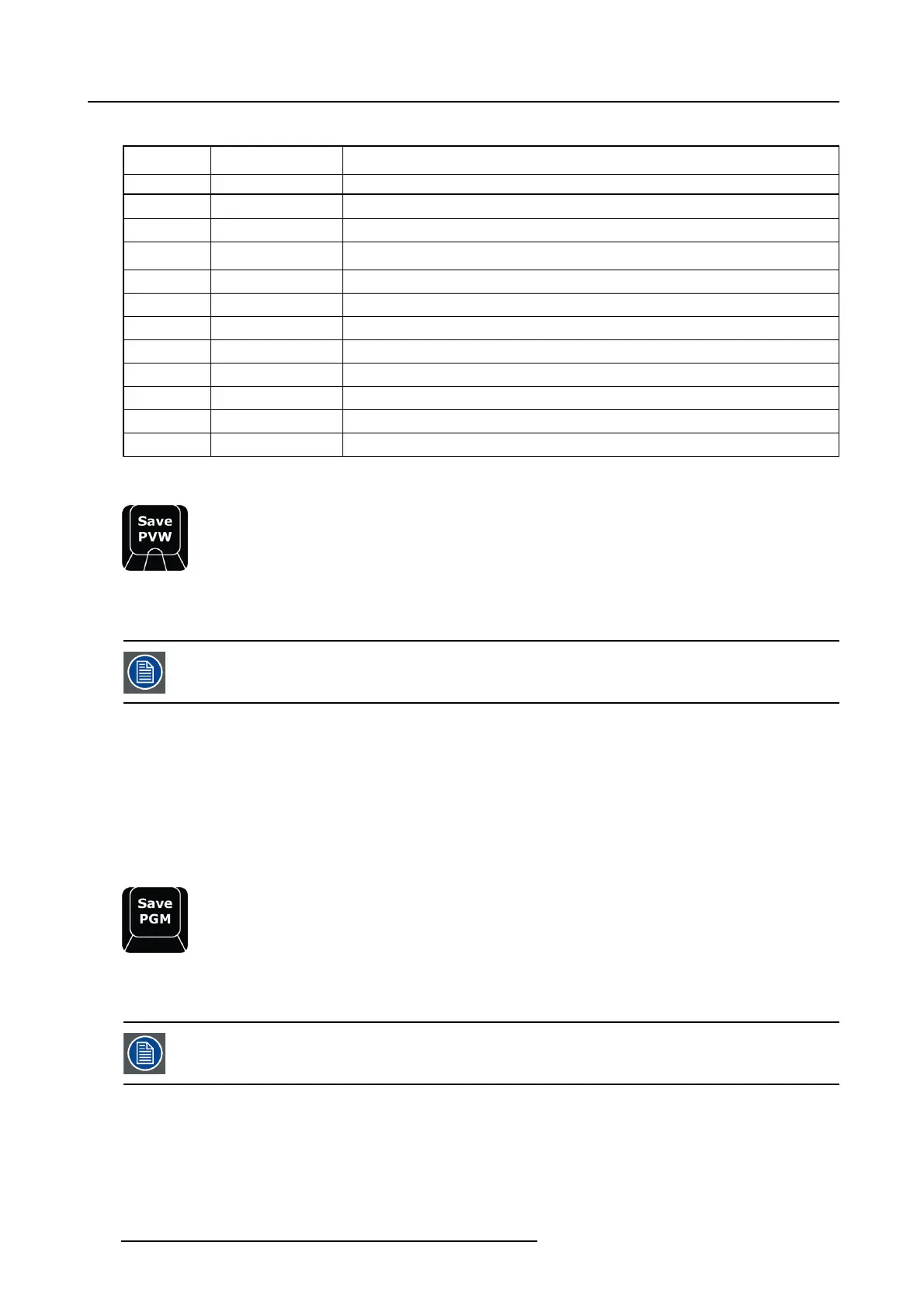

PAGE 2 via PG Do w n (Page1viaPG Up re spectiv e ly):
Contextual
Button
Display Description
CD1 Config 3 Applies the Config Page to the left screen of the c onsole
CD2 Program 3 Applies the p rogramming page to the right screen of the con sole
CD3
MVR 3
Applies the MVR Setup page to the L eft screen of the console
CD4 Config 4 Applies the Config Page to the right screen of the c onsole
CD5
Program 4
Applies the p rogramming page to the right screen of the console
CD6
MVR 4
Applies the MVR Setup page to the L eft screen of the console
CD7 Console 3 Applies the Console Setup page to the Left screen of the console
CD8 Web 3 Applies the Web preset page to the Left screen of the cons ole
CD9 Blank
CD10 Console 4 Applies the Console Setup pa ge to the Left screen of the console
CD11 Web 4 Applies the Web pr eset page to the Left screen of the console
CD12 Dest Show/Hide Reveals or hides the Destination banner in the Left screen
Save PVW (Save Preview)
Image 12-19
Once pressed this button latches the function “Save from PVW M ode” and lights its GRE EN led. This allow storing 1 or several
Templates / P resets or Cue´s after the syntax from Preview.
When the LED is RED, it indicates that the Save PG M button turned the EC-200 in “Save P G M Mode”.
Example of use:
• PRESET # ENTER → Pres et # is stored from Preview as new preset.
• PRESET # ENTER → Pres et # is o verw ritten from Preview if it exists.
• PRESET ENTER → Next free preset number is created from Program.
If either Save PVW or Save PGM is latched and the other is pressed it cancels the previous latch.
The GUI Button Save PVW will turn red to indicate the latched record state.
Save PGM (Save Program)
Image 12-20
Once pressed this button latches the function “ Save from PGM Mode”. This allows storing 1 or several Templates / Presets or Cue´s
after the syntax from Preview.
As the Button does not have a LED internally it will light up the LED of the Save PVW button in Red.
Example of use:
• PRESET 5 ENTER → Pres et 5 is stored from Program as new pres et.
• PRESET 5 ENTER → Pres et 5 is o verw ritten from Progra m if it exists;
• PRESET ENTER → Next free preset number is created from Program.
If either Save PGM or Save PVW is latched and the other is pressed it cancels the previous latch.
344
R5905948 EVENT MASTER DEVICES 17/07/2017
