12. Controller Operation
As the Button for Save PG M does not have an internal LED the GUI also must indicate that the button is latched. The GUI Button
Save PG M will turn red to indicate the latched record state.

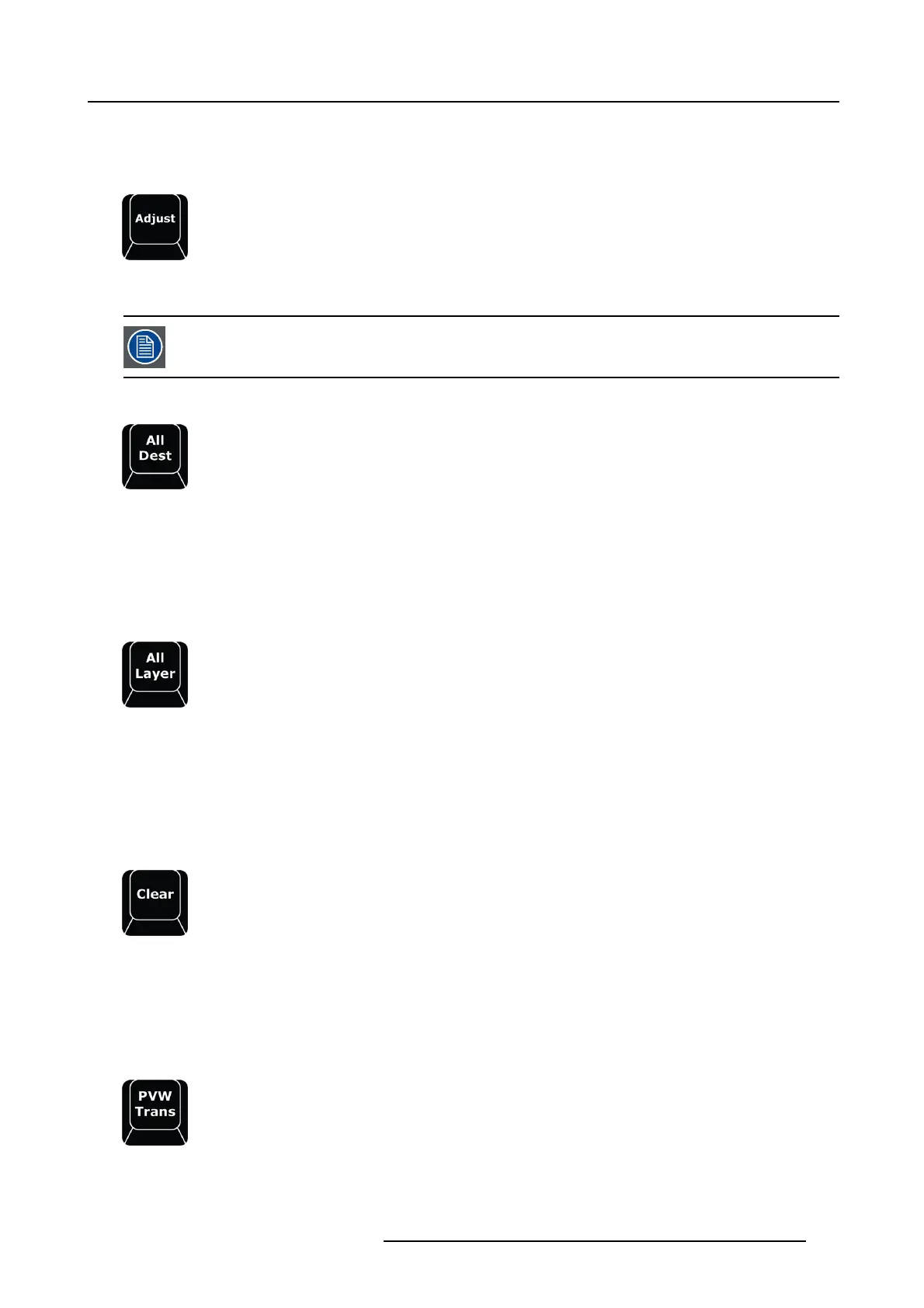

Adjust
Image 12-21
The Adjust button provides a shortcut to and open the Adjust tab of the S elected function.
If nothing is selected that has information that goes in the Adjust tab, it will still open and be empty.
All Dest
Image 12-22
All Dest provides a shortcut to selects all D estinations for furthe
r actions. And with Press and Hold have extended function.
A Single press selects all destinations.
When pressed and held and then butto n CLEAR is tapped, All Destinations are un-selected.
When pressed and held and then button BARC O EYE is tapped, the selection is inverted.
All Layer
Image 12-23
All Layer pr ovides a shortcut to selects all Layers o
f selected destinations for further ac tions. And with Press and Hold have ex-
tended function.
A S ingle press s elects all Layers.
When pressed and held and then button CLEAR is tapped, All Layers of selected Destinations are un-selected.
When pressed and held and then button BARC O EYE is tapped, the selection is inverted.
Clear
Image 12-24
The Clear button has many functions and c
learing selections and operands are often used in programming. Mos t of t he CLEA R
functionality has been included with e ach button and is not repeated here. The simplest function of CLEAR is:
• Clears th e current selection of the latest selected DES T / LAYER / S OU RCE / DEVICE to unselected.
After that it becomes more of a modifier w ith other buttons.
PVW Trans
Image 12-25
Currently selected layers in Preview will pr eview its effect (move) without s howing on program.
R5905948 EVENT MASTER DEVICES 17/07/2017 345
