13. E2 Maintenance

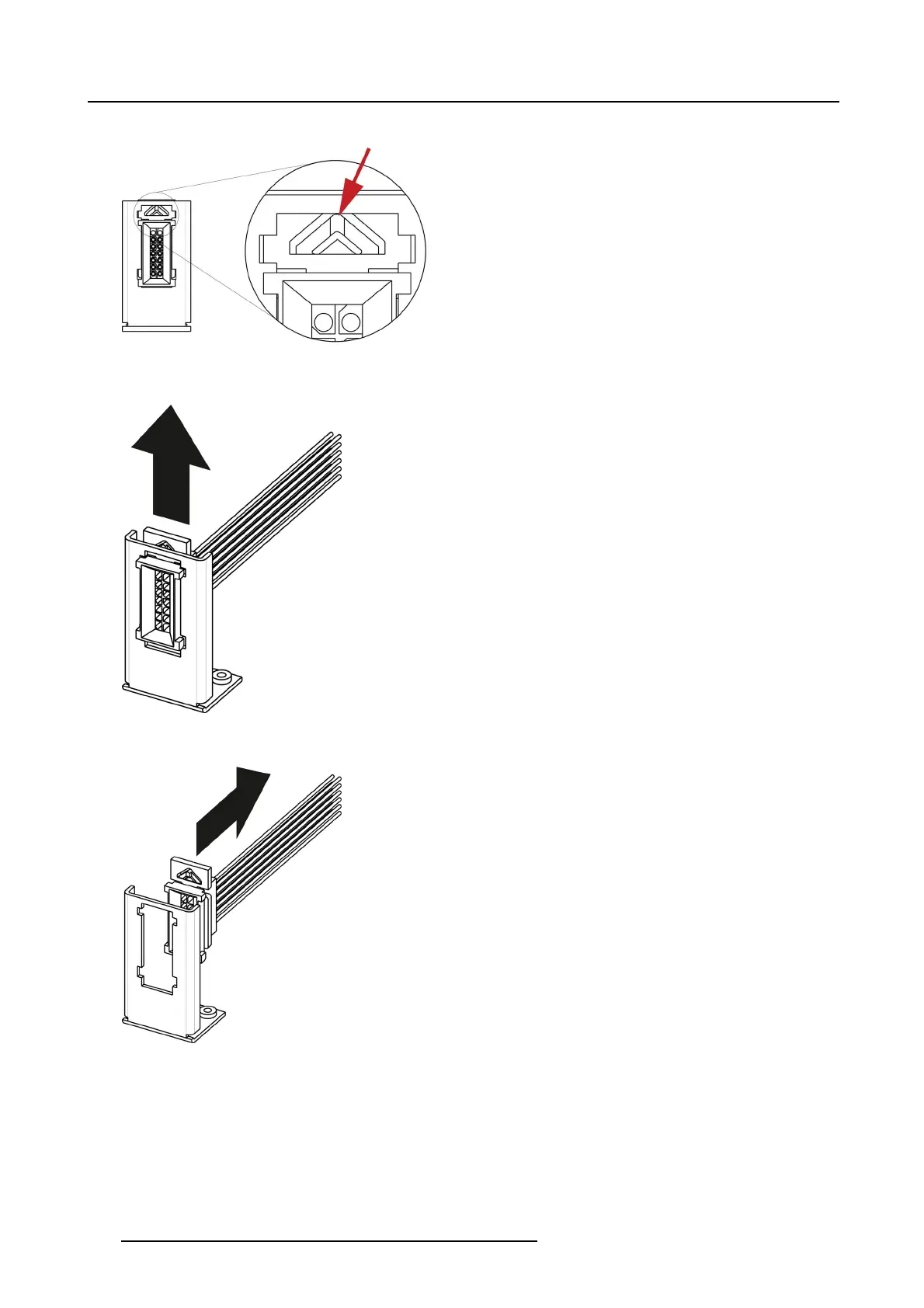

3. Locate the snap lock on the top of the connector and pu sh it back to release the connector from the bracket.
Image 13-78
4. Push the connector up until the slots in the metal bracket align with the flanges on the connec tors.
Image 13-79
5. Gently pull the 3RU cable assemb ly away from the bracket.
Image 13-80
6. Turn the unit upside-
down and remove the bottom panel.
7. Locate the 3RU cable that is plugged on the System-Power board.
402
R5905948 EVENT MASTER DEVICES 17/07/2017
