13. E2 Maintenance

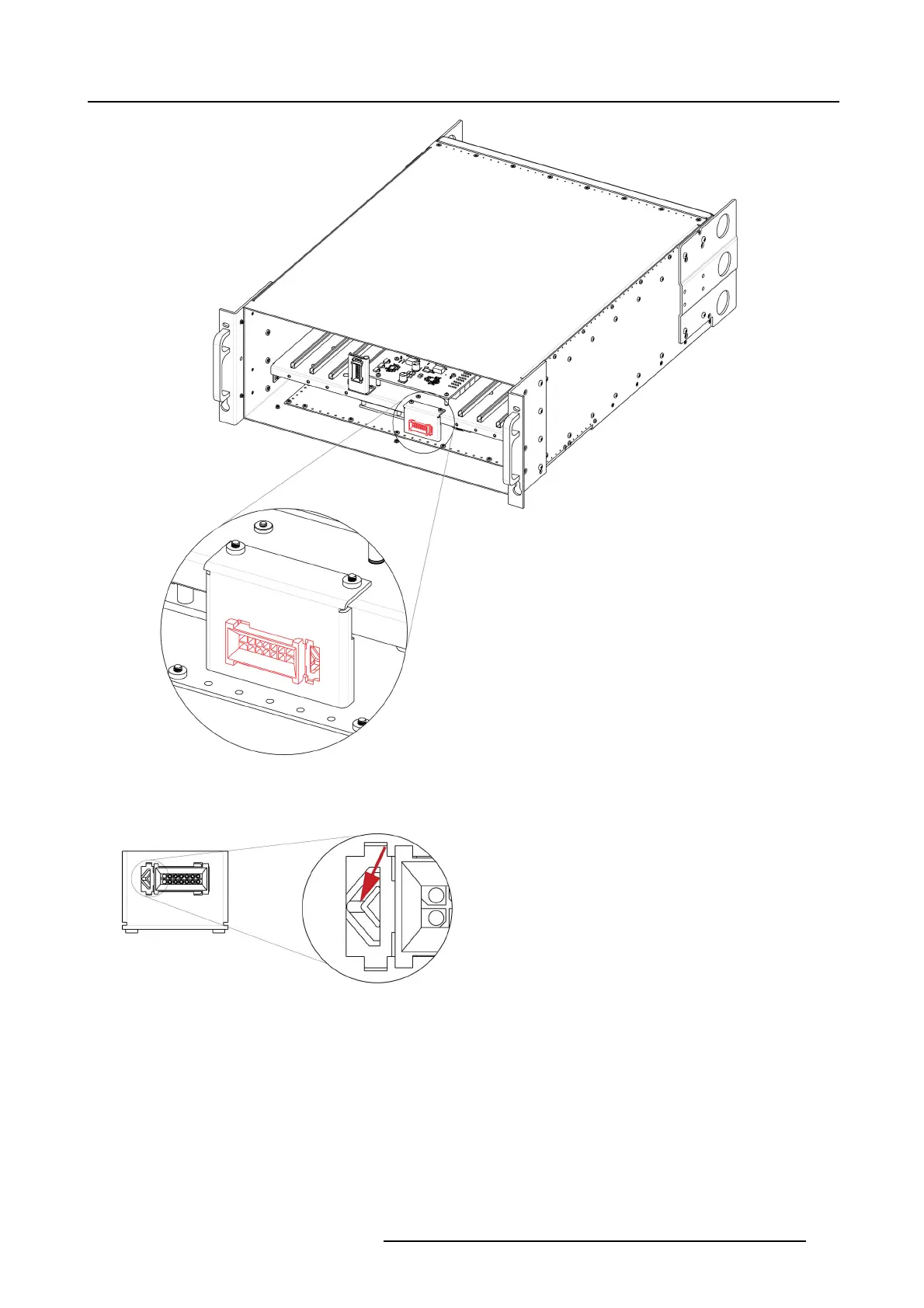

Image 13-83
3. Locate the snap lock on the connector and push it back t o release the connector from the bracket.
Image 13-84
4. Push the connector to the left until the slots in the m etal bracket a lign with the flanges on the connectors.
R5905948 EVENT MASTER DEVICES 17/07/2017
405
