14. S3 Maintenance

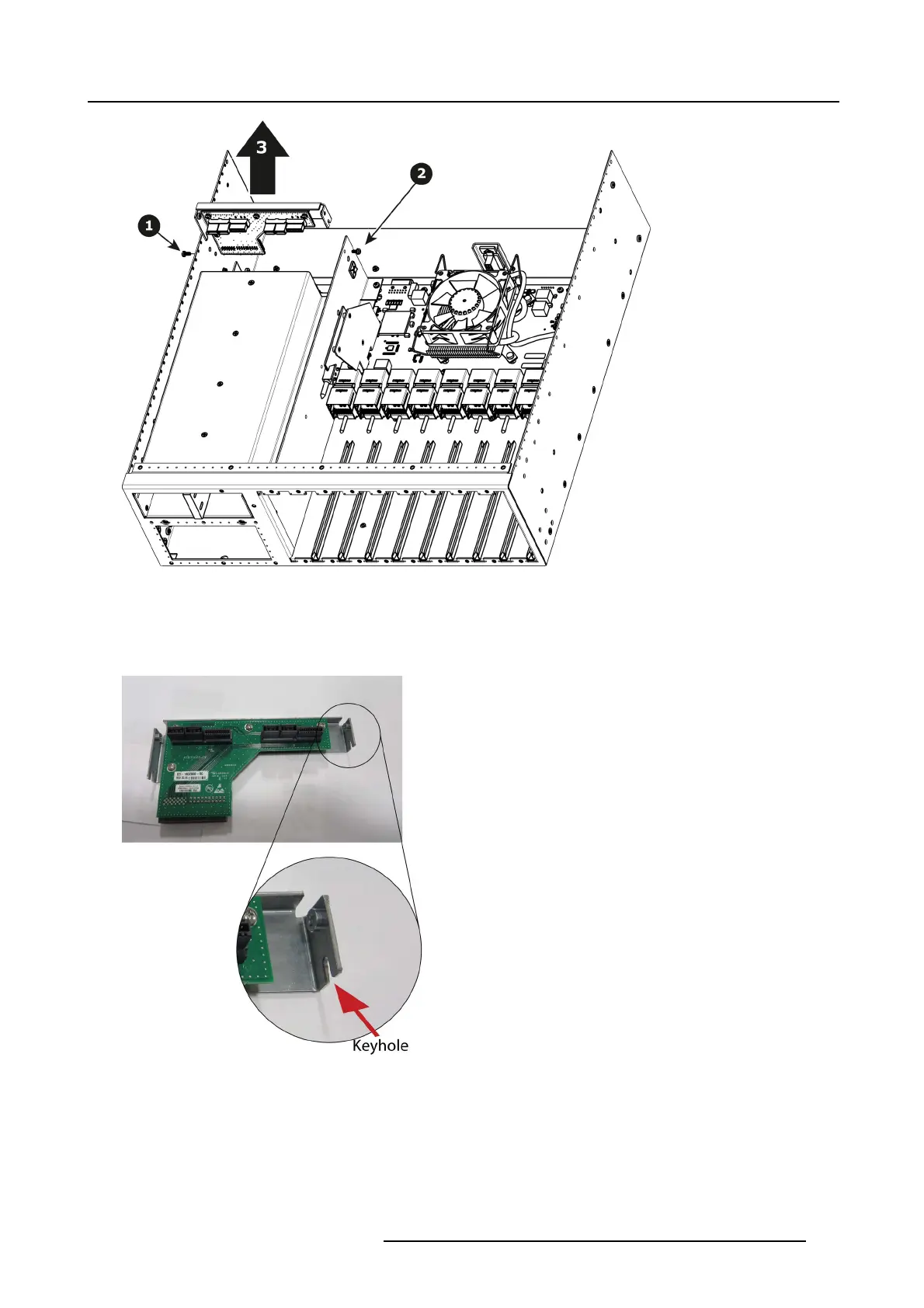

Image 14-56

How to install Power Interposer Assembly

1. Install the Power Interposer As sembly and guide onto keyhole features in the sheet metal.

Note: Push the Power Interposer As sem bly completely inside the connector onto the m otherboard. A pply a little pressure until

it is fully inserted.

Image 14-57

2. Install the two screws.

R5905948 EVENT MASTER DEVICES 17/07/2017

451
