15. EC-50 Maintenance

EC-50 Spare Parts list

P/N

Description

Comments

R767327K

KIT D E SKLIGHT EC-50 1x work light ( ﬂexible support with XLR connection)

Fuse

Speciﬁcations:

Size

5x20mm

Amp Rating 5A

Voltage Rating 250V

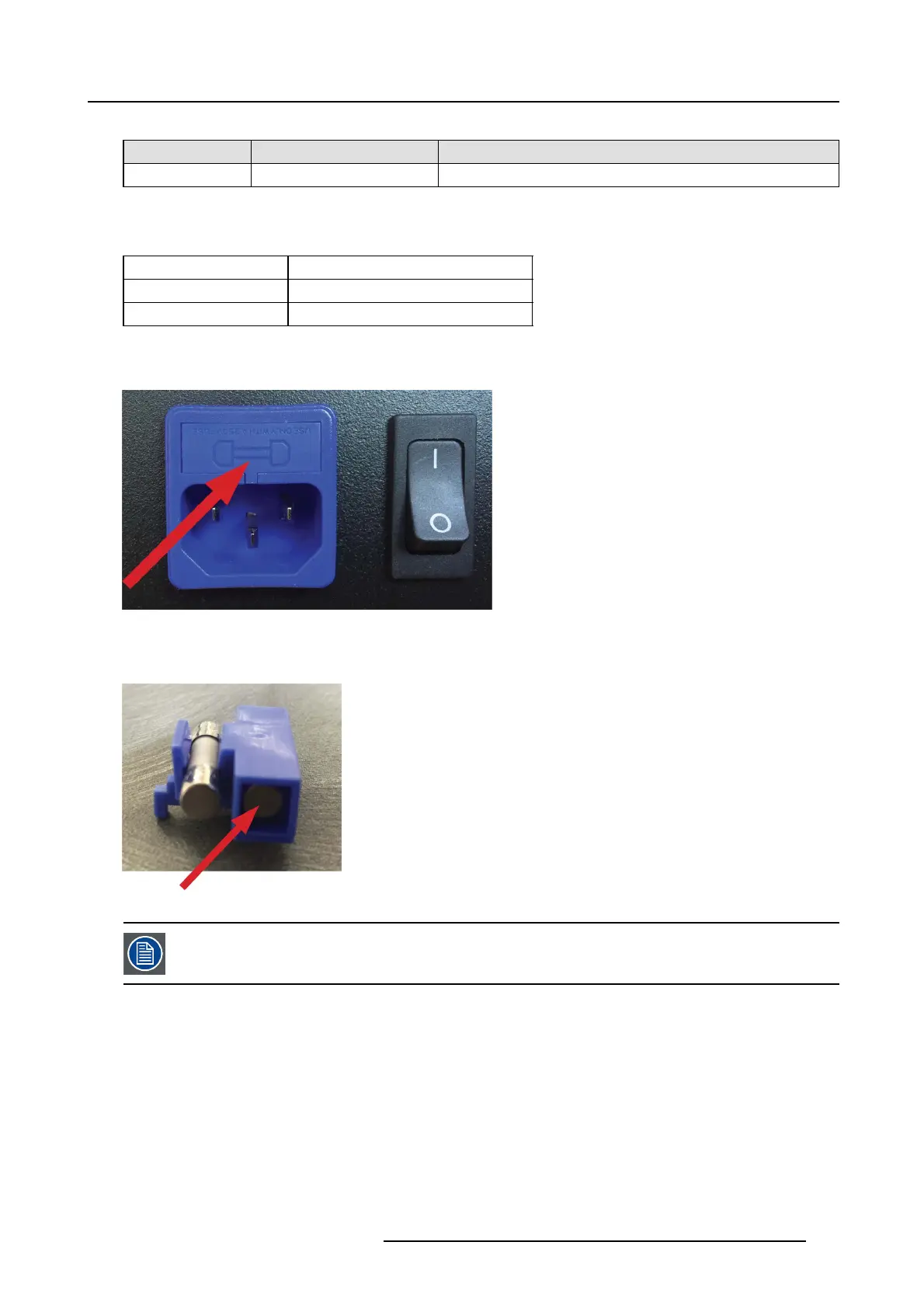

Loca tion:

The fuse compartment is located above the power supply connector.

Image 15-3

Spare fuse location:

A spare fuse is a vailable in the fuse compa rtment.

Image 15-4

It is strongly recommended to quickly buy

a new fuse when the spare fuse is u sed.

How to change power supply fuse:

R5905948 EVENT MASTER DEVICES 17/07/2017

479
