GE Voluson S8 - Page 53

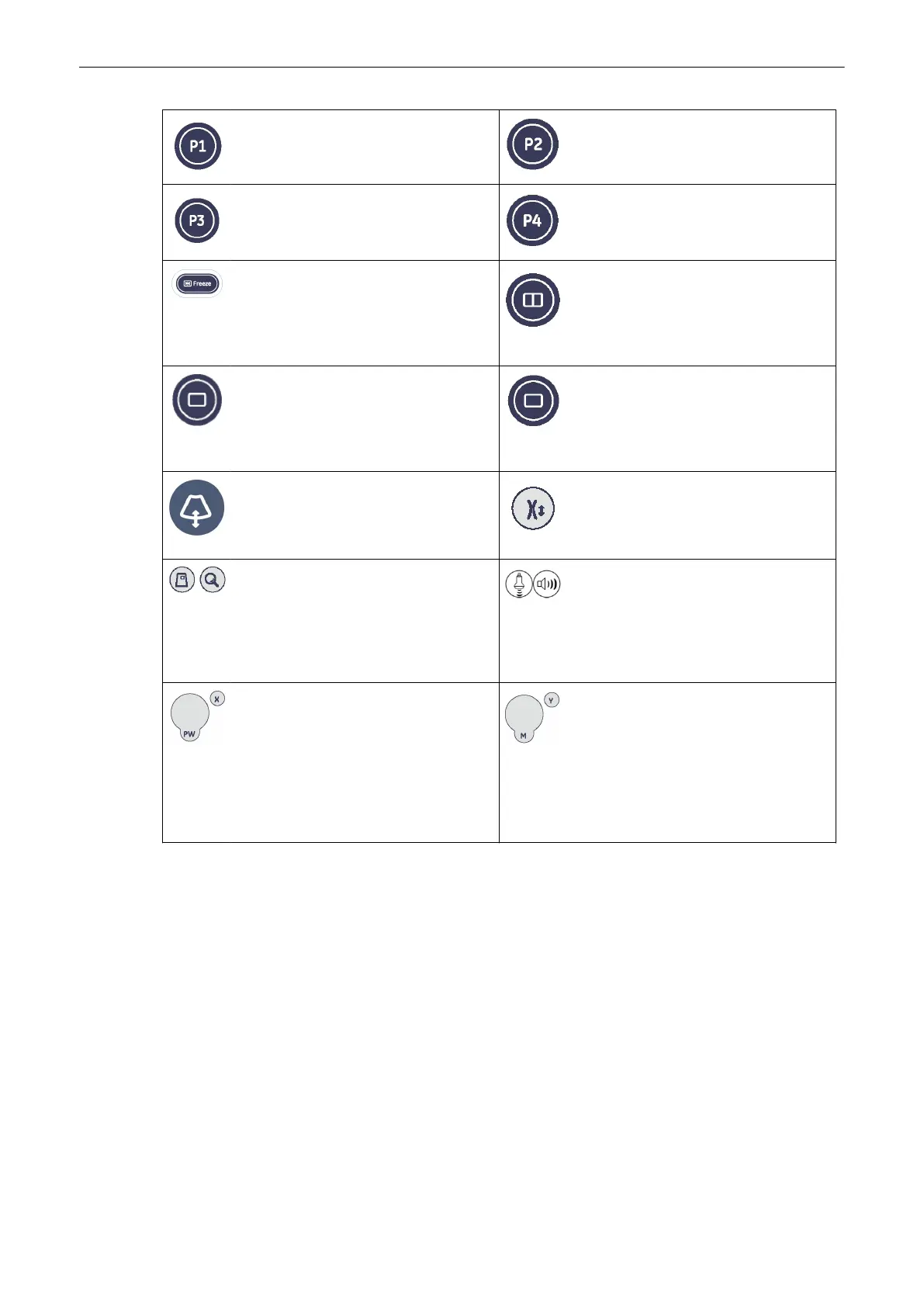

P1
For more information see 'P-keys' on
page 14-4.
P2
Programmable key,
For more information
see 'P-keys' on page 14-4.
P3
Programmable key,
For more information
see 'P-keys' on page 14-4.
P4
Programmable key,
For more information
see 'P-keys' on page 14-4.
Freeze/Scan (Read/Write)
When bright: image is frozen (freeze
mode). When dark: real time scan (scan
mode).
For more information see 'To
Freeze an Image'
on page 4-9.
Dual-Screen Format (vertical distribution)
Select the display format (Dual screen
display) in 2D and 3D image mode.
For
more information see 'Multi Format' on
page 6-10.
Quad-Screen Format
select the display format (Quad screen
display) in 2D and 3D image mode.
For
more information see
'Multi Format' on
page 6-10.
Single-Screen Format
Select the display format (Single screen
display) in 2D and 3D image mode.
For
more information see
'Multi Format' on
page 6-10.
Depth (flipswitch)
Select the display depth of the 2D image
using the flip switch.
For more information
see '2D Mode Depth' on page 6-4.
Focus (flipswitch)
Select position of transmit focus using the
flip switch
For more information see
'Transmit Power' on page 6-6.
HR Zoom/ Pan Zoom (digipot)
Allows you to modifiy the Zoom ROI and
choose a Zoom mode.
For more information see 'Zoom' on page
6-13.
Acoustic Output (digipot) and Doppler
sound
Adjusts the Ultrasound emission power of
a probe and doppler sound.
For more
information see 'Transmit Power' on page
6-6.
Pulsed Wave Doppler (on/off)
Pressing activates/deactivates the PW
Doppler mode. Functions depend on
current probe. Rotating allows setting of
the PW mode gain within the probe-
defined range.
For more information see
'Pulsed Wave Doppler Mode (PW Mode)'
on page 8-2.
Motion Mode (on/off)
Pressing activates/deactivates the M
mode. Functions depend on current
probe. Rotating allows setting of the M
mode gain within the probe-defined
range.
For more information see Chapter
7.
Description of the System
Voluson® S6/S8 Basic User Manual
5433669-100 Revision 4 3-13
