6 Input/Output
6.7 Output
Annotation None (but error message appears when on)
Status Bits/OPC
dependencies
STATus:QUEStionable:INTegrity bit 1 is set when IF2 Out is ON. This indicates an error,
because no valid data is on the screen or available via SCPI. However, the signal at the IF2 Out port is
still valid given the other settings
6.7.11 REF Out

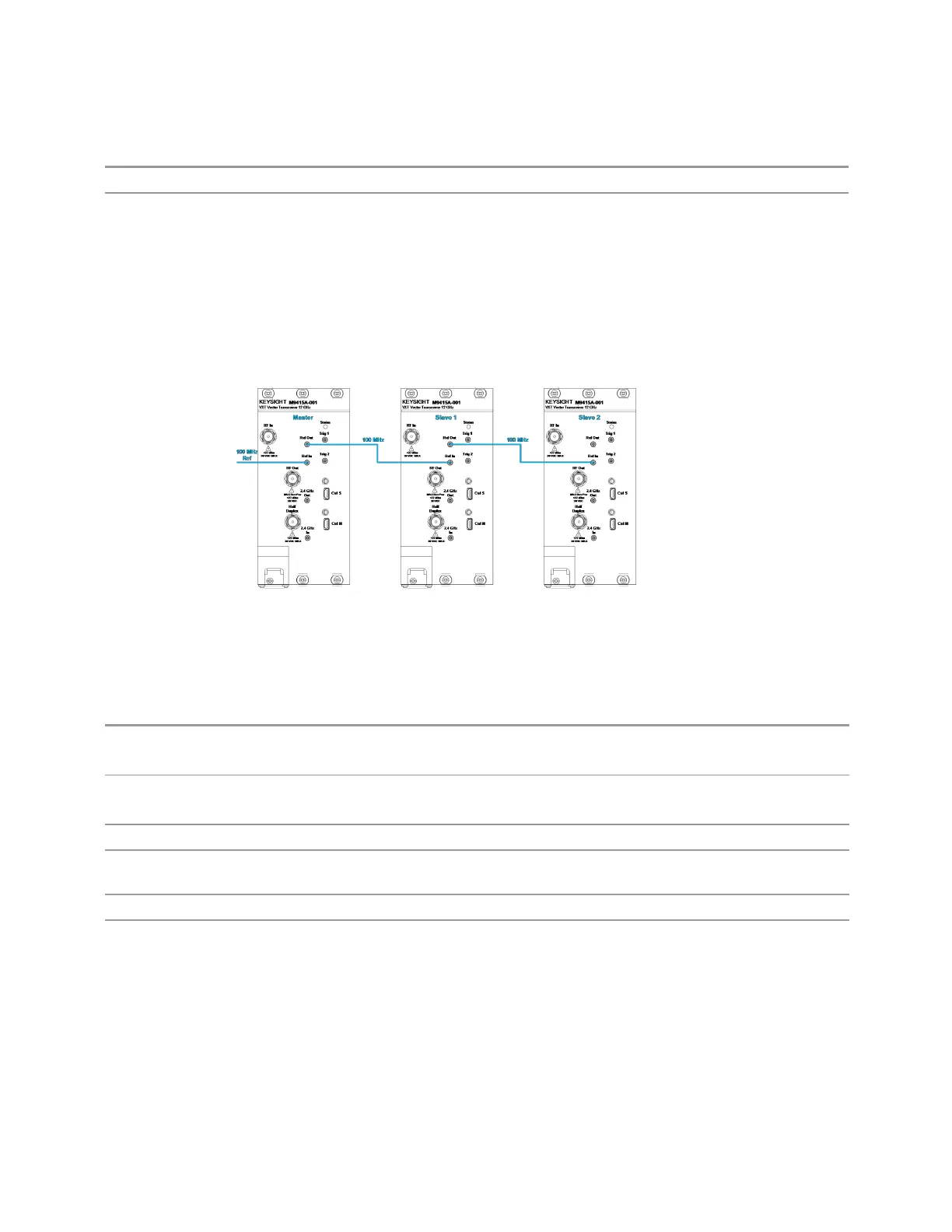

Lets you toggle the state of REF Out. The REF Out port is designed for MIMO, which
provides the reference daisy chain for the Primary and Secondary modules.
Remote Command
:OUTPut:EREFerence:OUTPut ON | OFF | 1 | 0
:OUTPut:EREFerence:OUTPut?
Example
:OUTP:EREF:OUTP ON
:OUTP:EREF:OUTP?
Notes Used to route the 100 MHz reference signal on the REF In port to the REF Out port
Dependencies Only available in VXT models M9415A/16A and M9415E/16E when Freq Ref Input is External, and Ext
Ref Freq is 100 MHz
Preset
OFF
Range
ON|OFF
6.7.12 LO Ref Out
Turns the LO Reference Signal Out on or off. LO Ref Out is used to provide reference
daisy chain in MIMO or Phase Coherency.
