Keysight x-series Programmer's Reference

6 Input/Output
6.9 Calibration
6.9 Calibration
Lets you configure the Comb Calibrator. This tab only appears when an RCal license
is installed. Settings associated with the Calibrator are configured here.
6.9.1 Configuration
Opens the dialog shown below. This is a full screen dialog. Configuring of Cals is
done using this dialog. The table consists of rows of Cals and Columns of Cal
settings. You can scroll or swipe vertically or horizontally to view Cals or settings not
currently shown on the screen.

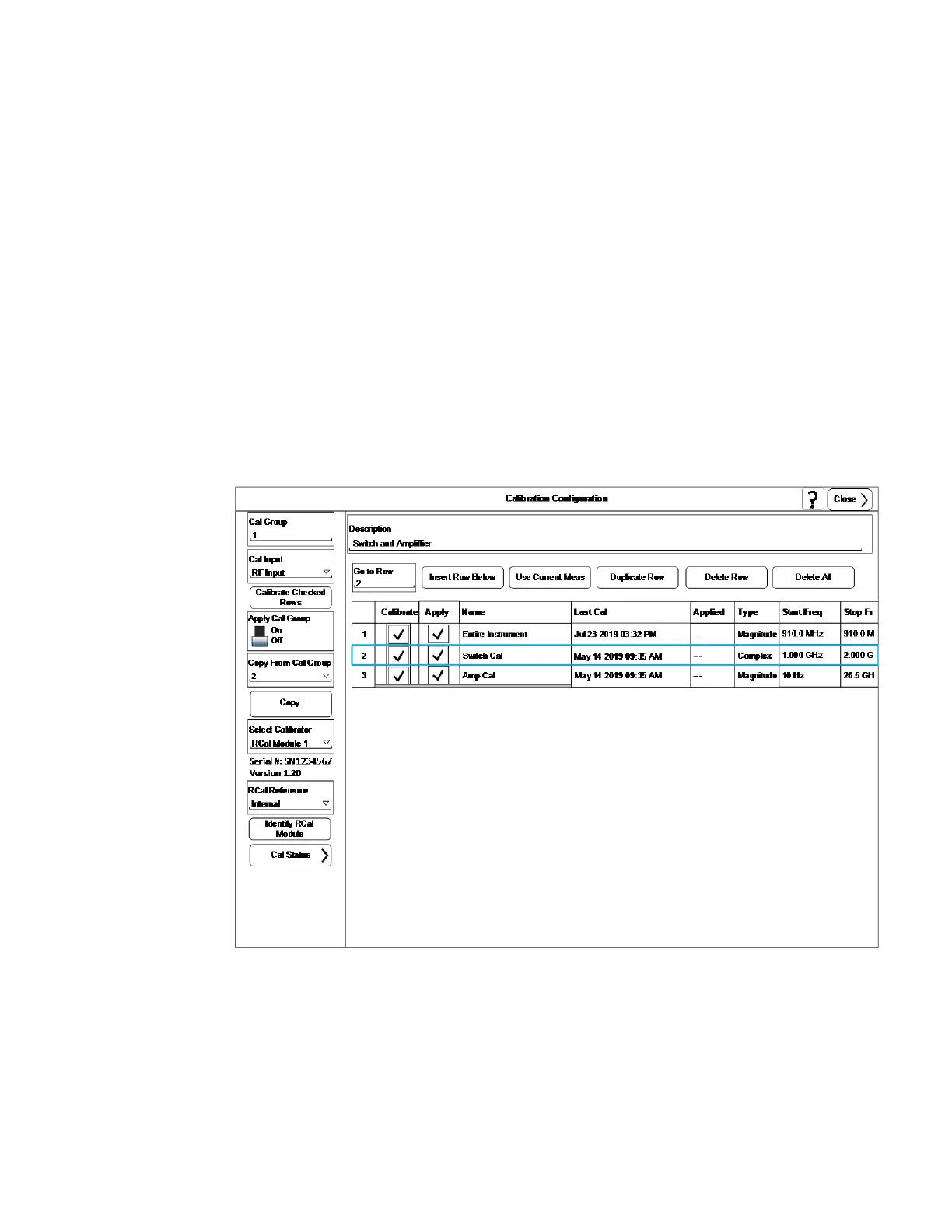

Dialog with Example Table entries:
Full Cal Group Table with Example entries:
Vector Modulation Analyzer Mode User's &Programmer's Reference 2272
