3 VMA Mode
3.9 SEM Measurement
Limits for Inner Offsets
Since inner offsets are defined from the sub-block edges to the gap, limits from two
sub-blocks overlap each other. Therefore, the limit used for inner offsets are the
cumulative sum of limits from both sub-blocks. Offsets can have different RBWs,
which must be compensated when accumulated.
For example, when offset A and D overlap, the limit of offset A is calculated as
follows.
Th

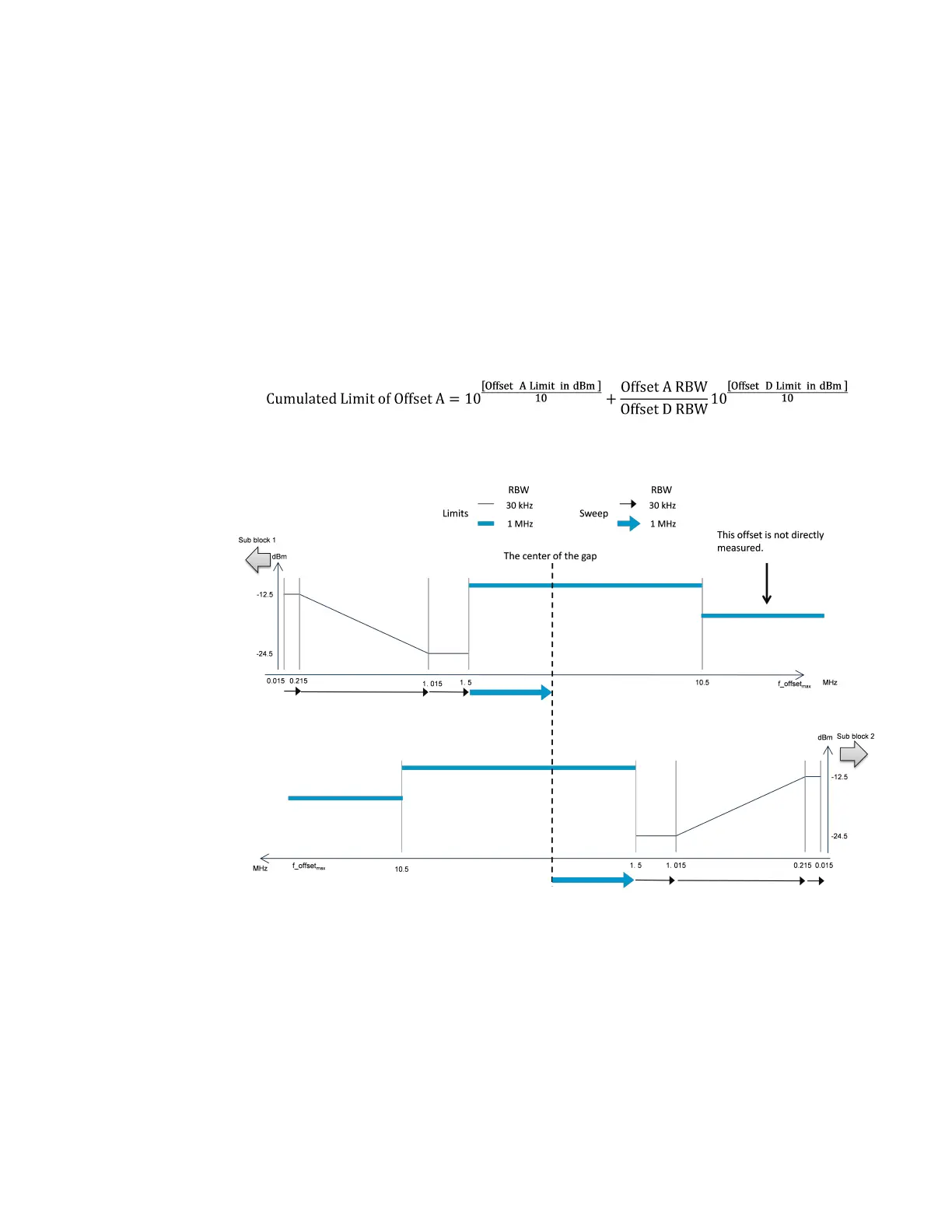

e diagram below depicts what inner offset limits look like.
Offset (Bandwidth)
Enables you to set up the bandwidth measurement parameters for offset pairs. For
example, you can assign the start and stop frequencies, and select the resolution
bandwidth.
Vector Modulation Analyzer Mode User's &Programmer's Reference 1482

Keysight x-series Specifications

General

Analysis Bandwidth	Up to 1 GHz (depending on model)
Real-Time Bandwidth	Up to 1 GHz (depending on model)
Form Factor	Benchtop
Connectivity	LAN, USB, GPIB
Resolution Bandwidth	1 Hz to 10 MHz (depending on model)
