SEQUENCER > EQ/X-Y/Controllers 1–5: X-Y Volume
471
1–5b: X-Y Graphic
X-Y Graphic
This shows a diagram of the vector space, including the five
points of the X-Y Envelope (labeled 0–4).
The transitions between the X-Y Envelope’s points are shown
by black lines, and the loop transition is shown by a gray line.
Show Volume Image [Off, On]
The X-Y graphic includes an image representing the X-Y
Volume Control settings for the current Track (see Track
Select, below). You can use the Show Volume Image check-
box to toggle this part of the graphic on and off.
Track Select [01…16]
This selects the Track whose volume image will be shown.
Show Point [X-Y Control,
X-Y Envelope Point 0…4]
You can view the volume and CC values for any of the EG’s
five points. This selects the point whose values will be shown.
Track Volume & CC Display
This read-only display shows the volume and CC values for
the current X-Y point, as selected by the Show Point
parameter, above.
Track 01
X-Y Assign [Off, +X, –X, +Y, –Y]
This assigns an axis of the Ve ctor to control the Track’s

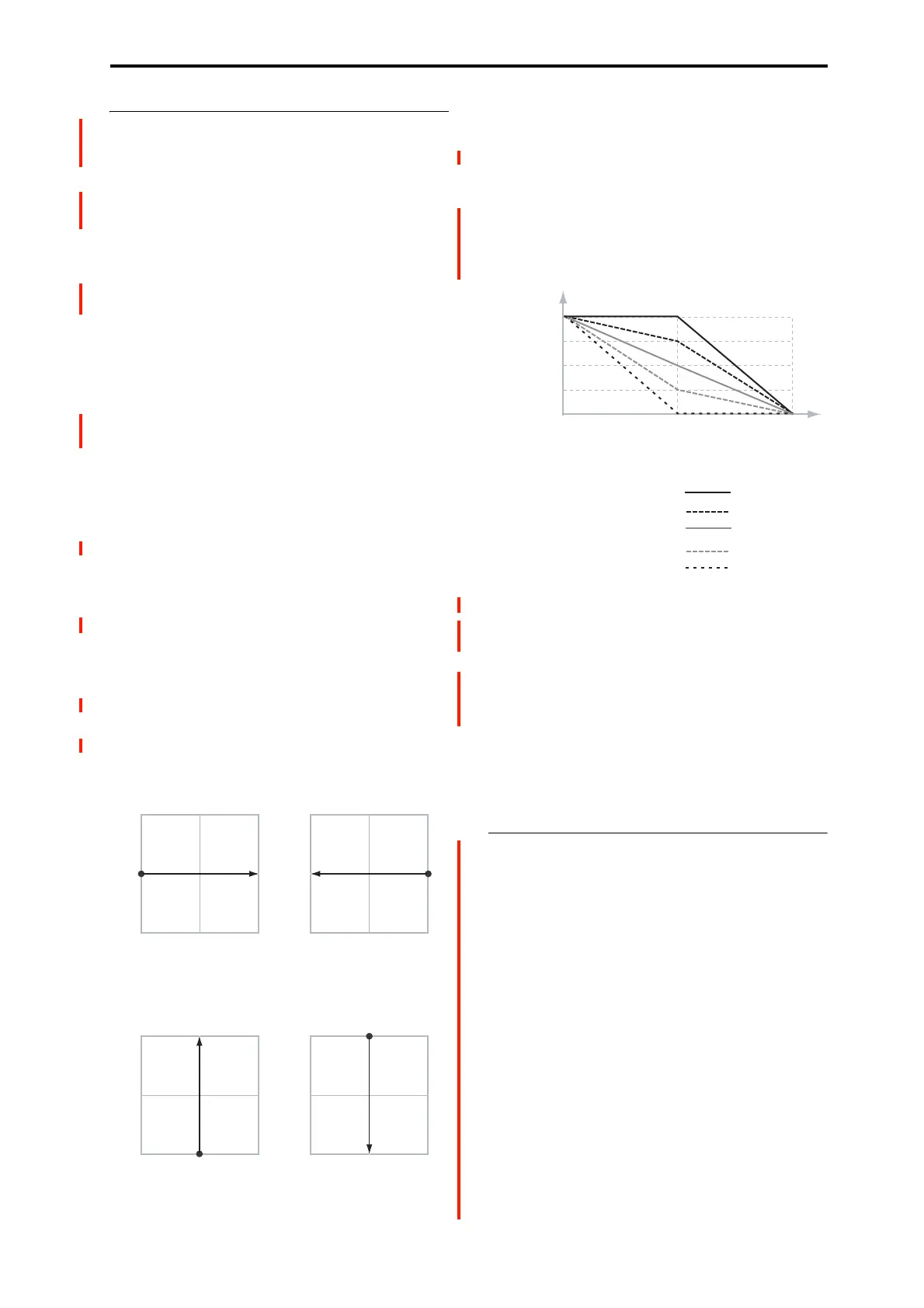

volume. See the diagram “X-Y Assign and Program
Volume,” below, for more details.
Off means that the X-Y position will not affect the Track’s
volume.
X-Y Assign and Program Volume
Center Volume [0, 25, 50, 75, 100%]
This sets the volume of Track 1 at the center point. It applies
only when Equal Amount, above, is set to Off.
The volumes at the extreme ends of the axis are fixed,
depending on the setting of the X-Y Assign parameter.
For instance, if X-Y Assign is set to –X, the Track will
always be at 100% volume on the left side, and 0% (silent)
on the right side.
This parameter applies only to the Song X-Y Volume
control, and does not change the Program’s individual X-Y
Volume settings.
Track Center Volume, X-Y Assign = –X
Enable Program X-Y Volume [Off, On]
When this is turned On, the Program’s X-Y Volume control
will function as it does in PROGRAM mode, crossfading
between Oscillators 1 and 2. The crossfade will be controlled
by the Program’s X-Y Envelope and is not affected by the
Song’s X-Y Envelope.
When this is turned Off, the Program’s X-Y Volume control
will be disabled.
Tracks 02–16
The parameters for Tracks 2–16 are identical to those for
Track 01, as described above.
v
1–5: Page Menu Commands
• Compare →p.112
• Memory Status →p.521
• Exclusive Solo →p.113
• Rename Song →p.521
• Initialize Song →p.522
• Copy From Song →p.522
• Load Template Song →p.522
• Save Template Song →p.523
• FF/REW Speed →p.523
• Set Location (for Locate Key) →p.523
• GM Initialize →p.523
• Copy from Combi →p.525
• Copy From Program →p.525
•PAGE →p.126
•MODE →p.126
+127–127 0
+X
0% 100%
+127–127 0
–X
100% 0%
Program volume increases
from left to right.
Program volume increases
from right to left.
+127
–127
0
+Y
0%
100%
+127
–127
0
–Y
100%
0%
Program volume increases
from bottom to top.
Program volume increases
from top to bottom.
Volume
50%
100%
0%
X-Y X-axis position
-127 0 +127
Center Volume Values: 100
75
50
25
0
