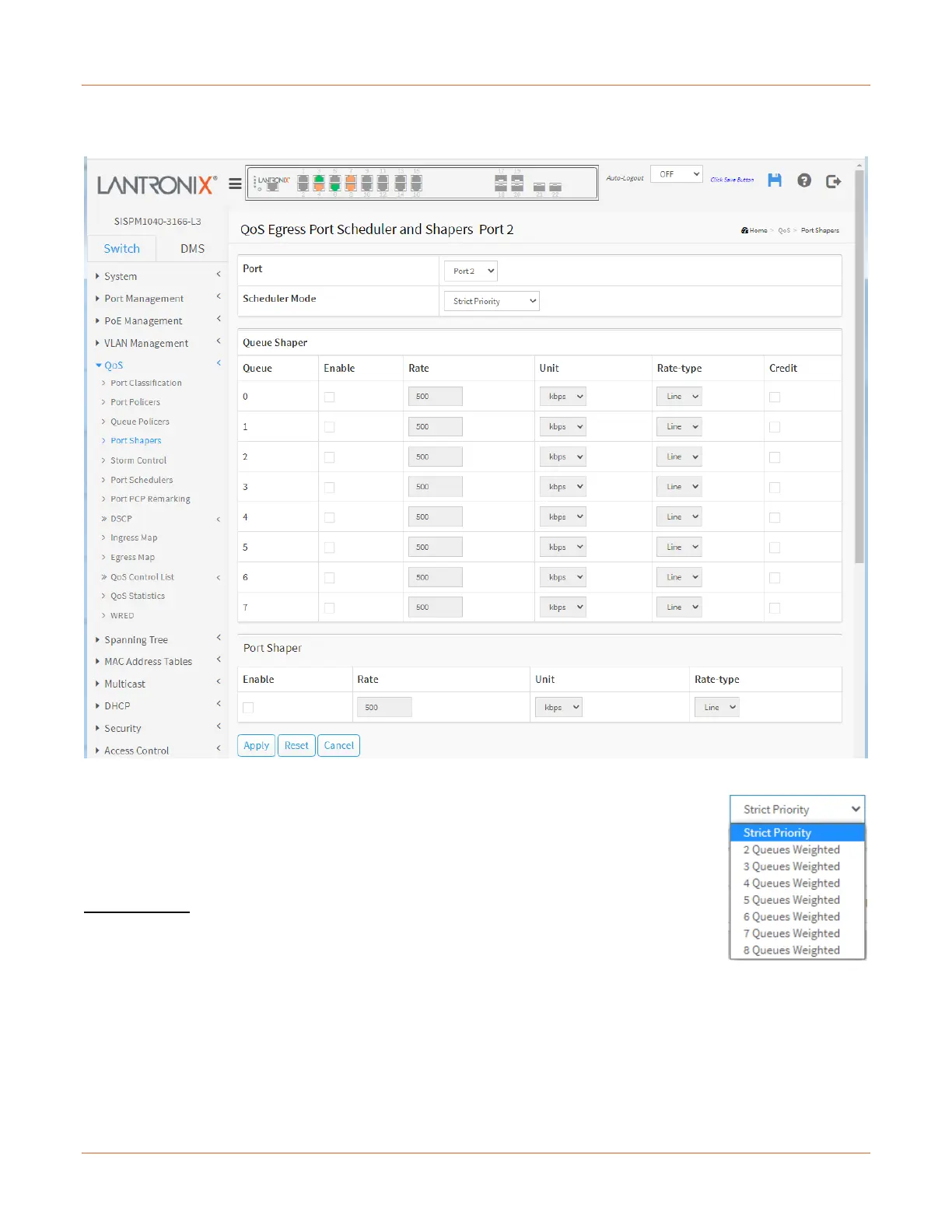

You can click on a port number in order to configure the schedulers. This page lets you configure the Scheduler
and Shapers for a specific port. The Port 2 page is shown below with Strict Priority Scheduler Mode selected:
Port: The port number.
Scheduler Mode: Controls how many of the queues are scheduled as strict and how many
are scheduled as weighted on this switch port. The possible selections are:
Strict Priority: Sets the Scheduler Mode to Strict priority (default setting).
2-8 Queues Weighted: Select 2 Queues Weighted – 8 Queues Weighted.
Queue Shaper
Queue: The queue number for the queue shaper.
Enable: Controls whether the queue shaper is enabled for this queue on this switch port.
Rate: Controls the rate for the queue shaper. This value is restricted to 100-13107100 when "Unit" is kbps, and 1-
13107 when "Unit" is Mbps. The rate is internally rounded up to the nearest value supported by the queue shaper.
Unit: Controls the unit of measure for the queue shaper rate as kbps or Mbps.
