Messages:
JSON RPC Error. (Port0 and Port1 cannot use the same interface)
JSON RPC Error. (Another ERPS instance has ring interfaces in common with this one and use the same control
VLAN and ring ID)
JSON RPC Error. (Ring type must be "major" when using G.8032v1)
JSON RPC Error. (Ring ID must be "1" when using G.8032v1)
JSON RPC Error. (Another ERPS instance has ring interfaces and protected VLANs in common with this one)
JSON RPC Error. (An interconnected sub-ring cannot use Port1 as RPL port)
JSON RPC Error. (An interconnected sub-ring cannot reference itself as its connected ring)
Port0 Domain must not contain leading digit

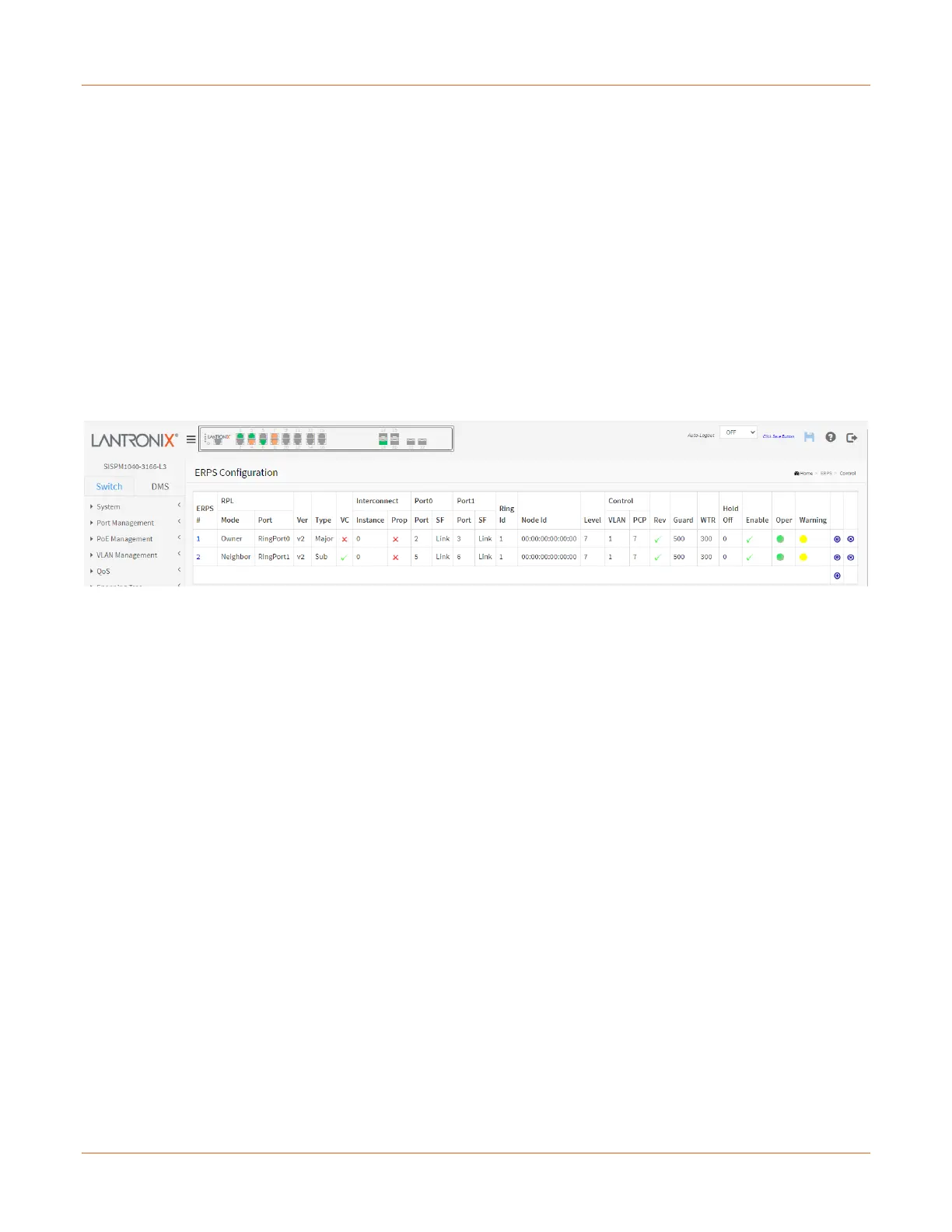

Example: Two ERPS instances configured:
ERPS # : The ID of ERPS. Valid range 1 - 64.
Mode: Ring Protection Link mode. Possible values:
None: This switch doesn't have the RPL port in the ring
Owner: This switch is RPL owner for the ring (G.8001-2016, clause 3.2.61)
Neighbor: This switch is RPL neighbor for the ring (G.8001-2016, clause 3.2.60)
Port: Indicates whether it is port0 or port1 that is the Ring Protection Link. Not used if RPL Mode is None.
Ver : The ERPS protocol version (v1 and v2 are supported).
Type: The type of ring. Possible values are:
Major: ERPS major ring (G.8001-2016, clause 3.2.39)
Sub: ERPS sub-ring (G.8001-2016, clause 3.2.66)
InterSub: ERPS sub-ring on an interconnection node (G.8001-2016, clause 3.2.66)
VC: Shows if a Virtual Channel with a sub-ring is in use.
Interconnect Instance: For a sub-ring on an interconnection node, this must reference the instance ID of the ring
to which this sub-ring is connected.
Interconnect Prop: Shows whether the ring referenced by Interconnect Instance will propagate R-APS flush
PDUs whenever this sub-ring's topology changes.
Port0/Port1 Interface: Interface index of ring protection Port0/Port1.
Port0/Port1 SF: Selects whether Signal Fail (SF) comes from the link state of a given interface, or from a Down-
MEP. Possible values:
MEP: SF comes from Down-MEP
Link: SF comes from a Link state
